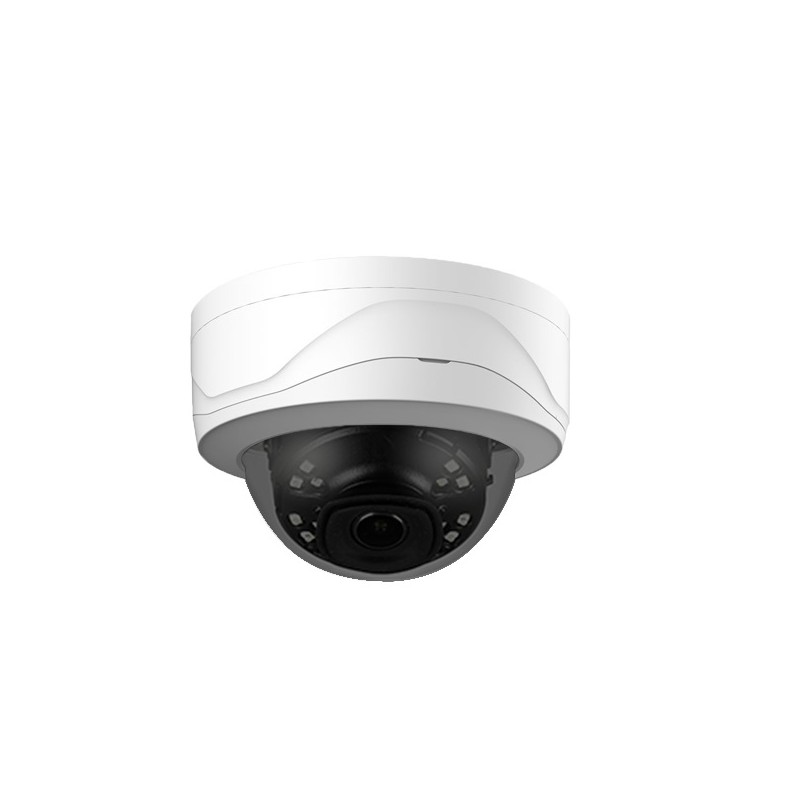

XVI-MD182E-IR 4K HDCVI IR DOME CAMERA

SKU: XVI-MD182E-IR 2.8MM

4K HDCVI IR DOME CAMERA

18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 120dB true WDR, 3D NR
  • Max. 4K resolution
  • CVI/CVBS/AHD/TVI switchable
  • Fixed lens 2.8mm
  • Max. IR length 30m, smart IR
  • IP67, IK10, 12V±30% DC

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

1/2.7" CMOS

Camera Style

Effective Pixels

3840(H)×2160(V)

Shutter Speed

PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s

Minimum Illumination

0.03 Lux/F2.0

,

30 IRE

,

0 Lux IR on

IR Distance

30 m

Pan/Tilt/Rotation Range

Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°

Lens Type

Lens Mount

M12

Focal Length

2.8mm; 3.6mm

Angle of View

2.8mm: 125°×105°×56° (diagonal×horizontal×vertical) 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical)

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

WDR

120 dB

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

12VDC ±30%

Power Consumption

Max 4.8W (12V DC, IR on)

Protection Grade

IP67; IK10

Casing

Metal throughout the whole casing

Dimension

Φ109.9mm×81.0mm (Φ4.33"×3.19")

Net Weight

0.32kg (0.71lb)

Gross Weight

0.46kg (1.01lb)
