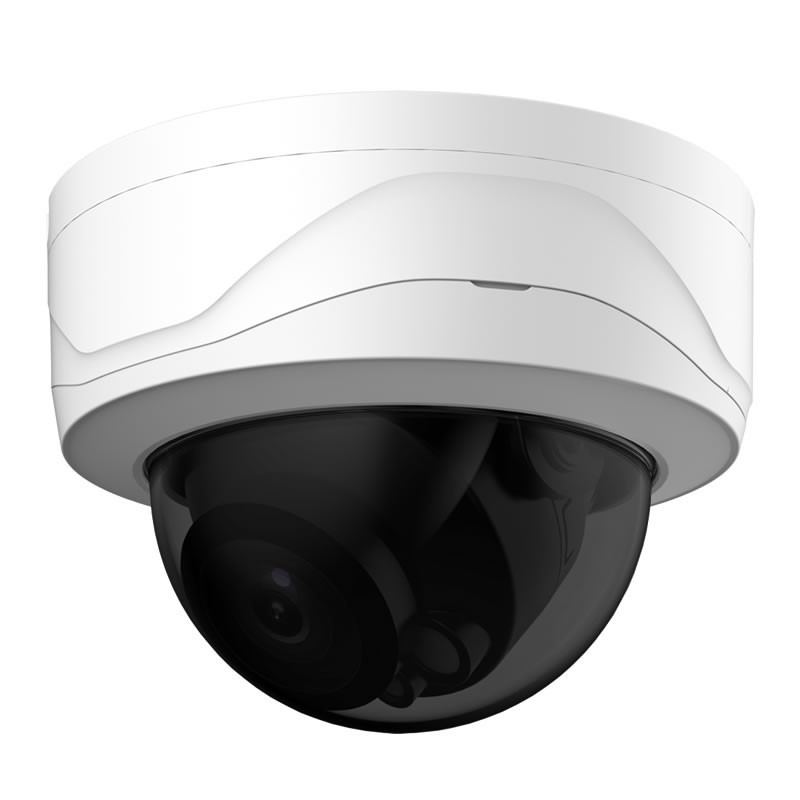

XVI-VD182R-IR-Z 4K HDCVI IR Motorized Dome Camera
Click to enlarge

XVI-VD182R-IR-Z 4K HDCVI IR Motorized Dome Camera

SKU: XVI-VD182R-IR-Z

4K HDCVI IR Motorized Dome Camera

Add to wishlist
Add to compare
15 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 120dB true WDR, 3D NR
  • Max. 4K resolution
  • CVI/CVBS/AHD/TVI switchable
  • 2.7-13.5mm motorized lens
  • Max. IR length 30m, smart IR
  • P67, IK10, 12V±30% DC

Download

Product Manual

No related firmware found.
Additional information
Camera Style

Image Sensor

1/2.7" CMOS

Effective Pixels

3840(H)×2160(V)

Shutter Speed

PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s

Minimum Illumination

0.03 Lux/F1.7

,

30IRE

,

0 Lux IR on

IR Distance

30 m

Pan/Tilt/Rotation Range

Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355°

Lens Type

Lens Mount

Φ14

Focal Length

2.7mm–13.5mm

Max. Aperture

F1.7

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

WDR

120 dB

Digital Noise Reduction

2D/3D DNR

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

12VDC ±30%

Power Consumption

Max 6.9W (12V DC, IR on)

Protection

IK10

,

IP67

Casing

Metal throughout the whole casing

Dimensions

Φ122mm×88.9mm (Φ4.80"×3.50")

Net Weight

0.44 kg (0.97 lb)

Gross Weight

0.6 kg (1.32 lb)
