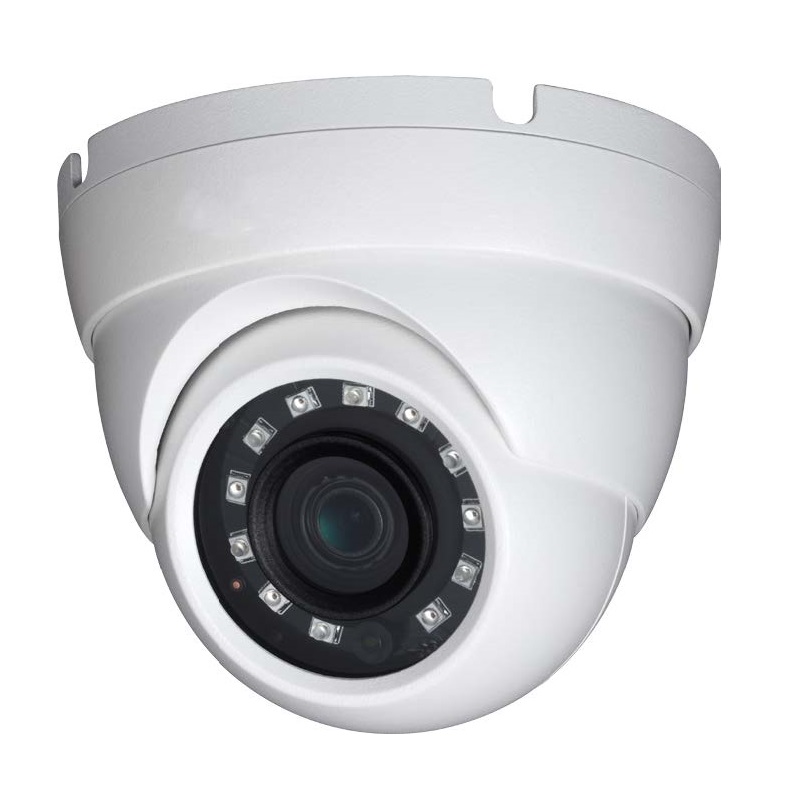

XVI-EB182M-IR 4K HDCVI IR EYEBALL CAMERA
Click to enlarge

XVI-EB182M-IR 4K HDCVI IR EYEBALL CAMERA

SKU: XVI-EB182M-IR 2.8MM

4K HDCVI IR EYEBALL CAMERA

Add to wishlist
Add to compare
20 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 120dB True WDR, 3DNR
  • Max. 4K resolution
  • CVI/CVBS/AHD/TVI switchable
  • Fixed lens 2.8mm
  • Max. IR length 30m, Smart IR
  • IP67, 12V±30%DC

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

1/2.7" CMOS

Effective Pixels

3840(H)×2160(V)

Shutter Speed

PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s

Minimum Illumination

0.03 Lux/F2.0

,

30 IRE

,

0 Lux IR on

IR Distance

30 m

Pan/Tilt/Rotation Range

Pan: 0°-360°; Tilt: 0°-78°; Rotation: 0°-360°

Lens Type

Lens Mount

M12

Focal Length

2.8mm

Max. Aperture

F2.0

Angle of View

2.8mm: 125°×105°×56° (diagonal×horizontal×vertical)

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

WDR

120 dB

Lens Size

Camera Style

Digital Noise Reduction

2D/3D DNR

Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio

Power

12VDC ±30%

Power Consumption

Max 4.9W (12V DC, IR on)

Protection

IP67

Casing

Metal throughout the whole casing

Dimensions

Φ93.4mm×79.4mm (3.68”×3.13”)

Net Weight

300g (0.66lb)

Gross Weight

380g (0.84lb)
