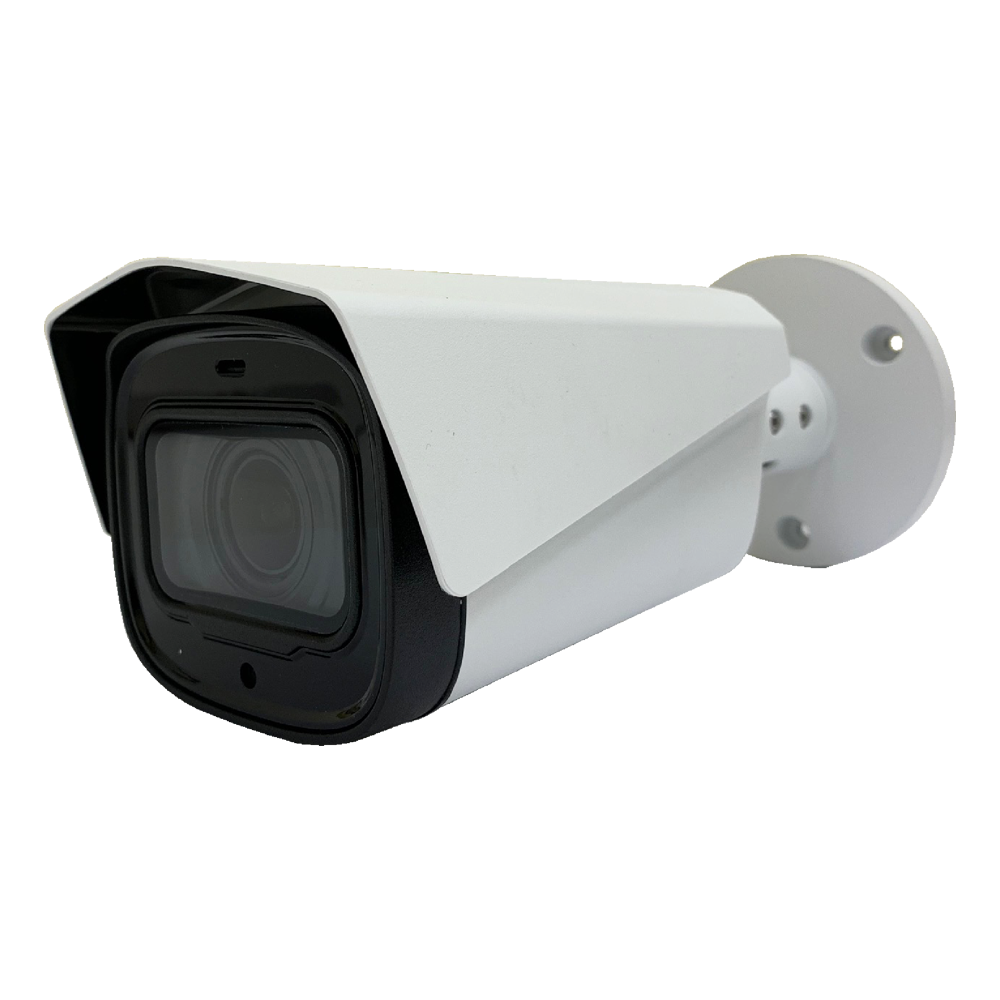

XVI-BU182R-IR-Z 4K HDCVI Smart IR Motorized Bullet Camera
Click to enlarge

XVI-BU182R-IR-Z 4K HDCVI Smart IR Motorized Bullet Camera

SKU: XVI-BU182R-IR-Z

4K HDCVI Smart IR Motorized Bullet Camera

Add to wishlist
Add to compare
20 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Max. 4K resolution
  • CVI/CVBS/AHD/TVI switchable
  • Auto focus, 2.7-13.5mm motorized lens
  • Built-in mic (-A)
  • Max. IR length 60m, smart IR
  • IP67, 12V ±30% DC
  • 120dB true WDR, 3D NR

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

1/2.7" CMOS

Camera Style

Effective Pixels

3840(H)×2160(V)

Shutter Speed

PAL: 1/3s–1/100000s NTSC: 1/4s–1/100000s

Minimum Illumination

0.03 Lux/F1.7

,

30IRE

,

0 Lux IR on

Lens Size

IR Distance

60 m

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens Type

Lens Mount

Φ14

Focal Length

2.7mm–13.5mm

Max. Aperture

F1.7

Angle of View

Horizontal: 105°–33° Vertical: 56°–18° Diagonal: 126°–38°

Resolution

4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480)

Digital Noise Reduction

2D/3D DNR

Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Audio Port

One channel built-in mic (-A)

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio

Power

12VDC ±30%

Power Consumption

Max 11W (12V DC, IR on)

Protection

IP67

Casing

Metal throughout the whole casing

Dimensions

209.9mm×90.4mm×90.4mm (8.26"×3.56"×3.56")

Net Weight

0.55kg (1.21lb)

Gross Weight

0.7kg (1.54lb)
