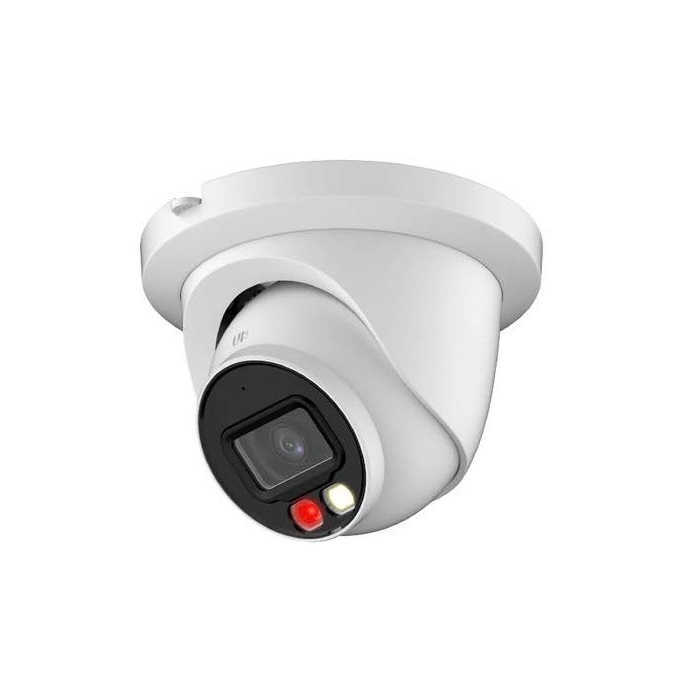

XVI-EB182T-DLM 4K SMART DUAL LIGHT HDCVI FIXED-FOCAL EYEBALL CAMERA

Name: XVI-EB182T-DLM 4K SMART DUAL LIGHT HDCVI FIXED-FOCAL EYEBALL CAMERA
SKU: XVI-EB182T-DLM-2.8

SKU: XVI-EB182T-DLM-2.8

4K SMART DUAL LIGHT HDCVI FIXED-FOCAL EYEBALL CAMERA

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

No related firmware found.

Additional information

Image Sensor	4K CMOS
Max. Resolution	3840 × 2160
Scanning System	Progressive
Camera Style	Eyeball
Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination	0.01 lux@F2.0 (Color, 30 IRE) ; 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
Illumination Distance	IR: 40 m (131.23 ft); Warm light: 40 m (131.23 ft)
Pan/Tilt/Rotation Range	Pan: 0°–360° ; Tilt: 0°–78°; Rotation: 0°–360°
Digital Noise Reduction	3D DNR
Lens Mount	M12
Focal Length	2.8 mm; 3.6 mm
Max. Aperture	F2.0
Field of View	2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 88°; V: 46°; D: 105°
Resolution	4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
WDR	120 dB
Certifications	CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio	Built-in Mic
Power	12VDC ±30%
Lens Type	Fixed Lens
Power Consumption	Max 5.7 W (12 VDC, LED on)
Protection	IP67
Casing Material	Metal
Product Dimensions	φ106.0 mm × 99.2 mm (φ4.17" × 3.91")
Net Weight	0.47 kg (1.04 lb)
Gross Weight	0.69 kg (1.52 lb)
