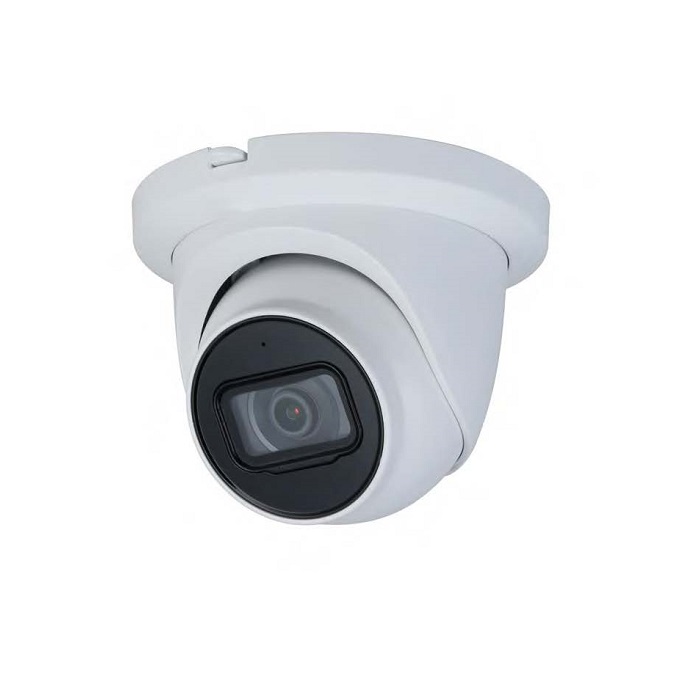

IPC-EB284TM-IR 8MP LITE IR FIXED-FOCAL EYEBALL NETWORK CAMERA

SKU: IPC-EB284TM-IR 2.8MM

8MP LITE IR FIXED-FOCAL EYEBALL NETWORK CAMERA

19 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

8MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition
Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power support
IP67 protection

Product Manual

No related firmware found.

Additional information

Camera Resolutions	8 MP
Image Sensor	1/2.7" Progressive Scan CMOS
Lens Mount	M12
Effective Pixels	3840(H)×2160(V)
ROM/ RAM	128 MB/256 MB
Scanning System	Progressive
Lens Type	Fixed Lens
Camera Style	Eyeball
Shutter Speed	1/3 s to 1/100 , 000 s , Auto/Manual
Minimum Illumination	0.009 Lux@F2.0
IR Distance	30 m
Pan/Tilt/Rotation Range	Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Video Bit Rate	H.264: 32 Kbps–8192 Kbps; H.265: 12 Kbps–8192 Kbps
Digital Noise Reduction	3D DNR
Focal Length	2.8 mm
Max. Aperture	F2.0
Field of View	2.8 mm: Pan 105° × Tilt 56° × Diagonal 125°
Edge Storage	Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Video Compression	H.265; H.264; H.264B; MJPEG
Audio	Built-in Mic
Power	12V DC/PoE (802.3af)
Power Consumption	< 7.2 W
Protection	IP67
Casing	Metal
Dimensions	100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
Net Weight	0.48 kg (1.1 lb)
Gross Weight	0.65 kg (1.4 lb)
