AR524-24 24 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
Login to see prices SKU: AR524-24
| Video compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Case | |
| Analog video input | 24-ch BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| Channels | |
| HDTVI input | 4 MP ,3 MP ,1080p25 ,1080p30 ,720p25 ,720p30 ,720p50 ,720p60 Note: The 3 MP signal input is only available for channel 1/2/3/4. |
| AHD input | 4 MP ,1080p25 ,1080p30 ,720p25 ,720p30 |
| IP Video Input | 8-ch |
| Encoding resolution | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 16-ch |
| HDD Support | |
| Capacity | Up to 8 TB capacity for each disk |
| Power | 100 to 240 VAC |
| Consumption (without HDD) | ≤ 45 W |
| Dimensions | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
| Weight (without HDD) | ≤ 7 kg (15.4 lb) |
AR524-32 32 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
Login to see prices SKU: AR524-32
| Video compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Analog video input | 32-ch BNC interface(1.0Vp-p ,75Ω) ,supporting coaxitron connection |
| Case | |
| IP Video Input | 16-ch |
| Channels | |
| Audio compression | G.711u |
| Encoding resolution | When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 16-ch |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Power | 100 to 240 VAC |
| Consumption (without HDD) | ≤ 45 W |
| Dimensions | 440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch) |
| Weight (without HDD) | ≤ 7 kg (15.4 lb) |
AR536-32 32CH 8 MP 4 SATA TURBO HD DVR
Login to see prices SKU: AR536-32
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|---|---|
| Encoding Resolution | 8MP /3K /5MP /4MP /3MP /1080p /720p /WD1 /4CIF /VGA /CIF |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Channels | |
| Stream Type | Video ,Video&Audio |
| Audio Compression | G.711 u |
| IP Video Input | 32-ch |
| Analog Video Input | 32-ch BNC interface (1.0 Vp-p,75Ω),supporting coaxitron connection |
| Incoming / Outgoing Bandwidth | 320 Mbps/256 Mbps |
| HDTVI Input | 8 MP, 3 K, 5MP, 4 MP, 3 MP, 1080 p 25, 1080p 30, 720p 25, 720p 30, 720p 50, 720p 60 |
| AHD Input | 5 MP, 4 MP, 1080p 25, 1080p 30, 720p 25, 720p 30 |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| HDD Support | |
| Case | |
| Power | 100 to 240 VAC |
| Consumption | ≤55 W(without HDD) |
| Dimension(W×D×H) | 445×400×71 mm(17.5×15.7×2.8 inch) |
| Weight | ≤7 kg(without HDD,15.4 lb.) |
CVR804L-16 16 Channel 1080P 4HDD 1.5U HD-CVI DVR
Login to see prices SKU: CVR804L-16
| Channels | |
|---|---|
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Video Input | 16-ch |
| Display Interface | HDMI1(4K)，HDMI2( 1080P) ,1 VGA ,VIDEO OUT |
| Display Resolution | 3840×2160(HDMI1,)1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display Split | 1/4/8/9/16/25/36 |
| Recording Video Compression | H.264 |
| Recording Bit Rate | 32~8192Kb/s |
| Synchronous playback | 1/4/9/16ch |
| HDD Support | |
| Internal HDD | 4 SATA ports, up to 32TB, 1 eSATA |
| USB Interface | 3 ports (2 Rear USB3.0, 1 Front USB2.0) |
| RS232 | 1 port, For PC communication & Keyboard |
| RS485 | 1 port, For PTZ control |
| Case | |
| Power | 100 to 240 VAC |
| Power Consumption | ≤40W(without HDD) |
| Dimension(W×D×H) | 1.5U, 440mm×416mm×68mm |
| Weight | 6KG(without HDD) |
iNVR434HP6-32-4K 32 CHANNEL 1.5U 16POE 4HDDS WIZSENSE NETWORK VIDEO RECORDER
Login to see prices SKU: iNVR434HP6-32-4K
| Channels | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operation Interface | Web; local GUI |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| AI by Device | Face detection; face recognition; perimeter protection; SMD Plus |
| Video Output | 1-ch VGA output and 1-ch HDMI output; simultaneous/ heterogeneous video sources output for VGA and HDMI is configurable |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9 |
| Video | Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
| Audio | PCM; G.711A; G.711U; G.726 |
| Face Attributes | 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Face Database Capacity | Up to 10 face databases with 20 ,000 images |
| Record Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
| HDD Support | |
| HDD | 4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature |
| USB | 1 front USB 2.0 port, 1 rear USB 3.0 ports |
| Network Bandwidth | AI off: Access: 256 Mbps; Storage: 256 Mbps; Forward: 256 Mbps AI on: Access: 160 Mbps; Storage: 160 Mbps; Forward: 160 Mbps |
| Resolution | 16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Network | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
| Built-in PoE Ports | 16 |
| Power | 100 to 240 VAC |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W |
| Case | |
| Net Weight | 4.82 kg (13.77 lb) |
| Gross Weight | 7.09 kg (20.26 lb) |
| Product Dimensions | 440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") |
| Package Dimensions | 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 9.31") |
iXVR534L-32 32 Channel Penta-brid 5M-N/1080P 1.5U WizSense Digital Video Recorder
Login to see prices SKU: iXVR534L-32
| Channels | |
|---|---|
| Main Processor | Embedded Processor |
| Performance | 2 channels ,max 12 face pictures/sec processing 2 channels video stream face recognition ,only support analog camera |
| Database Application | Each database can be applied to video channels independently |
| Analog Camera Input | 32 channels ,BNC |
| HDCVI Camera Input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| IP Camera Input | 32 channels, each channel up to 8MP |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Record Rate | Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N /720P /960H / D1 /CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps) |
| Bit Rate | 32 Kbps–6144 Kbps Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Resolution | HDMI 1:3840×2160 ,1920×1080 ,1280×1024 ,1280×720 HDMI2/VGA: 1920×1080 ,1280×1024 ,1280×720 |
| Playback | 1/4/9/16 |
| Internal HDD | 4 SATA Ports, up to 10TB capacity for each disk |
| eSATA | 1 Port |
| USB/RS485/ RS232 | USB: 3 USB Ports (1 USB 2.0 , 2 USB 3.0) RS485: 1 Port, for PTZ Control RS232: 1 Port, for PC Communication & Keyboard |
| HDD Support | |
| Power | 100 to 240 VAC |
| Power Consumption (Without HDD) | <22W |
| Case | |
| Dimensions | 1.5U, 440 mm × 421 mm × 76 mm (17.32" × 16.54" × 2.99") |
| Net Weight (without HDD) | 4.8 kg (10.7 lb) |
| Gross Weight | 7.1 kg (15.6 lb) |
| Installation | Desktop/racket mounted |
| Certifications | FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 |
iXVR544L-32-4KL 32CH Penta-brid 4K Value/5MP 1.5U 4HDDs WizSense Digital Video
Login to see prices SKU: iXVR544L-32-4KL
| Main Processor | Industrial-grade processor |
|---|---|
| Analog Camera Input | 32 BNC ports ,supports HDCVI/AHD/TVI/CVBS auto detect |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Bit Rate | 64 kbps |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Audio Input | 4-channel BNC 32-channel BNC (Coaxial Audio) |
| eSATA | 1 |
| RS-232 | 1 port, for PC Communication & Keyboard |
| RS-485 | 1 port, for PTZ control |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| Channels | |
| Case | |
| Power | 100-240 VAC ,50/60 Hz |
| Power Consumption | <30 W (without HDD) |
| Gross Weight | 7.20 kg (15.88 lb) |
| Net Weight | 4.90 kg (10.81 lb) |
| Product Dimensions | 440.0 mm × 420.2 mm × 76.0 mm (17.32" × 16.54" × 2.99") (W × D × H) |
| Packaging Dimensions | 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 8.31") |
NR50P6-32 32 Channel 200M 1.5U 16 PoE Network Video Recorder
Login to see prices SKU: NR50P6-32
| Channels | |
|---|---|
| Case | |
| Built-in PoE Ports | 16 |
| Video Compression | H.264 |
| IP Video Input | 32 ch IPC with Integrated 16 port 802.3af PoE Switch (160Mbps incoming Bandwidth) |
| Video Output | 1 HDMI ,1 VGA ,1 BNC |
| Network Interface | 1 ,RJ45 10M/100M/1000M adaptive Ethernet Interface |
| PoE Network Interfaces/Built-in switch | 16 independent 100 Mbps PoE network interfaces |
| Internal SATA | 4 SATA interfaces (up to 6TB each) |
| eSATA | 1 eSATA |
| USB interface | 3 ,USB2.0 |
| Chassis | 19-inch rack-mounted 2U |
| Dimensions (W × D × H) | 17.5 × 15.4 × 2.75 inch |
| Power Supply | 100 ~ 240VAC ,6.3A |
| Weight | ≤ 8.82 lbs (without hard disk) |
NR520-32 Embedded M Series 8K 32-Channel Network Video Recorder
Login to see prices SKU: NR520-32
| IP Video Input | 32-ch |
|---|---|
| Incoming Bandwidth | 320 Mbps |
| Channels | |
| Outgoing Bandwidth | 400 Mbps |
| HDD Support | |
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| Remote Connection | 128 |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
| Auxiliary Interface Capacity | Up to 14 TB capacity for each disk |
| Case | |
| Power | 100 to 240 VAC |
| Consumption | ≤ 15 W (without HDD) |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension (W × D × H) | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
NR52P24-32 32-ch 4HDDs 1.5U 24 PoE 8K AcuSense Network Video Recorder
Login to see prices SKU: NR52P24-32
| IP Video Input | 32-ch |
|---|---|
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| HDD Support | |
| Capacity | Up to 14 TB capacity for each HDD |
| Power | 100 to 240 VAC ,50 to 60Hz |
| Consumption | ≤15 W (without HDD and PoE off) |
| Dimension(W×D×H) | 445×400×75 mm(17.5"×15.7"×3.0") |
| Incoming/Outgoing Bandwidth | 320 Mbps/400 Mbps |
| Channels | |
| Built-in PoE Ports | 24 |
| Case |
NR52P6-16 16-ch 1.5U 16 PoE 8K AcuSense NVR
Login to see prices SKU: NR52P6-16
| Incoming Bandwidth | 256Mbps |
|---|---|
| Channels | |
| Built-in PoE Ports | 16 |
| Case | |
| Outgoing Bandwidth | 256 Mbps |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080 p/ UXGA/720 p/VGA /4 CIF/DCIF/2CIF/CIF/QCIF *:After ultra HD resolution mode is enabled ,the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| IP Video Input | 16-ch |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| HDD Support | |
| Capacity | Up to 16 TB capacity for each disk |
| Power | 100 to 240 VAC ,50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension | 445 × 400 ×75 mm(17.5"×15.7" × 3.0") |
| Weight | ≤ 5 kg(without HDD, 11 lb.) |
NR52P6-32 32-ch 1.5U 4 HDDs 16 PoE 8K AcuSense Network Video Recorder
Login to see prices SKU: NR52P6-32
| IP Video Input | 32-ch |
|---|---|
| Channels | |
| Case | |
| HDD Support | |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080 p/ UXGA/ 720 p/VGA / 4 CIF / DCIF/ 2 CIF/CIF/QCIF *: After ultra HD resolution mode is enabled ,the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Synchronous Playback | 16-ch |
| Capacity | Up to 16 TB capacity for each disk |
| Power | 100 to 240 VAC ,50 to 60 Hz |
| Consumption | ≤ 15 W (without HDD and PoE off) |
| Dimension | 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight | ≤ 5 kg (without HDD, 11 lb.) |
NVR304-16B-P16-IQ 4 HDDs 16-ch 16 PoE 1.5U Network Video Recorder
Login to see prices SKU: NVR304-16B-P16-IQ
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,10 x 1080P@30 ,16 x 720P@30 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 369mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR304-32B-P16-IQ 4 HDDs 32-ch 16 PoE 1.5U Network Video Recorder
Login to see prices SKU: NVR304-32B-P16-IQ
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,10 x 1080P@30 ,20 x 720P@30 ,32 x D1 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 ,16 x 720P@30 ,32 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 369mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

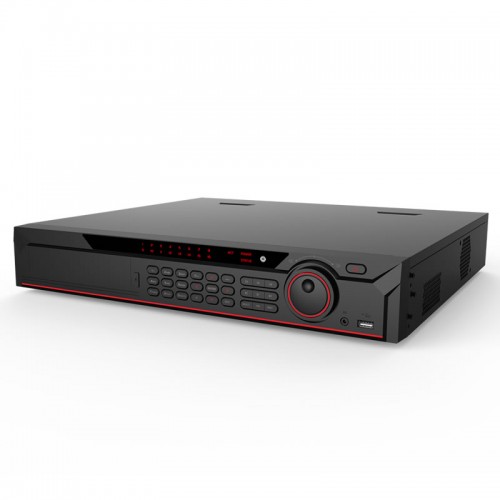

NVR424H-32-4K 32 CHANNEL 1.5U 4K&H.265 LITE NETWORK VIDEO RECORDER
Login to see prices SKU: NVR424H-32-4K
| Main Processor | Quad-core embedded processor |
|---|---|
| Operating System | Embedded LINUX |
| IP Camera Input | 32 Channel |
| Two-way Talk | 1 Channel Input ,1 Channel Output ,RCA |
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps |
| Multi-screen Display | 32CH: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Channels | |
| Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD |
| USB | 2 ports(1 USB2.0, 1 USB3.0) |
| RS232/ RS485 | 1 Port ,for PC Communication and Keyboard/ 1 Port ,for PTZ Control |
| Compression | H.265/ H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Record Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Playback | 1/4/9/16 |
| HDD Support | |
| Power | 100 to 240 VAC |
| Power Consumption | < 11.7W(without HDD) |
| Dimensions | 1.5U, 440mm×411.1mm×76mm(17.3" x 16.2" x 3.0") |
| Case | |
| Net Weight | 4.5kg (9.9 lb) (without HDD) |
| Gross Weight | 7kg(15.4 lb)(without HDD) |
| CE/ FCC/ UL | CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL60950-1 |
NVR424HP6-16-4K 16 CH 1.5U 4K 16PoE 4HDD H.265 Network Video Recorder
Login to see prices SKU: NVR424HP6-16-4K
| Channels | |
|---|---|
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 Channel |
| Two-way Talk | 1 Channel Input ,1 Channel Output ,RCA |
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps |
| Multi-screen Display | 16CH: 1/4/8/9/16 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Interface Network | 1 RJ-45 Port (10/100/1000Mbps) |
| Built-in PoE Ports | 16 |
| HDD Support | |
| Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD |
| Compression | H.265/ H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Recorde Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| USB | 2 ports(1 USB2.0, 1 USB3.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Playback | 1/4/9/16 |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: <13.7W (Without HDD) PoE: Max 25.5w for single port, 150w in total |
| Case | |
| Dimensions | 1.5U, 440mm×411.1mm×76mm(17.3" x 16.2" x 3.0") |
| Net Weight | 4.7kg (10.4lb) (without HDD) |
| Gross Weight | 7.5kg(16.5 lb)(without HDD) |
NVR504-16B-P16 4 HDDs 16-ch 16 PoE 1.5U Network Video Recorder
Login to see prices SKU: NVR504-16B-P16
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,6 x 5MP@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 ,6 x 4MP@30 ,8 x 3MP@30 ,14 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100 to 240 V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 20W |
| Weight (without HDD) | ≤ 4Kg (8.82lb) |
| Dimensions | 400mm × 368mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR504-16B-P16-IQ 4 HDDs 16-ch 16 PoE 1.5U Network Video Recorder
Login to see prices SKU: NVR504-16B-P16-IQ
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 16 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 ,8 x 4MP@30 ,10 x 3MP@30 ,16 x 1080P@30 Smart On：2 x 12MP@30 ,2 x 4K@30 ,6 x 4MP@30 ,8 x 3MP@30 ,12 x 1080P@30 ,16 x 720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width ,For VGA/HDMI independent output ,the VGA live video is output by default. To output the highest resolution video from the HDMI port ,please clear the VGA video on the preview page. |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | AC 100~240V |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 150 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 4Kg (8.8lb) |
| Dimensions | 400mm × 368mm × 74mm (15.7"×14.5"×2.9") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
