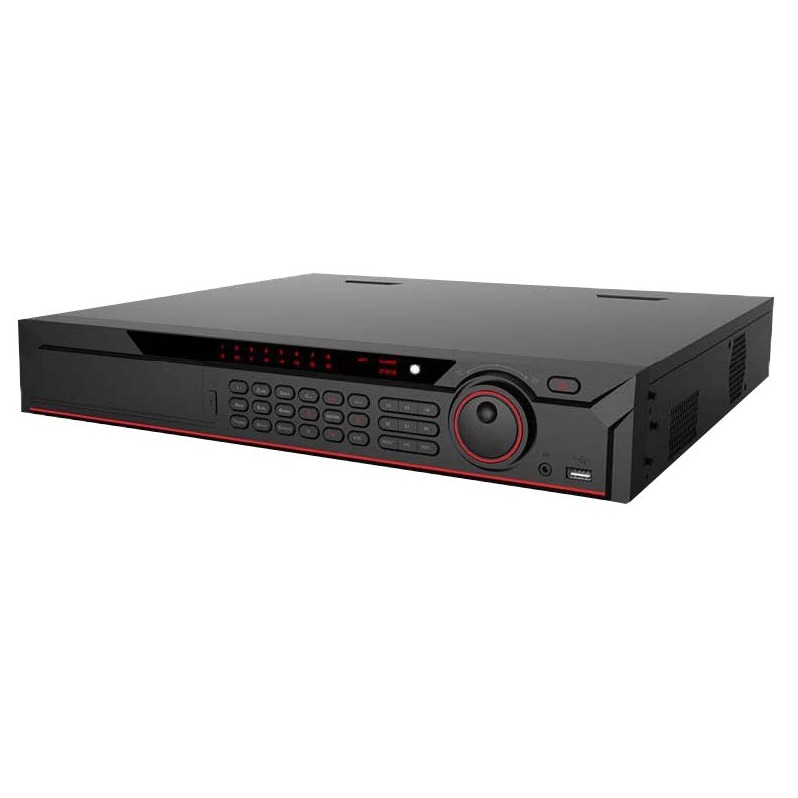

iXVR544L-32-4KL 32CH Penta-brid 4K Value/5MP 1.5U 4HDDs WizSense Digital Video

Name: iXVR544L-32-4KL 32CH Penta-brid 4K Value/5MP 1.5U 4HDDs WizSense Digital Video
SKU: iXVR544L-32-4KL

SKU: iXVR544L-32-4KL

32CH Penta-brid 4K Value/5MP 1.5U 4HDDs WizSense Digital Video

19 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

H.265+/H.265 dual-stream video compression
Supports 32-channel AI-Coding
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 32 channels IP camera inputs, each channel up to 12MP; Max 128 Mbps incoming bandwidth
Up to 12 channels video stream (analog channel) perimeter protection
Up to 32 channels video stream (analog channel) SMD plus
Up to 6 channels video stream (analog channel) human face recognition
IoT & POS functionalities

Product Manual

No related firmware found.

Additional information

Main Processor	Industrial-grade processor
Analog Camera Input	32 BNC ports , supports HDCVI/AHD/TVI/CVBS auto detect
Video Bit Rate	32 kbps–6144 kbps
Audio Bit Rate	64 kbps
Network Port	1 (10/100/1000 Mbps Ethernet port, RJ-45)
Multi-screen Display	1/4/8/9/16/25/36
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Samsung
Video Compression	AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Record Mode	General, motion detection; intelligent; alarm; POS
Intelligent Alarm	Face detection; face recognition; perimeter protection
Audio Input	4-channel BNC 32-channel BNC (Coaxial Audio)
eSATA	1
RS-232	1 port, for PC Communication & Keyboard
RS-485	1 port, for PTZ control
USB	3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)
Channels	32 Channel
Case	1.5U
Power	100-240 VAC , 50/60 Hz
Power Consumption	<30 W (without HDD)
Gross Weight	7.20 kg (15.88 lb)
Net Weight	4.90 kg (10.81 lb)
Product Dimensions	440.0 mm × 420.2 mm × 76.0 mm (17.32" × 16.54" × 2.99") (W × D × H)
Packaging Dimensions	529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 8.31")
