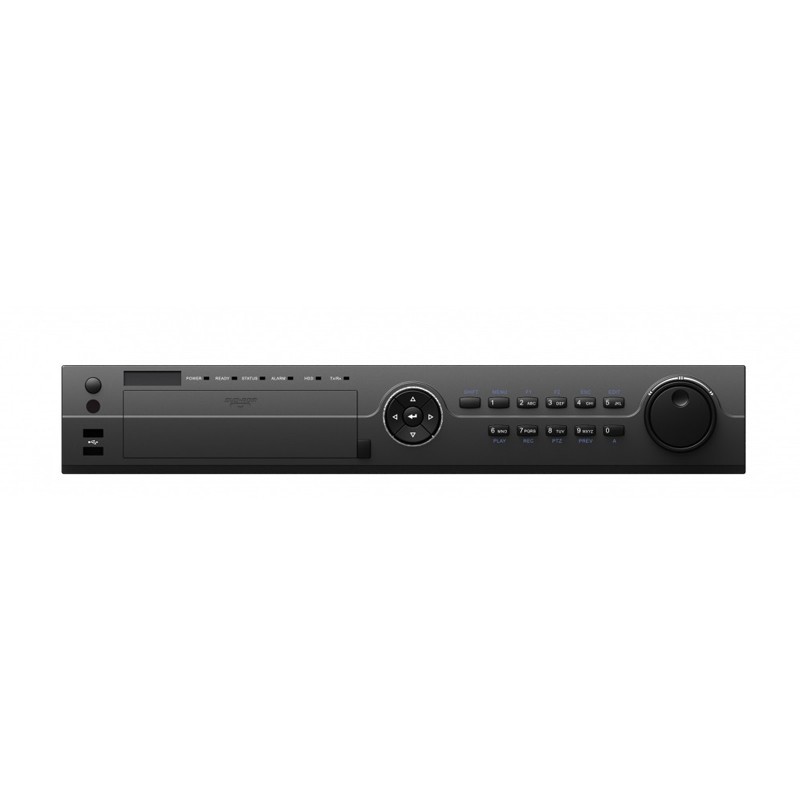

AR524-24 24 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR

Name: AR524-24 24 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR
SKU: AR524-24

SKU: AR524-24

24 Channel H.265+ 4MP Lite 1.5U 4HDD TVI Tribrid DVR

Add to wishlist

Add to compare

11 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Appearance Design
Typical chassis design to guarantee the low noise and environmental protection of the device
Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain
Video Input and Transmission
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Up to 6 MP IP cameras input
Long distance transmission over UTP and coaxial cable
Compression and Recording
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
Supports 4 MP lite
Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
Supports POS triggered recording and POS information overlay
Video Output
Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 ×2160) resolution
Separate CVBS output
Storage and Playback
Four SATA interfaces (up to 8 TB capacity per HDD) and 1 eSATA interface
16-ch synchronous playback
Smart search for efficient playback
Supports playback by main stream, or sub-stream for IP cameras
Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Supports 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection
VQD (Video Quality Diagnostics)
Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
One RJ45 10M/100M/1000M Ethernet network interface
Output bandwidth limit configurable

Download

Product Manual

AR524-24.pdf

No related firmware found.

Additional information

Video compression	H.265+/H.265/H.264+/H.264
Case	1.5U
Analog video input	24-ch BNC interface(1.0Vp-p , 75Ω) , supporting coaxitron connection
Channels	24 Channel
HDTVI input	4 MP , 3 MP , 1080p25 , 1080p30 , 720p25 , 720p30 , 720p50 , 720p60 Note: The 3 MP signal input is only available for channel 1/2/3/4.
AHD input	4 MP , 1080p25 , 1080p30 , 720p25 , 720p30
IP Video Input	8-ch
Encoding resolution	When 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Video Bit Rate	32 Kbps to 6 Mbps
Audio bit rate	64 Kbps
Synchronous playback	16-ch
HDD Support	4 HDD
Capacity	Up to 8 TB capacity for each disk
Power	100 to 240 VAC
Consumption (without HDD)	≤ 45 W
Dimensions	440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)
Weight (without HDD)	≤ 7 kg (15.4 lb)
