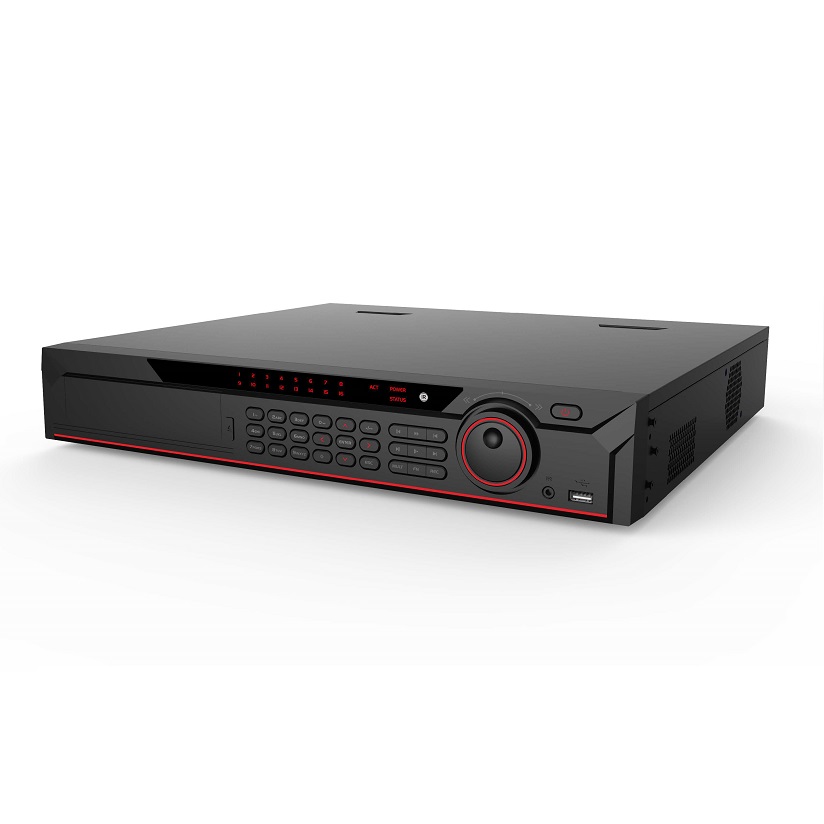

iXVR534L-32 32 Channel Penta-brid 5M-N/1080P 1.5U WizSense Digital Video Recorder

SKU: iXVR534L-32

32 Channel Penta-brid 5M-N/1080P 1.5U WizSense Digital Video Recorder

12 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
Up to 2 channels video stream (analog channel) perimeter protection
Up to 16 channels video stream (analog channel) SMD plus
Up to 2 channels video stream (analog channel) human face recognition
IoT & POS functionalities

Product Manual

No related firmware found.

Additional information

Channels	32 Channel
Main Processor	Embedded Processor
Performance	2 channels , max 12 face pictures/sec processing 2 channels video stream face recognition , only support analog camera
Database Application	Each database can be applied to video channels independently
Analog Camera Input	32 channels , BNC
HDCVI Camera Input	5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input	32 channels, each channel up to 8MP
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Record Rate	Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N /720P /960H / D1 /CIF (1fps–25/30fps) Sub stream: D1/CIF (1fps–15fps)
Bit Rate	32 Kbps–6144 Kbps Per Channel
Audio Bit Rate	64Kbps Per Channel
Resolution	HDMI 1:3840×2160 , 1920×1080 , 1280×1024 , 1280×720 HDMI2/VGA: 1920×1080 , 1280×1024 , 1280×720
Playback	1/4/9/16
Internal HDD	4 SATA Ports, up to 10TB capacity for each disk
eSATA	1 Port
USB/RS485/ RS232	USB: 3 USB Ports (1 USB 2.0 , 2 USB 3.0) RS485: 1 Port, for PTZ Control RS232: 1 Port, for PC Communication & Keyboard
HDD Support	4 HDD
Power	100 to 240 VAC
Power Consumption (Without HDD)	<22W
Case	1.5U
Dimensions	1.5U, 440 mm × 421 mm × 76 mm (17.32" × 16.54" × 2.99")
Net Weight (without HDD)	4.8 kg (10.7 lb)
Gross Weight	7.1 kg (15.6 lb)
Installation	Desktop/racket mounted
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
