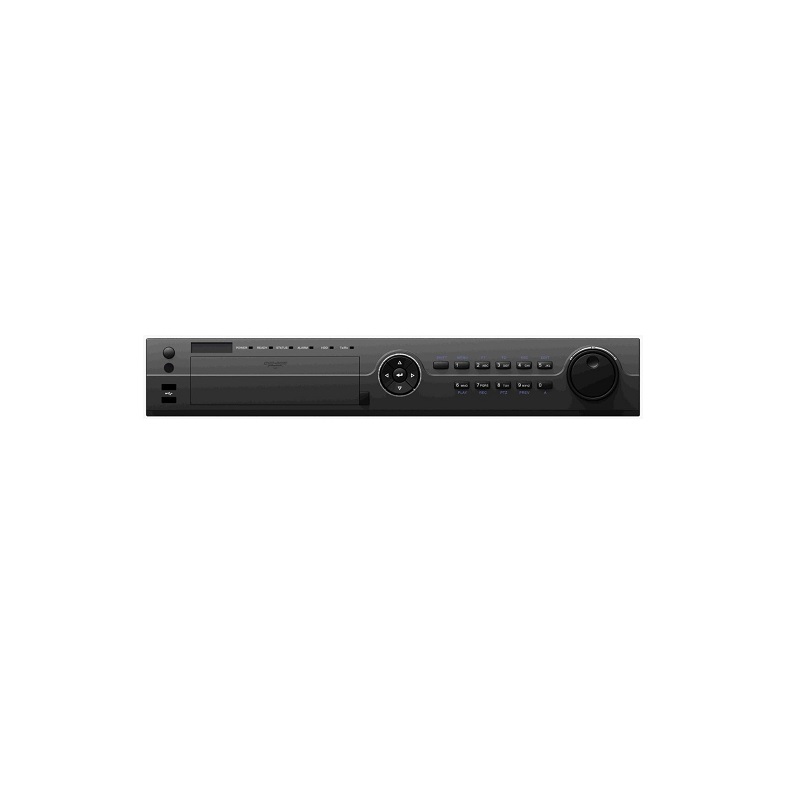

AR536-32 32CH 8 MP 4 SATA TURBO HD DVR

Name: AR536-32 32CH 8 MP 4 SATA TURBO HD DVR
SKU: AR536-32

SKU: AR536-32

32CH 8 MP 4 SATA TURBO HD DVR

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Up to 32-ch analog camera inputs and 4 SATA interfaces
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 64-ch network camera inputs
POS triggered recording and POS information overlay
RAID 0, 1, 5, 6, 10 for even more reliable data storage, effectively avoids data loss risks

Product Manual

Title	Description	Download
AR53X	V4.50.200	AR_K21B1S_V4.50.200_230627

Additional information

Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8MP /3K /5MP /4MP /3MP /1080p /720p /WD1 /4CIF /VGA /CIF
Video Bit Rate	32 Kbps to 10 Mbps
Channels	32 Channel
Stream Type	Video , Video&Audio
Audio Compression	G.711 u
IP Video Input	32-ch
Analog Video Input	32-ch BNC interface (1.0 Vp-p,75Ω),supporting coaxitron connection
Incoming / Outgoing Bandwidth	320 Mbps/256 Mbps
HDTVI Input	8 MP, 3 K, 5MP, 4 MP, 3 MP, 1080 p 25, 1080p 30, 720p 25, 720p 30, 720p 50, 720p 60
AHD Input	5 MP, 4 MP, 1080p 25, 1080p 30, 720p 25, 720p 30
Synchronous Playback	16-ch
Remote Connection	128
HDD Support	4 HDD
Case	1.5U
Power	100 to 240 VAC
Consumption	≤55 W(without HDD)
Dimension(W×D×H)	445×400×71 mm(17.5×15.7×2.8 inch)
Weight	≤7 kg(without HDD,15.4 lb.)
