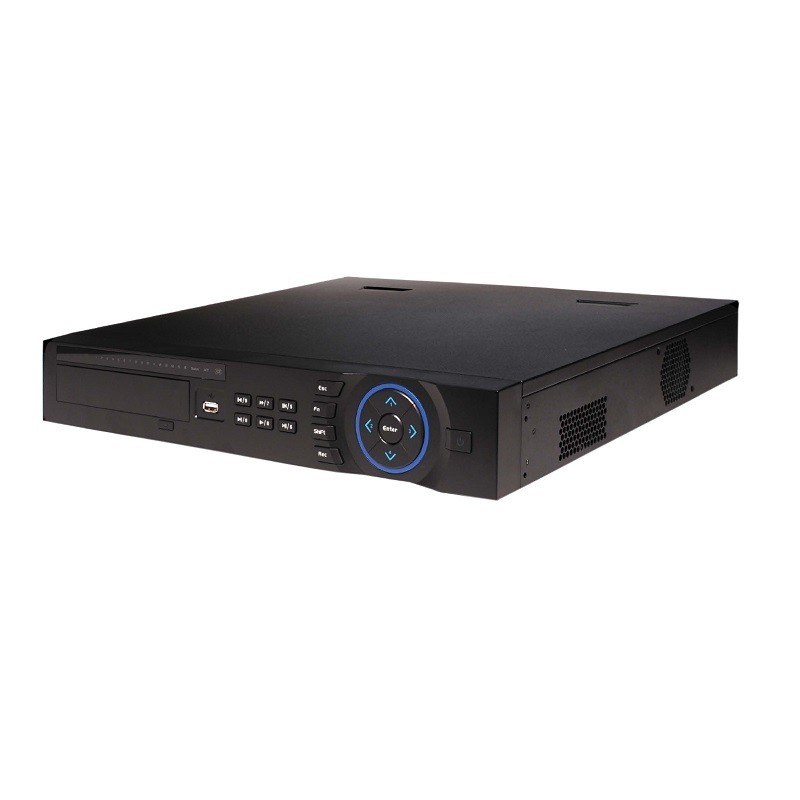

CVR804L-16 16 Channel 1080P 4HDD 1.5U HD-CVI DVR

SKU: CVR804L-16

16 Channel 1080P 4HDD 1.5U HD-CVI DVR

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support HDCVI/AHD/Analog/IP Video input
H.264 dual-stream video compression
All channel 1080P realtime recording
HDMI 1/VGA simultaneous video output,HDMI2/VGA(HDMI1) independent video output
16 channel synchronous realtime playback, GRID interface & smart search
Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon,
CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and
etc.
ONVIF Version 2.4.1 conformance
3D intelligent positioning with Dahua PTZ dome camera
Support 4 SATA HDDs up to 32TB,3 USB(1 USB3.0)
Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Advanced intelligent functions: Tripwire, Intrusion, Abandoned/Missing, Scene Change, Face
Detection, People Counting, Smart Tracking

Product Manual

No related firmware found.

Additional information

Channels	16 Channel
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Video Input	16-ch
Display Interface	HDMI1(4K)，HDMI2( 1080P) , 1 VGA , VIDEO OUT
Display Resolution	3840×2160(HDMI1,)1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4/8/9/16/25/36
Recording Video Compression	H.264
Recording Bit Rate	32~8192Kb/s
Synchronous playback	1/4/9/16ch
HDD Support	4 HDD
Internal HDD	4 SATA ports, up to 32TB, 1 eSATA
USB Interface	3 ports (2 Rear USB3.0, 1 Front USB2.0)
RS232	1 port, For PC communication & Keyboard
RS485	1 port, For PTZ control
Case	1.5U
Power	100 to 240 VAC
Power Consumption	≤40W(without HDD)
Dimension(W×D×H)	1.5U, 440mm×416mm×68mm
Weight	6KG(without HDD)
