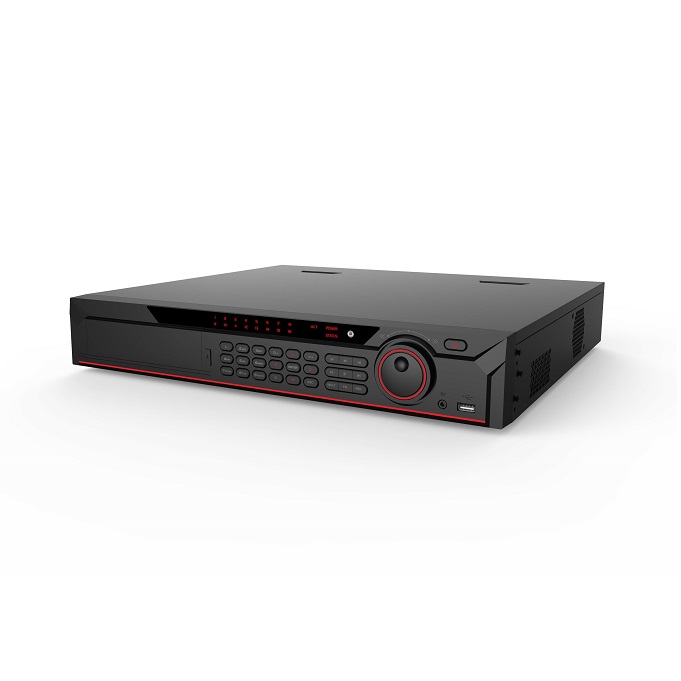

iNVR434HP6-32-4K 32 CHANNEL 1.5U 16POE 4HDDS WIZSENSE NETWORK VIDEO RECORDER

Name: iNVR434HP6-32-4K 32 CHANNEL 1.5U 16POE 4HDDS WIZSENSE NETWORK VIDEO RECORDER
SKU: iNVR434HP6-32-4K

SKU: iNVR434HP6-32-4K

32 CHANNEL 1.5U 16POE 4HDDS WIZSENSE NETWORK VIDEO RECORDER

Add to wishlist

Add to compare

17 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
Access, storage or forwarding at 256 Mbps (160 Mbps when AI function enabled)
Max. decoding capability: 10 × 1080p@30 fps. Supports adaptive decoding
AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
Support IPC UPnP, 16PoE ports
Security baseline 2.1

Download

Product Manual

iNVR434HP6-32-4K.pdf

No related firmware found.

Additional information

Channels	32 Channel
Main Processor	Industrial-grade processor
Operating System	Embedded LINUX
Operation Interface	Web; local GUI
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
AI by Device	Face detection; face recognition; perimeter protection; SMD Plus
Video Output	1-ch VGA output and 1-ch HDMI output; simultaneous/ heterogeneous video sources output for VGA and HDMI is configurable
Multi-screen Display	1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9
Video	Smart H.265+; Smart H.264+; H.265; H.264; MJPEG
Audio	PCM; G.711A; G.711U; G.726
Face Attributes	6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Database Capacity	Up to 10 face databases with 20 , 000 images
Record Mode	Manual; schedule (general; MD; alarm; MD & alarm; intelligent)
HDD Support	4 HDD
HDD	4 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature
USB	1 front USB 2.0 port, 1 rear USB 3.0 ports
Network Bandwidth	AI off: Access: 256 Mbps; Storage: 256 Mbps; Forward: 256 Mbps AI on: Access: 160 Mbps; Storage: 160 Mbps; Forward: 160 Mbps
Resolution	16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1
Network	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
Built-in PoE Ports	16
Power	100 to 240 VAC
Power Consumption	Total output of NVR is ≤ 10 W (without HDD) Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W
Case	1.5U
Net Weight	4.82 kg (13.77 lb)
Gross Weight	7.09 kg (20.26 lb)
Product Dimensions	440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99")
Package Dimensions	529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 9.31")
