NC324G2-MB 4MP EXIR Fixed Bullet Network Camera
Login to see prices SKU: NC324G2-MB
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.005 Lux @ (F1.6 ,AGC ON) ,0 Lux with IR on |
| Camera Resolutions | |
| Lens Type | |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Style | |
| WDR | 120 dB |
| Day/Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360° ,tilt: 0° to 90° ,rotate: 0° to 360° |
| Lens Size | |
| DORI | 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m 6 mm: D: 120 m, O: 47,m, R: 24,m, I: 12 m |
| Max. Resolution | 2688 × 1520 |
| IR Range | Up to 40 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Simultaneous Live View | Up to 6 channels |
| Camera Dimension | 70 × 161.7 mm (2.76″ × 6.37″) |
| With Package Weight | Approx. 724 g (1.6 lb.) |
NC324G2-TD 4 MP EXIR Fixed Dome Network Camera
Login to see prices SKU: NC324G2-TD
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| WDR | 120 dB |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Max. Aperture | F1.6 |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 2688 × 1520 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio | |
| Power | 12 VDC ±25% ,reverse polarity protection PoE: 802.3af ,Class 3 |
| Protection | IP67 |
| Weight | Approx. 806 g (1.8 lb.) |
| Dimension | 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Material | Aluminum alloy body Bubble: plastic |
| Power Interface | Ø5.5 mm coaxial power plug |

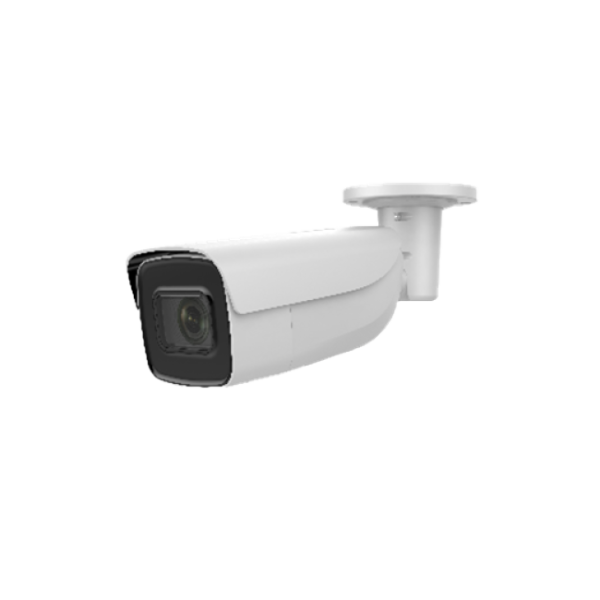

NC324G2-VBZ 4 MP EXIR Motorized Varifocal Bullet Network Camera
Login to see prices SKU: NC324G2-VBZ
| Image Sensor | 1/3″ Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| Lens Type | |
| Lens Size | |
| Shutter Speed | 1/3 s to 1/100 ,000 s |
| Wide Dynamic Range | 120 dB |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| On-board Storage | Built-in micro SD ,up to 256 GB |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Power Supply | 12 VDC ± 25% Power Supply PoE: 802.3at ,Class 4 |
| Power Consumption and Current | 12 VDC ,1.08 A ,max. 13 W PoE: (802.3at ,42.5 V to 57 V) ,0.36 A to 0.27 A ,max. 15 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Material | Aluminum alloy body |
| Camera Dimension | 308.5 × 97.9 × 93 mm (12.2" × 3.9" × 3.7") |
| Package Dimension | 385 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Camera Weight | Approx. 1390 g (3.1 lb.) |
| With Package Weight | Approx. 1961 g (4.3 lb.) |
| Protection | IK10 ,IP67 |
NC324G2-WDA 4 MP AcuSense Fixed mini Dome Network Camera
Login to see prices SKU: NC324G2-WDA 2.8mm
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max.Resolution | 2688×1520 |
| Shutter Speed | 1/3s to 1/100 ,000s |
| Min.Illumination | Color:0.005 Lux@ (F1.6 ,AGC ON) ,B/W:0 Lux with IR |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan:-30°to 30° ,tilt:0°to 75° ,rotate:0°to 360° |
| Lens Type | |
| Lens Size | |
| Lens Mount | M12 |
| Aperture | F1.6 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| WDR | 120 dB |
| SNR | ≥52dB |
| Power | 12 VDC ±25% ,0.45 A ,max. 5.5 W ,Ø5.5 mm coaxial power plug ,reverse polarity protection PoE: 802.3af ,Class 3 ,36 V to 57 V ,0.18 A to 0.11 A ,max. 6.5 W |
| Camera Material | Base: aluminum ,cover: plastic |
| Camera Dimension | Ø110 mm×57.4mm(Ø4.3"×2.3") |
| Package Dimension | 134 mm×134mm×108mm(5.3"×5.3"×4.3") |
| Camera Weight | Approx. 380 g (0.8 lb.) |
| With Package Weight | Approx. 615 g (1.4 lb.) |
| Protection | IK08 ,IP67 |

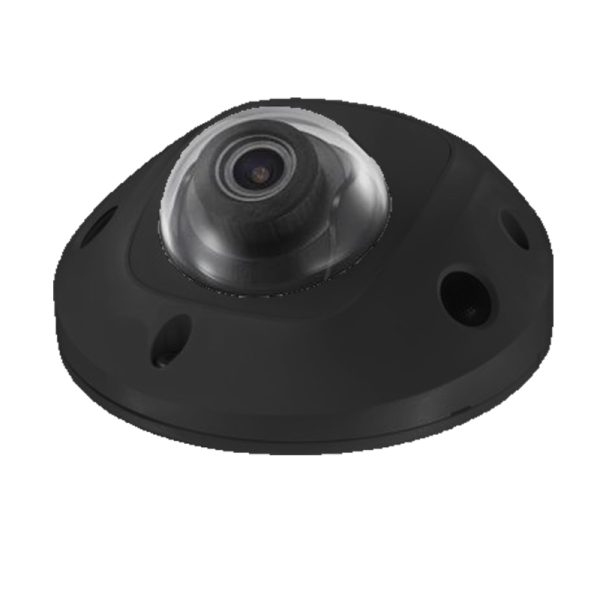

NC324G2-WDAG 4 MP AcuSense Fixed mini Dome Network Camera
Login to see prices SKU: NC324G2-WDAG
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Lens Type | |
| Camera Style | |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6 ,AGC ON) ,0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Resolutions | |
| Angle Adjustment | Pan: -30° to 30° ,tilt: 0° to 75° ,rotate: 0° to 360° |
| Lens Mount | M12 |
| Smart Supplement Light | Yes |
| Wavelength | 850nm |
| Max. Resolution | 2688 × 1520 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Power | 12 VDC ±25% ,0.45 A ,max. 5.5 W ,Ø5.5 mm coaxial power plug ,reverse polarity protection PoE: 802.3af ,Class 3 ,36 V to 57 V ,0.18 A to 0.11 A ,max. 6.5 W |
| Power Consumption and Current | PoE: 802.3af ,Class 3 ,36 V to 57 V ,0.18 A to 0.11 A ,max. 6.5 W |
| Camera Material | Base: aluminum ,cover: plastic |
| Package Dimension | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| With Package Weight | Approx. 615 g (1.4 lb.) |

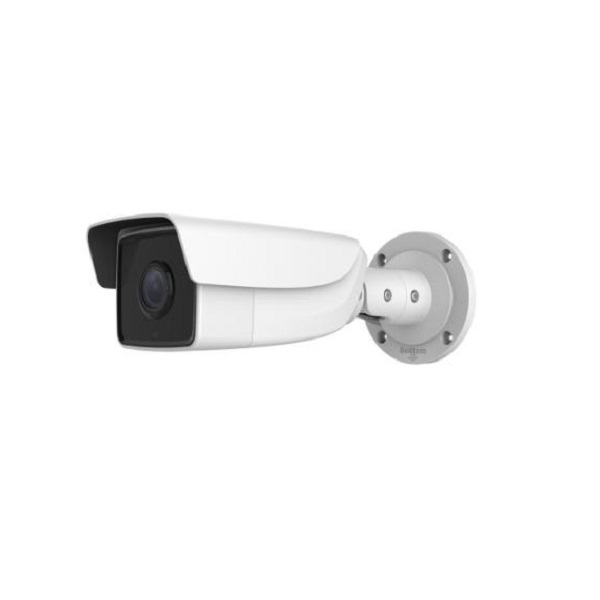

NC324G2-XB 4mm 4 MP EXIR Fixed Bullet Network Camera
Login to see prices SKU: NC324G2-XB 4mm
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux@ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Wide Dynamic Range | 120dB |
| IR Range | -2I: up to 60m |
| Max. Resolution | 2688×1520 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| On-board Storage | Built-in micro SD, up to 256 GB |
| Power Supply | 12 VDC ±25%, reverse polarity protection PoE: 802.3af, Class 3 |
| Power Consumption and Current | -2I: 12VDC,0.71A, max.8.5W PoE (802.3af, 36V to 57V),0.27 A to 0.17 A, max.9.5W -4I: 12VDC,1.0A, amx.11.5W PoE (802.3af, 36V to 57V), 0.35 A to 0.22 A, max.12.5W |
| Power Interface | Ø5.5mm coaxial power plug |
| Material | Aluminum alloy body Sunshield, IR cover: plastic |
| Camera Dimension | Ø105×293mm(Ø4.13″×11.53″) |
| Package Dimension | 386×156×155mm (15.2"×6.2"×6.2") |
| Camera Weight | Approx.1070g (2.4lb.) |
| With Package Weight | Approx.1589g (3.5lb.) |

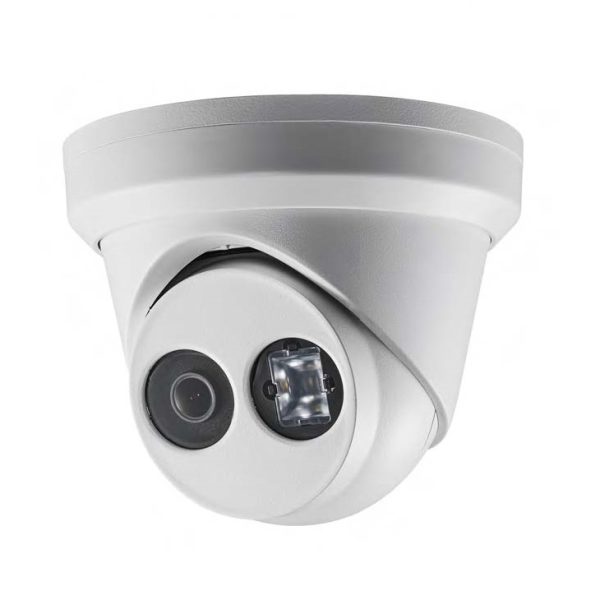

NC324G2-XD 4 MP AcuSense Fixed Turret Network Camera
Login to see prices SKU: NC324G2-XD
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | ICR Cut |
| WDR | 120 dB |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Type & FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
| Max. Aperture | F1.6 |
| Lens Mount | M12 |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 2688 × 1520 |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power | 12 VDC ± 25% ,reverse polarity protection PoE: 802.3af ,Class 3 |
| Protection | IP67 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Material | Aluminum alloy body |
| Dimension | 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 816 g (1.8 lb.) |

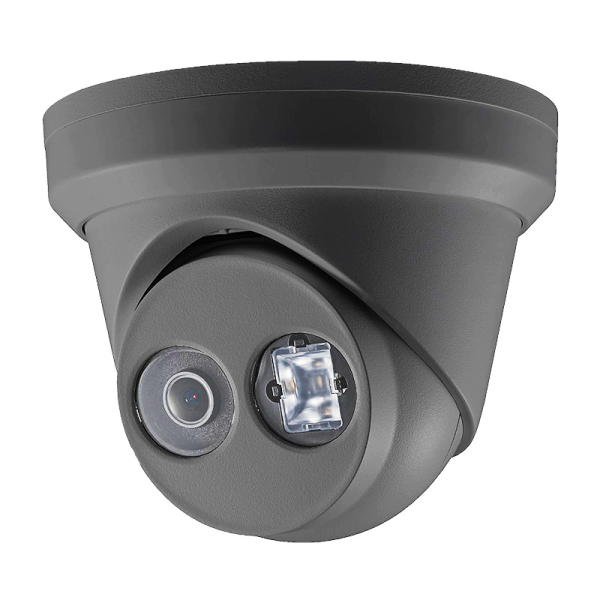

NC324G2-XDG 4 MP AcuSense Fixed Turret Network Camera
Login to see prices SKU: NC324G2-XDG
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.005 Lux @ (F1.6 ,AGC ON) ,0 Lux with IR on |
| With Package Weight | Approx. 816 g (1.8 lb.) |
| Shutter Speed | 1/3 s to 1/100000 s |
| Angle Adjustment | Pan: 0° to 360° ,tilt: 0° to 75° ,rotate: 0° to 360° |
| Camera Resolutions | |
| Lens Size | |
| Lens Mount | M12 |
| Camera Style | |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 2688 × 1520 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Power | 12VDC±25% ,reverse polarity protection PoE:802.3af ,Class3 |
| Power Consumption and Current | 12VDC ,0.5A ,max.6W PoE (802.3af ,36Vto57V) ,0.19Ato0.12A ,max.7W |
| Camera Material | Aluminum alloy body |
| Package Dimension | 150 × 150 × 141 mm (5.9" × 5.9" × 5.6") |

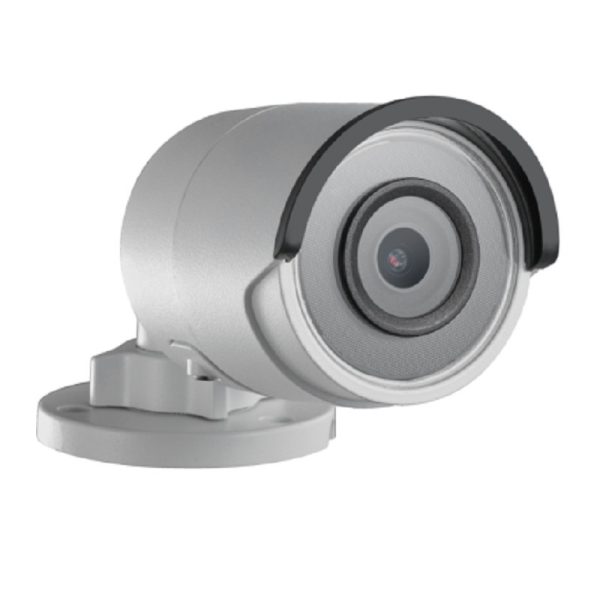

NC326-MB 6 MP IR Fixed Bullet Network Camera
Login to see prices SKU: NC326-MB
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.01 Lux@(F1.2 ,AGC ON) ,0.028 lux@(F2.0 ,AGC ON) ,0 lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| 3‐Axis Adjustment | Pan: 0° to 360° ,tilt: 0° to 90° ,rotate: 0° to 360° |
| Camera Resolutions | |
| Camera Style | |
| Lens Size | |
| Lens Type | |
| Focal length | 2.8/4/6/8mm |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Max. Resolution | 3072 × 2048 |
| Power | 12VDC±25% ,Φ5.5mm coaxial power plug PoE(802.3af ,class3) |
| Material | Metal |
| Dimensions | Camera: Φ70 mm x 155 mm(Φ2.8" x 6.1") Package:216 x 121 x 118 mm(8.5"x 4.8" x 4.7") |
| Weight | Camera: approx.410 g(0.9 lb.) |

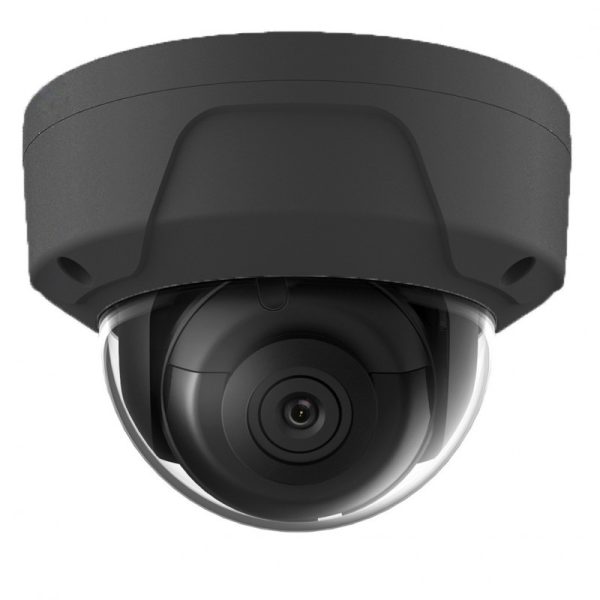

NC326-TD-B 6 MP IR Fixed Dome Network Camera
Login to see prices SKU: NC326-TD-B2.8MM
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Size | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Color | Black |
| Shutter Speed | 1/3s to1/100,000s |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| 3‐Axis Adjustment | Pan:0° to 355°,tilt:0° to 75°,rotate:0° to 355° |
| Focal Length | 2.8/4 mm |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Network Storage | Support MicroSD /SDHC /SDXCcard(128G),local storage and NAS(NFS,SMB/CIFS), ANR |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 3072 × 2048 |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power Consumption and Current | 12VDC,0.6A,max.7.5W PoE:(802.3af,36Vto57V),0.3Ato0.2A,max.9W |
| Power | 12VDC±25% ,Φ5.5mm coaxial power plug PoE(802.3af ,class3) |
| Protection | IK10 ,IP67 |
| Material | Camera body: metal, bubble: plastic |
| Dimensions | Camera:Φ111mm×82.4mm(Φ4.4"×3.2") Package:134×134×108mm(5.3"×5.3"×4.3") |
| Weight | Camera: approx.500g(1.1lb.) |

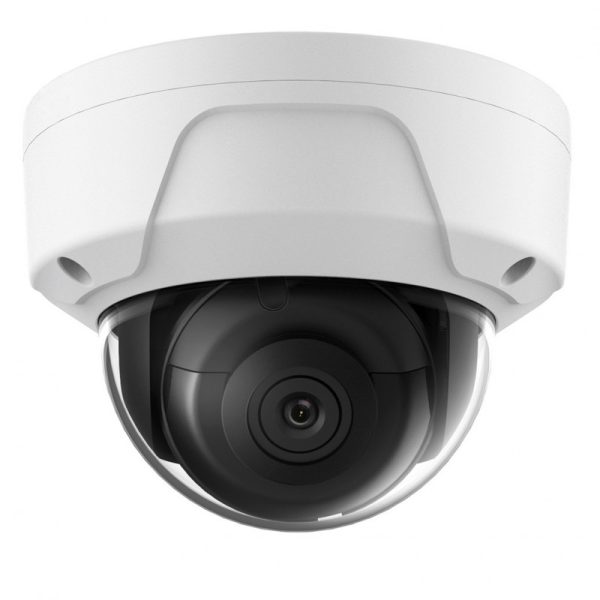

NC326-TD-W 6 MP IR Fixed Dome Network Camera
Login to see prices SKU: NC326-TD-W2.8MM
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Size | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Color | White |
| Shutter Speed | 1/3s to1/100,000s |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| 3‐Axis Adjustment | Pan:0° to 355°,tilt:0° to 75°,rotate:0° to 355° |
| Focal Length | 2.8/4 mm |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Network Storage | Support MicroSD /SDHC /SDXCcard(128G),local storage and NAS(NFS,SMB/CIFS), ANR |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 3072 × 2048 |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power Consumption and Current | 12VDC,0.6A,max.7.5W PoE:(802.3af,36Vto57V),0.3Ato0.2A,max.9W |
| Power | 12VDC±25% ,Φ5.5mm coaxial power plug PoE(802.3af ,class3) |
| Protection | IK10 ,IP67 |
| Material | Camera body: metal, bubble: plastic |
| Dimensions | Camera:Φ111mm×82.4mm(Φ4.4"×3.2") Package:134×134×108mm(5.3"×5.3"×4.3") |
| Weight | Camera: approx.500g(1.1lb.) |
NC326-TD-W4MM 6 MP IR Fixed Dome Network Camera
Login to see prices SKU: NC326-TD-W4MM
| Camera Resolutions | |
|---|---|
| Camera Style | |
| Lens Size | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Color | White |
| Minimum Illumination | Color: 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| Shutter Speed | 1/3s to1/100,000s |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| 3‐Axis Adjustment | Pan:0° to 355°,tilt:0° to 75°,rotate:0° to 355° |
| Focal Length | 2.8/4 mm |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Network Storage | Support MicroSD /SDHC /SDXCcard(128G),local storage and NAS(NFS,SMB/CIFS), ANR |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 3072 × 2048 |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power Consumption and Current | 12VDC,0.6A,max.7.5W PoE:(802.3af,36Vto57V),0.3Ato0.2A,max.9W |
| Power | 12VDC±25% ,Φ5.5mm coaxial power plug PoE(802.3af ,class3) |
| Protection | IK10 ,IP67 |
| Material | Camera body: metal, bubble: plastic |
| Dimensions | Camera:Φ111mm×82.4mm(Φ4.4"×3.2") Package:134×134×108mm(5.3"×5.3"×4.3") |
| Weight | Camera: approx.500g(1.1lb.) |

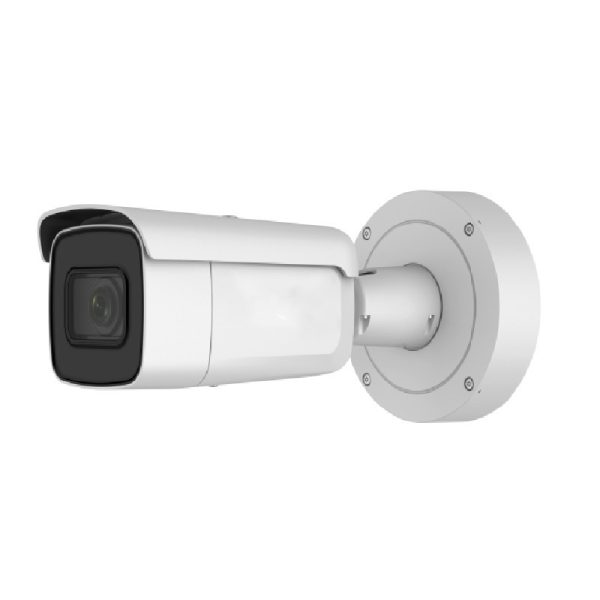

NC326-VBZ 6 MP IR Motorized VF Bullet Network Camera
Login to see prices SKU: NC326-VBZ
| Camera Resolutions | |
|---|---|
| Lens Type | |
| Camera Style | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.01 Lux @(F1.2 ,AGC ON) ,0.018 Lux @(F1.6 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Focal Length | 2.8 to 12 mm |
| Lens Size | |
| Lens Mount | Φ14 |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Audio Bit Rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32‐192 Kbps(MP2L2) |
| Max. Resolution | 3072 × 2048 |
| Power | 12VDC±25% ,PoE(802.3at ,class4) ,Φ5.5mm coaxial power plug |
| Material | Metal |
| Dimensions | Φ144.1 x 332.7mm(Φ5.7" x 13.1") |
| Weight | Camera: 1893 g(4.2 lb.) |
| Protection | IK10 ,IP67 |

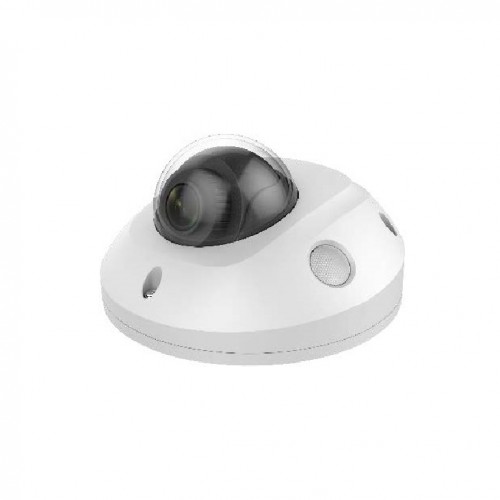

NC326-WDC 6 MP IR Fixed Mini Dome Network Camera
Login to see prices SKU: NC326-WDC
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Lens Type | |
| Camera Style | |
| Minimum Illumination | Color: 0.01 Lux@(F1.2 ,AGC ON) ,0.028 lux@(F2.0 ,AGC ON) ,0 lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| WDR | 120 dB |
| Focal length | 2.8mm |
| Lens Mount | M12 |
| IR Range | Up to 10 m |
| Wavelength | 850nm |
| Audio Bit Rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2) |
| Max. Resolution | 3072 × 2048 |
| Power | 12VDC±25% ,PoE(802.3af ,class3) |
| Protection | IK08 ,IP66 |
| Dimensions | Φ110 mm×56.4 mm(Φ4.3" x 2.2") |
| Weight | Camera: Approx.400 g(0.9 lb.) |

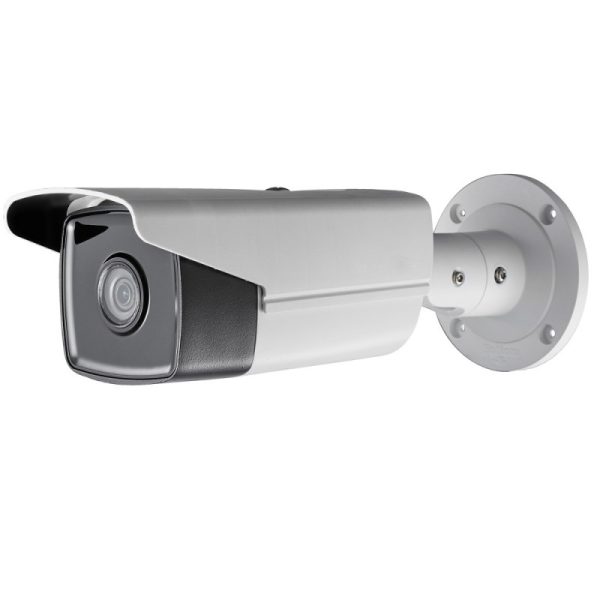

NC326-XB 6 MP IR Fixed Bullet Network Camera
Login to see prices SKU: NC326-XB
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Minimum Illumination | Color: 0.01 Lux@(F1.2 ,AGC ON) ,0.028 lux@(F2.0 ,AGC ON) ,0 lux with IR |
| Lens Type | |
| Shutter Speed | 1/3 s to 1/100000 s |
| Digital Noise Reduction | 3D DNR |
| 3‐Axis Adjustment | Pan: 0 degree to 360 degree, tilt: 0 degree to 100 degree,rotate: 0 degree to 360 degree |
| Camera Resolutions | |
| Focal Length | 2.8/4/6/8 mm |
| Camera Style | |
| Lens Size | |
| Lens Mount | M12 |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Max. Resolution | 3072 x 2048 |
| Power | 12VDC±25% ,Φ5.5mm coaxial power plug PoE(802.3af ,class3) |
| Protection | IP67 |
| Material | Metal |
| Dimensions | Camera: Φ104.8 x 299.7 mm(Φ4.1" x 11.8") Package: 386×156 x 155 mm(15.2" x 6.1" x 6.1") |

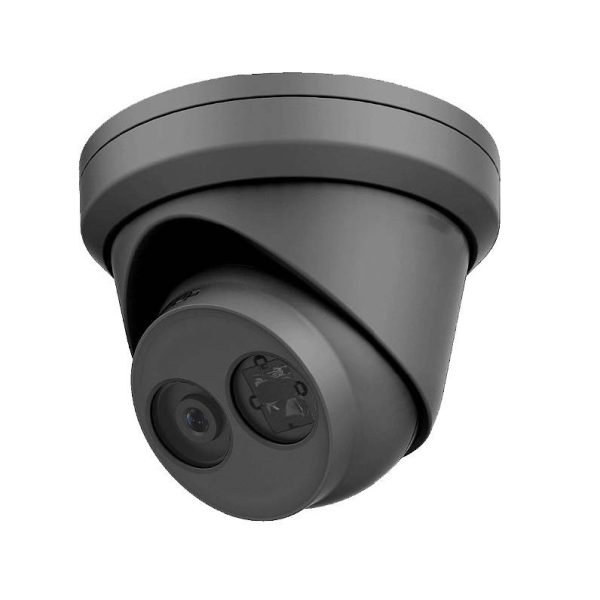

NC326-XDG 6 MP IR Fixed Turret Network Camera
Login to see prices SKU: NC326-XDG 2.8mm
| Camera Resolutions | |
|---|---|
| Lens Size | |
| Color | Dark Gray |
| Camera Style | |
| Lens Type | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min.Illumination | Color:0.01lux@(F1.2 ,AGCON) ,0.028lux@(F2.0 ,AGCON) ,0luxwithIR |
| Shutter Speed | 1/3s to 1/100 ,000s |
| Day&Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| 3‐Axis Adjustment | Pan:0°to 360° ,tilt:0°to 75° ,rotate:0°to 360° |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Power Supply | 12VDC±25% ,Φ5.5mm coaxial power plug PoE(802.3af ,class3) |
| Power Consumption and Current | 12VDC ,0.5A ,max.6.0W PoE:(802.3af ,36Vto57V) ,0.3Ato0.2A ,max.7.5W |
| Protection | IP67 |
| Material | Metal |
| Dimensions | Camera:Φ127.3×95.9mm(5″×3.8″) Package:150×150×141mm(5.9″×5.9″×5.6″) |
| Weight | Camera:620g(1.4lb.) |
NC326-XDZ 6 MP IR Motorized VF Turret Network Camera
Login to see prices SKU: NC326-XDZ
| Image Sensor | 1/2.9" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Minimum Illumination | Color: 0.01 Lux @(F1.2 ,AGC ON) ,0.018 Lux @(F1.6 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Lens Type | |
| Lens Size | |
| Camera Style | |
| Digital Noise Reduction | 3D DNR |
| Focal length | 2.8mm to 12mm |
| Lens Mount | Φ14 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Audio Bit Rate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2) |
| Power | 12VDC±25% ,Φ5.5mm coaxial plug power PoE(802.3af ,class3) |
| Power Consumption and Current | 12 VDC ,1 A ,max.11 W PoE (802.3 af ,36 V to 57 V) ,0.4 A to 0.3 A ,max .12.5 W |
| Material | Metal |
| Dimensions | Φ135.8 mm x 145.5 mm(Φ5.4"x 5.7") |
| Weight | With package: approx.1220 g(2.7 lb.) Camera: approx.1060 g(2.3 lb.) |
| Protection | IK10 ,IP67 |
NC326G2-TDA 6 MP AcuSense Fixed Dome Network Camera
Login to see prices SKU: NC326G2-TDA
| Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Lens Type | |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6 ,AGC ON) ,0 Lux with IR on |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Resolutions | |
| Camera Style | |
| Angle Adjustment | Pan: 0° to 355°; tilt: 0° to 75°; rotate: 0° to 355° |
| Lens Mount | M12 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Max. Resolution | 3200 x 1800 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Power | 12 VDC ± 25% ,0.5 A ,max. 6 W ,Ø5.5 mm coaxial power plug ,reverse polarity protection ,PoE: IEEE 802.3af ,Class 3 ,max. 7.5 W |
| Power Consumption and Current | PoE: IEEE 802.3af ,Class 3 ,max. 7.5 W |
| Camera Material | Aluminum alloy body Bubble: plastic |
| Package Dimension | 134 mm x 134 mm x 108 mm (5.3" x 5.3" x 4.3") |
| With Package Weight | Approx. 567 g (1.25 lb.) |
