NC354-XD 4 MP AI Technology Fixed Turret Network Camera

SKU: NC354-XD
Image Sensor

1/2.7" Progressive Scan CMOS

Lens Type

Minimum Illumination

Color: 0.003 Lux@(F1.4

,

AGC ON)

,

B /W:0 Lux with IR

Camera Resolutions

Shutter Speed

1/3 s to 1/100000 s

Camera Style

Angle Adjustment

Pan: 0° to 360°

,

tilt: 0° to 75°

,

rotate: 0° to 360°

Lens Size

Lens Mount

M12

IR Range

Up to 30 m

Wavelength

850nm

Max. Resolution

2592 × 1944

Video Bit Rate

32 Kbps to 8 Mbps

Audio

Power

12 VDC ± 25%

,

reverse polarity protection PoE: 802.3af

,

class 3

Power Consumption and Current

12 VDC

,

0.48 A

,

max. 5.8 W PoE: (802.3af

,

36 V to 57 V)

,

0.19 A to 0.12 A

,

max. 6.8 W

Camera Material

Metal except for trim ring

Package Dimension

170 x 170 x 150 mm (6.7" x 6.7" x 5.9")

With Package Weight

Approx. 1073 g (2.4 lb.)

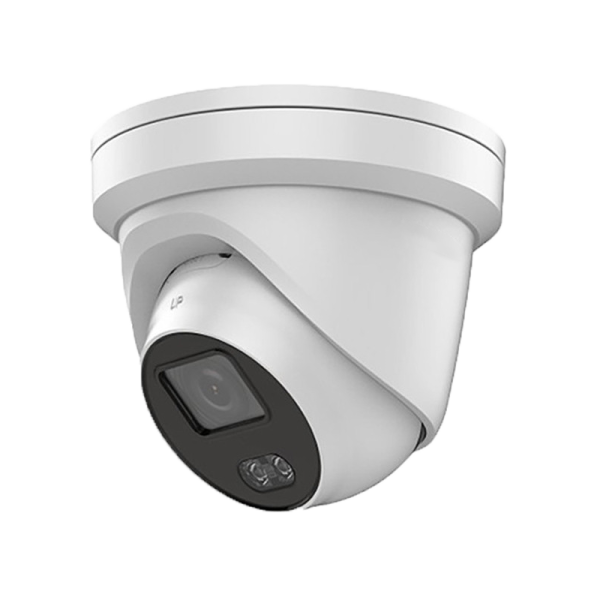

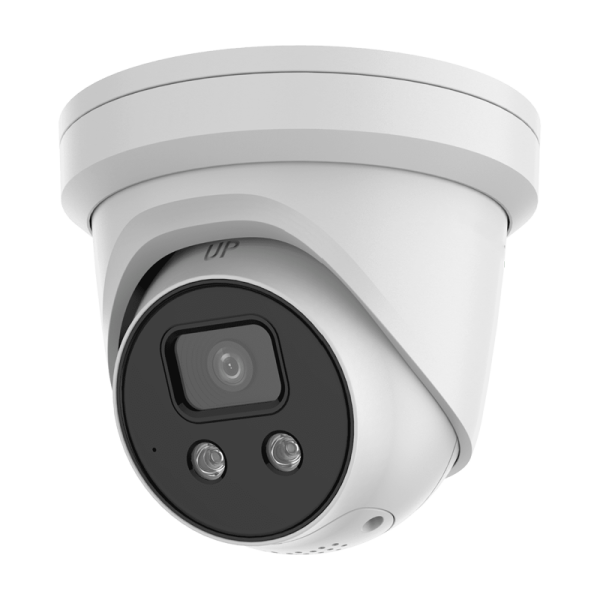

NC354-XDAU/SL 4 MP AcuSense Strobe Light and Audible Warning Fixed Turret Network Camera

SKU: NC354-XDAU/SL
Image Sensor

1/3" Progressive Scan CMOS

Minimum Illumination

Color: 0.003 Lux @ (F1.4

,

AGC ON)

,

B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

WDR

120 dB

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Camera Resolutions

Lens Type

Camera Style

Lens Size

,

,

Lens Mount

M12

IR Range

Up to 30 m

Max. Resolution

2688 × 1520

Video Bit Rate

32 Kbps to 8 Mbps

Audio

Power

12 VDC ± 25%

,

reverse polarity protection PoE: 802.3af

,

class 3

Material

Metal except for trim ring

Camera Dimension

138.3 mm × 124.5 mm (5.4" × 4.9")

Package Dimension

170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9")

With Package Weight

Approx. 1120 g (2.5 lb.)

Protection

IP67

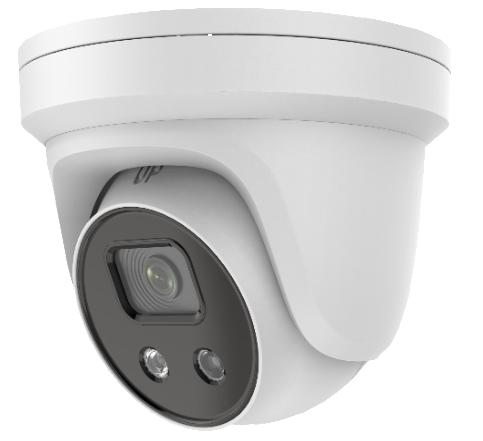

NC354G2-XDAU/SL AcuSense 4 MP IR Fixed Turret Network Camera

SKU: NC354G2-XDAU/SL
Camera Resolutions

Camera Style

Lens Type

Image Sensor

1/2.7" Progressive Scan CMOS

Minimum Illumination

Color: 0.003 Lux @ (F1.4

,

AGC ON)

,

B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

WDR

120 dB

Angle Adjustment

Pan:0° to 360°,tilt:0° to 75°,rotate:0° to 360°

Max. Aperture

F1.4

Lens Mount

M12

IR Range

Up to 30 m

Wavelength

850nm

Max. Resolution

2592 × 1944

Video Bit Rate

32 Kbps to 8 Mbps

Audio

Power

12VDC

,

0.65A

,

max.7.8W PoE:(802.3af

,

36Vto57V)

,

0.25A to 0.15A

,

max.8.8W

Interface Network

1 RJ45 10M/100M self-adaptive Ethernet Interface

Protection

IP66

Material

Metal except for trim ring

Camera Dimension

138.3×124.5mm(5.4″×4.9″)

Package Dimension

170×170×150mm(6.9"×6.9"×5.9")

Camera Weight

Approx.800g(1.8lb.)

With Package Weight

Approx.1093g(2.4lb.)

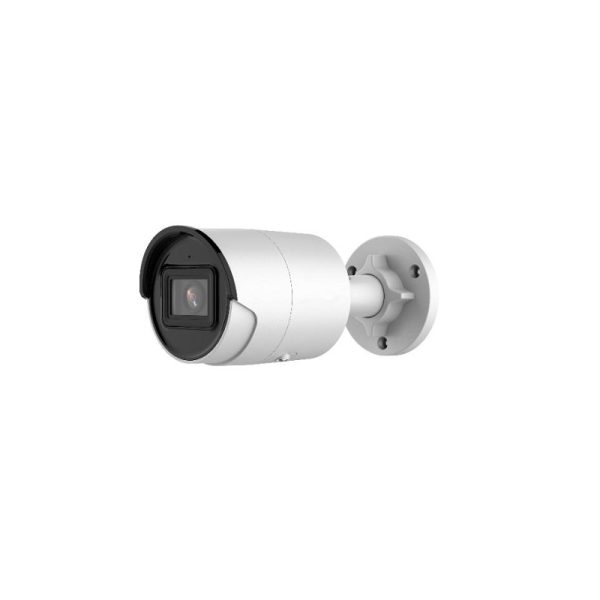

NC358H2-MB 8 MP AcuSense Powered-by-Darkfighter Fixed Mini Bullet Network Camera

SKU: NC358H2-MB
Image Sensor

1/1.8" Progressive Scan CMOS

Camera Resolutions

Camera Style

Lens Type

Minimum Illumination

Color: 0.003 Lux@(F1.6

,

AGC ON)

,

B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

Angle Adjustment

Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°

Lens Mount

M12

IR Range

Up to 40 m

Wavelength

850nm

Max. Resolution

3840 × 2160

Power

DC12V ±25% PoE:802.3af

,

Class3

Power Consumption and Current

12VDC

,

0.5A

,

max.6W PoE(802.3af

,

36Vto57V)

,

0.2Ato0.13A

,

max.7.2W

Camera Dimension

70 mm ×161.7 mm (2.8" × 6.37")

Camera Weight

Approx.485g(1.1lb.)

With Package Weight

Approx. 749 g (1.6 lb.)

Protection

IP67

NC358H2-VDZ 8 MP Motorized Varifocal Dome Network Camera

SKU: NC358H2-VDZ
Image Sensor

1/1.8" Progressive Scan CMOS

Camera Resolutions

Lens Type

Camera Style

Minimum Illumination

Color: 0.003 Lux@(F1.4

,

AGC ON)

,

B /W:0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

Angle Adjustment

Pan:0°to 355°

,

tilt:0 °to 90°

,

rotate:0 °to 355°

Lens Mount

Φ14

IR Range

Up to 40 m

Wavelength

850nm

Max. Resolution

3840 × 2160

Video Bit Rate

32 Kbps to 16 Mbps

Power

PoE: 802.3af

,

Class 3

Power Consumption and Current

PoE (802.3af

,

36 V to 57 V)

,

0.35 A to 0.22 A

,

max. 12.5 W

Camera Material

Metal

Package Dimension

244 mm x 174mm x 173mm(9.6" x 6.9" x 6.8")

With Package Weight

Approx. 1440 g (3.2 lb.)

Protection

IK10

,

IP67

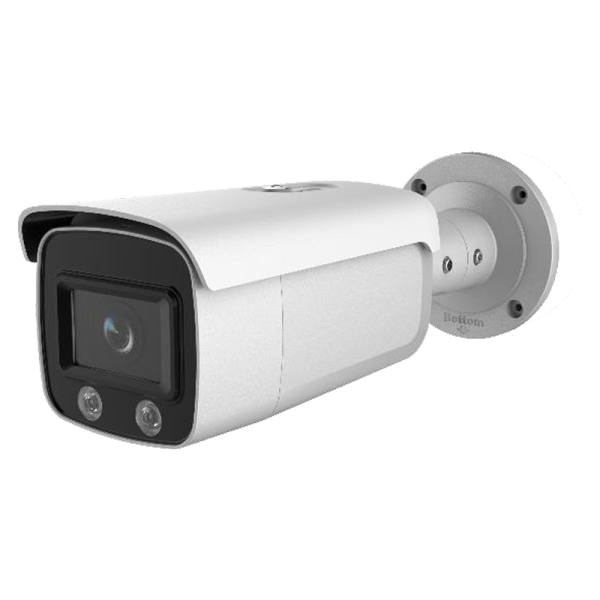

NC454-XB/L 4 MP ColorVu Fixed Bullet Network Camera

SKU: NC454-XB/L
Camera Resolutions

Image Sensor

1/1.8" Progressive Scan CMOS

Lens Type

Minimum Illumination

0.0014 @ (F1.0

,

AGC ON)

,

0 Lux with Light

Shutter Speed

1/3 s to 1/100000 s

Camera Style

Angle Adjustment

Pan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotate: 0° ~ 360°

Focal length

4mm

Lens Size

Digital Noise Reduction

3D DNR

WDR

120 dB

Max. Resolution

2688 × 1520

Video Bit Rate

32 Kbps to 16 Mbps

Power

12 VDC ± 25%

,

5.5 mm coaxial power plug PoE (802.3af

,

class 3)

Power Consumption and Current

12 VDC

,

0.7 A

,

max. 9.5 W PoE: (802.3af

,

36 V to 57 V)

,

0.3 A to 0.1 A

,

max. 11 W

Camera Material

Front cover: metal

,

back cover: metal

Dimensions

Camera: Φ 105 × 290.7 mm (Φ 4.1" × 11.4") With package: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")

Weight

Camera: 1200 g (2.6 lb.) With package: 1800 g (4 lb.)

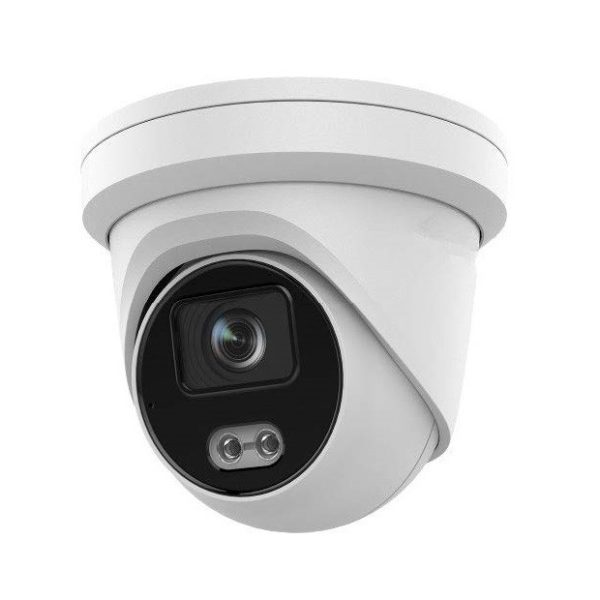

NC454-XD/LU-G2 4mm 4 MP ColorVu Fixed Turret Network Camera

SKU: NC454-XD/LU-G2 4mm
Camera Resolutions

Camera Style

Lens Type

Lens Size

Color

White

Image Sensor

1/3"Progressive Scan CMOS

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Shutter Speed

1/3 s to 1/100,000 s

Wide Dynamic Range

130 dB

Lens Type

Fixed focal lens, 2.8, 4 optional

Supplement Light Type

White Light

Video Bit Rate

32 Kbps to 8 Mbps

Communication Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio

Power Supply

12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.55 A, max. 6.6 W
PoE (802.3af, 36 V to 57 V), 0.22 A to 0.13 A, max. 7.6 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Aluminum alloy body, except for trim ring

Camera Dimension

Ø138.3 mm × 125.2 mm (Ø5.4" × 4.9")

Package Dimension

170 mm × 170 mm × 150 mm (7" × 7" × 5.9")

Camera Weight

Approx. 750 g (1.7 lb.)

With Package Weight

Approx. 1055 g (2.3 lb.)

Protection

IP67

NC454G2-XDLIU-SR 4 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

SKU: NC454G2-XDLIU-SR
Image Sensor

1/3" Progressive Scan CMOS

Camera Resolutions

Minimum Illumination

Color: 0.001 Lux@(F1.0

,

AGC ON)

,

0 Lux with light

Shutter Speed

1/12s to1/100

,

000s

Lens Type

Camera Style

Angle Adjustment

Pan: 0° to 360°

,

tilt: 0° to 75°

,

rotate: 0° to 360°

Lens Mount

M12

Audio

SmartSupplementLight

Yes

Wavelength

850nm

Max. Resolution

2688 × 1520

Video Bit Rate

256 Kbps to 8 Mbps

Power

12VDC±25%

,

0.75A

,

max.9W

,

Ø5.5mm coaxial power plug

,

reverse polarity protection

,

PoE: IEEE802.3af

,

Class3

,

max.10.5W

Power Consumption and Current

IEEE802.3af

,

Class3

,

max.10.5W

Camera Material

Cover: metal main body: metal

Package Dimension

170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

With Package Weight

Approx.1316g(2.9lb.)

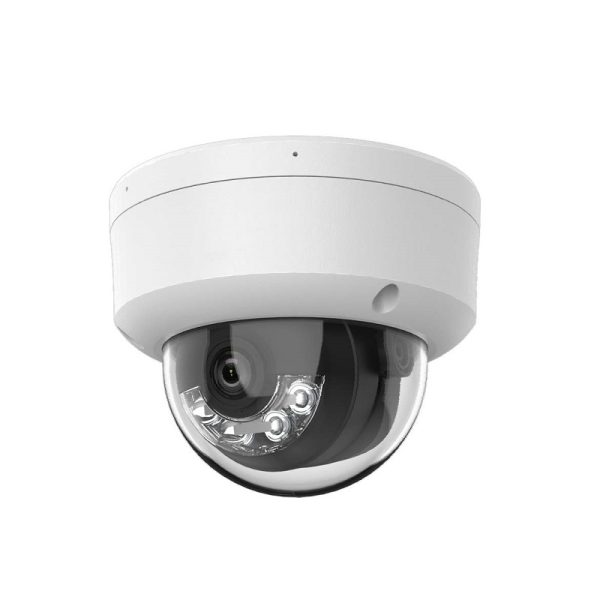

NC454G2E-TD/LIU 4 MP Dual Illumination Fixed Dome Network Camera

SKU: NC454G2E-TD/LIU
Image Sensor

1/3" Progressive Scan CMOS

Lens Type

Minimum Illumination

0.0005 Lux @ (F1.0

,

AGC ON)

,

0 Lux with Light

Max. Resolution

2688 × 1520

Shutter Speed

1/3s to 1/100000s

Camera Resolutions

Camera Style

Angle Adjustment

Pan:0° to 355°,tilt:0° to 75°,rotate:0° to 355°

Lens Mount

M12

Max. Aperture

F1.0

Wavelength

850nm

Video Bit Rate

32 Kbps to 8 Mbps

Power

12VDC±25%

,

0.6A

,

max.7.2W

,

Ø5.5mm coaxial power plug

,

reverse polarity protection

,

PoE:IEEE802.3af

,

Class3

,

max.8.5W

Material

Front cover: Metal, body: Metal, bracket: Metal

Dimension

121.4mm×97.7mm(4.8"×3.8")

Package Dimension

150mm×150mm×141mm(5.9"×5.9"×5.6")

Weight

Approx. 550g(1.2lb.)

With Package Weight

Approx. 800g(1.8lb.)

Safety

UL: UL62368-1, CB: IEC62368-1:2014+A11, CE-LVD: EN62368-1:2014/A11:2017

Protection

IP67

Audio

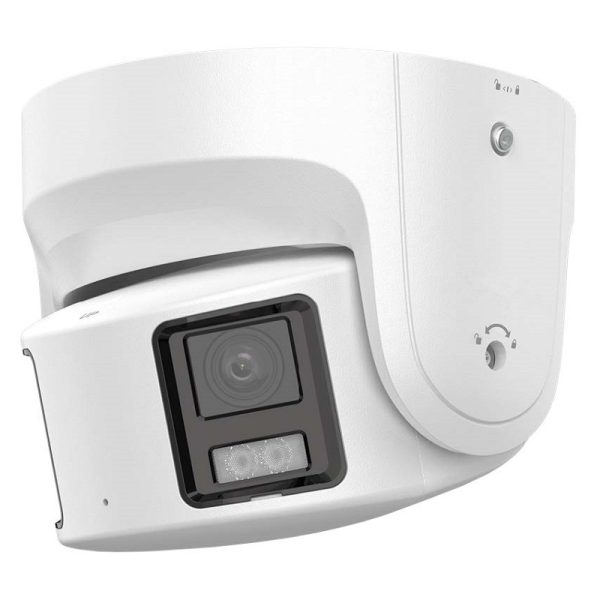

NC458G2-PDL/LU 8 MP Panoramic Ultra Color Night Fixed Dual Len Turret Network Camera

SKU: NC458G2-PDL/LU
Image Sensor

2 × 1/1.8" Progressive Scan CMOS

Camera Style

Minimum Illumination

Color: 0.0005 Lux @ (F1.0

,

AGC ON)

,

0 Lux with light

Shutter Speed

1/3 s to 1/100000 s

Camera Resolutions

Angle Adjustment

Pan: -30° to 30°

,

tilt: -75° to 75°

Lens Type

Lens Mount

M16

Smart Supplement Light

Yes

Supplement Light Type

White Light

Max. Resolution

5120 × 1440

Video Bit Rate

32 Kbps to 16 Mbps

Audio

Power

12 VDC ± 25%

,

0.79 A

,

max. 9.5 W

,

Ø5.5 mm coaxial power plug

,

PoE: 802.3af

,

Class 3

,

36 V to 57 V

,

0.29 A to 0.18 A

,

max. 10.5 W

Camera Material

Base: metal

,

cover: metal

Package Dimension

230 mm × 230 mm × 230 mm (9" × 9" × 9")

With Package Weight

Approx. 1900 g (4.2 lb.)

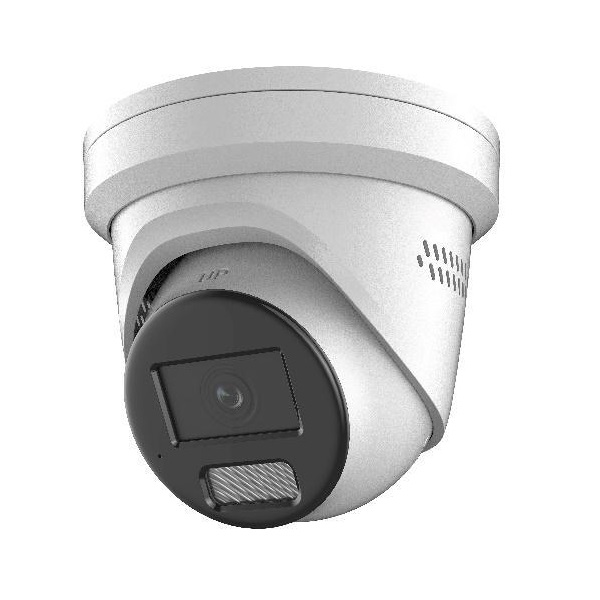

NC458G2-XDLIU-SR 8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

SKU: NC458G2-XDLIU-SR
Camera Resolutions

Image Sensor

1/1.8" Progressive Scan CMOS

Minimum Illumination

Color: 0.0008 Lux@(F1.0

,

AGC ON)

,

0 Lux with light

Shutter Speed

1/3 s to 1/100000 s

Angle Adjustment

Pan: 0° to 360°

,

tilt: 0° to 75°

,

rotate: 0° to 360°

Lens Mount

M16

Lens Type

Camera Style

SmartSupplementLight

Yes

Audio

Wavelength

850nm

Max. Resolution

3840 × 2160

Video Bit Rate

32 Kbps to 8 Mbps

Power

12VDC±25%

,

0.75A

,

max.9W

,

Ø5.5mm coaxial power plug

,

reverse polarity protection

,

PoE:IEEE802.3af

,

Class3

,

max.10.5W

Power Consumption and Current

IEEE802.3af

,

Class3

,

max.10.5W

Camera Material

Cover: metal main body: metal

Package Dimension

170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

With Package Weight

Approx.1316g(2.9lb.)

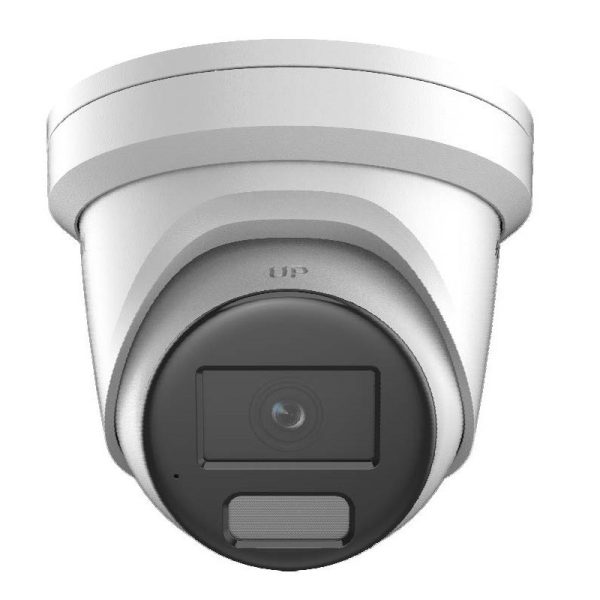

NC458G3-XD/LIU 8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

SKU: NC458G3-XD/LIU
Camera Resolutions

Lens Mount

M16

Camera Style

Lens Type

Lens Size

Image Sensor

1/1.8” progressive scan CMOS

Color

White

Electronic Shutter Speed

1 s to 1/100

,

000 s

Horizontal Field of View

2.8 mm

,

horizontal FOV 108.8°

,

vertical FOV 56.4°

,

diagonal FOV 134.3°

IR On/Off Control

Yes

Audio

IR Range

Up to 30 m

Min. Illumination

Color: 0.0005 Lux @ (F1.0

,

AGC ON)

,

0 Lux with light

Signal System

PAL/NTSC

Smart IR

Yes

Smart Supplement Light

Yes

Supplement Light Range

Up to 30 m

Supplement Light Type

White Light

,

IR

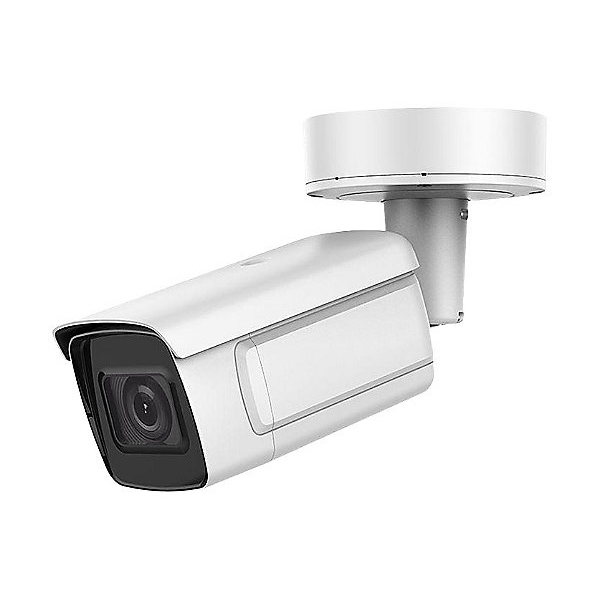

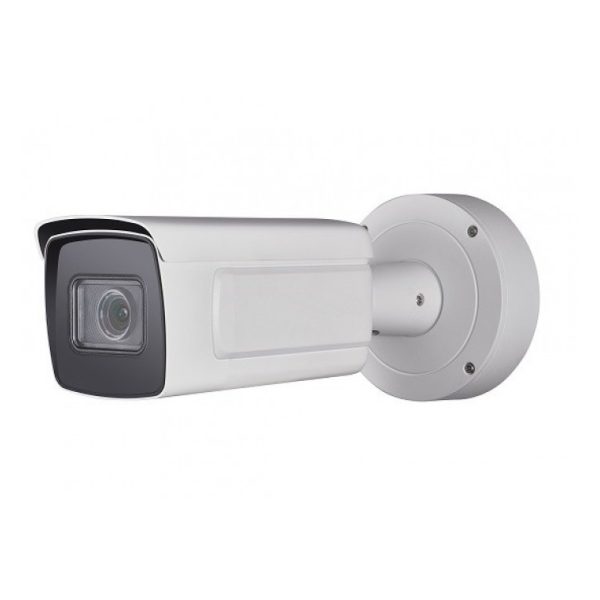

NC522-VBA32-LPR 8-32mm 2 MP ANPR IR Varifocal Bullet Network Camera

SKU: NC522-VBA32-LPR 8-32mm
Image Sensor

1/1.8" Progressive Scan CMOS

Camera Style

Lens Type

Max. Resolution

1920 × 1080

Camera Resolutions

Minimum Illumination

Color: 0.0005 Lux @ (F1.2

,

AGC ON); B/W: 0.0001 Lux @ (F1.2

,

AGC ON),0 Lux with IR

Shutter Speed

1s to 1/100000s

Max. Aperture

F1.2 to F2.5 8 to 32 mm:F1.7to F1.73

Video Bit Rate

32 Kbps to 8 Mbps

Power

12 VDC ±20%

,

1.19 A

,

max. 14.28 W

,

three-core terminal block PoE: 802.3at

,

Type 2

,

Class 4

,

42.5 V to 57 V)

,

0.396 A to 0. 295 A

,

max. 16.8 W

Material

Aluminum alloy body

Dimension

144 x 347 mm(5.7" x 13.7")

Package Dimension

405 x 190 x 180 mm(15.9" x7.5" x 7.1")

With Package Weight

Approx. 3070 g (6.7 lb.)

Protection

IK10

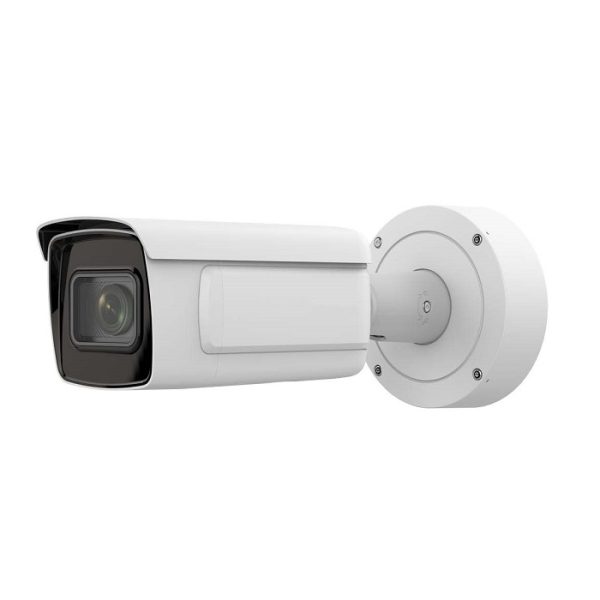

NC524-VBA32-LPR 4 MP ANPR IR Varifocal Bullet Network Camera

SKU: NC524-VBA32-LPR
Camera Resolutions

Image Sensor

1/1.8" Progressive Scan CMOS

Camera Style

Lens Type

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Aperture

2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73

Video Main Stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Video Bit Rate

32 Kbps to 8 Mbps

Wavelength

850nm

WDR

140 dB

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Material

Aluminum alloy body

Power

12 VDC ± 20%

Dimension

Without -Y: 144 × 347 mm (5.7" × 13.7") With -Y: 140 × 351 mm (5.5" × 13.8")

Package Dimension

405 × 190 × 180 mm (15.9" × 7.5" × 7.1")

Protection

IK10

,

IP67

NC712-IDZ 2 MP IR Motorized Varifocal Dome Network Camera

SKU: NC712-IDZ
Image Sensor

1/1.8" Progressive Scan CMOS

Shutter Speed

1s to 1/100000s

Lens Size

Camera Style

WDR

140 dB

Angle Adjustment

Pan: 0° to 355°; tilt: 0° to 75°; rotate: 0° to 355°

Lens Type

IR Range

Up to 30 m

Video Bit Rate

32 Kbps to 16 Mbps

Wavelength

850nm

Max. Resolution

1920 × 1080

Material

Metal

Dimensions

Camera: Φ140.5 × 122.6 mm(Φ5.5″ × 4.8″) With package: 244 × 174 × 173 mm (9.6″ × 6.9″ ×6.8″)

Weight

Camera: approx. 950 g (2.09 lb.) With Package: approx. 1300 g (2.87 lb.)

Protection

IK10

NC714-IDZ 4 MP IR Motorized Varifocal Dome Network Camera

SKU: NC714-IDZ
Image Sensor

1/1.8" Progressive Scan CMOS

Camera Resolutions

Video Bit Rate

32 Kbps to 16 Mbps

Shutter Speed

1s to 1/100000s

WDR

140 dB

Angle Adjustment

Pan: 0° to 355°; tilt: 0° to 75°; rotate: 0° to 355°

Lens Type

IR Range

Up to 30 m

Wavelength

850nm

Protection

IK10

Material

Metal

Dimensions

Camera: Φ140.5 × 122.6 mm(Φ5.5″ × 4.8″) With package: 244 × 174 × 173 mm (9.6″ × 6.9″ ×6.8″)

Camera Style

Weight

Camera: approx. 950 g (2.09 lb.) With Package: approx. 1300 g (2.87 lb.)

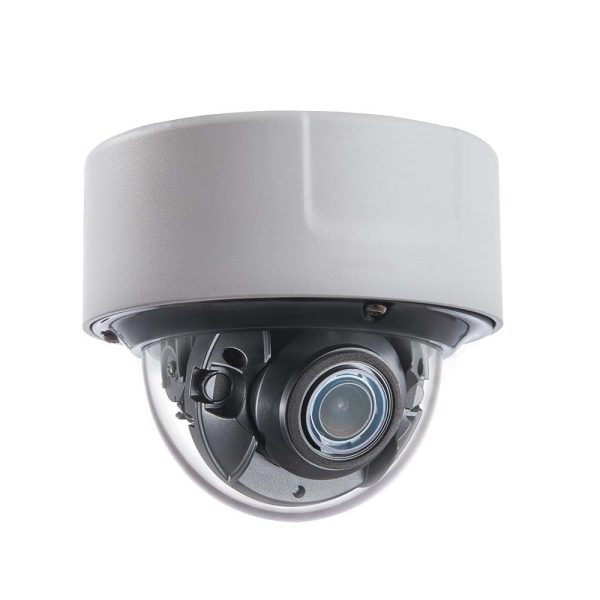

NC718-IDZ 8MP IR Motorized Varifocal Dome Network Camera

SKU: NC718-IDZ
Camera Resolutions

Image Sensor

1/1.8" Progressive Scan CMOS

Minimum Illumination

Color: 0.007 Lux @ (F1.2

,

AGC ON)

,

0.016 Lux @ (F1.8

,

AGC ON)

,

0 Lux with IR

Camera Style

Shutter Speed

1 s to 1/100000 s

Angle Adjustment

Pan: 0° to 355°; tilt: 0° to 75°; rotate: 0° to 355°

Lens Size

Lens Type

WDR

120 dB

Aperture

2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.8

,

Constant F1.8 throughout the zoom range

Lens Mount

Integrated

IR Range

Up to 30 m

Wavelength

850nm

Max. Resolution

3840 × 2160

Video Stream

5 defined streams and up to 5 custom stream

Power

12 VDC is recommended

,

10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af

,

class 3)

Dimensions

Camera: Φ140.5 × 122.6 mm (Φ5.5″ × 4.8″) With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)

Weight

Camera: approx. 950 g (2.09 lb.) With Package: approx. 1300 g (2.87 lb.)

Protection

IK10

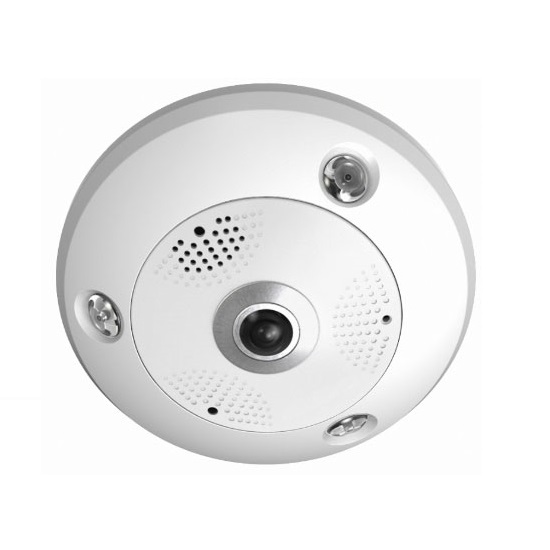

NCA26-FEA 6 MP IR Network Fisheye Camera Built-in mic

SKU: NCA26-FEA
Image Sensor

1/1.8" Progressive Scan CMOS

Camera Style

Minimum Illumination

Color: 0.047 Lux@(F2.6

,

AGC ON)

,

B/W: 0.0047 Lux@(F2.6

,

AGC ON)

,

0 Lux with IR

Shutter Speed

1 s to 1/100

,

000 s

Camera Resolutions

Digital Noise Reduction

3D DNR

Focal length

1.27mm

Lens Mount

M12

IR Range

Up to 15 m

Wavelength

850nm

Video Compression

Main stream:H.265+/H.265/H.264+/H.264 Sub stream:H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

Audio

,

Power

12 VDC±20%

,

PoE(802.3at

,

class 4)

,

two‐core terminal block

Power Consumption and Current

12 VDC

,

1 A

,

max. 12.5 W PoE (802.3at

,

42.5 to 57 V)

,

0.4 A to 0.3 A

,

max. 15 W

Camera Material

Metal

Package Dimension

167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2")

With Package Weight

Approx. 1400 g (3.09 lbs)
