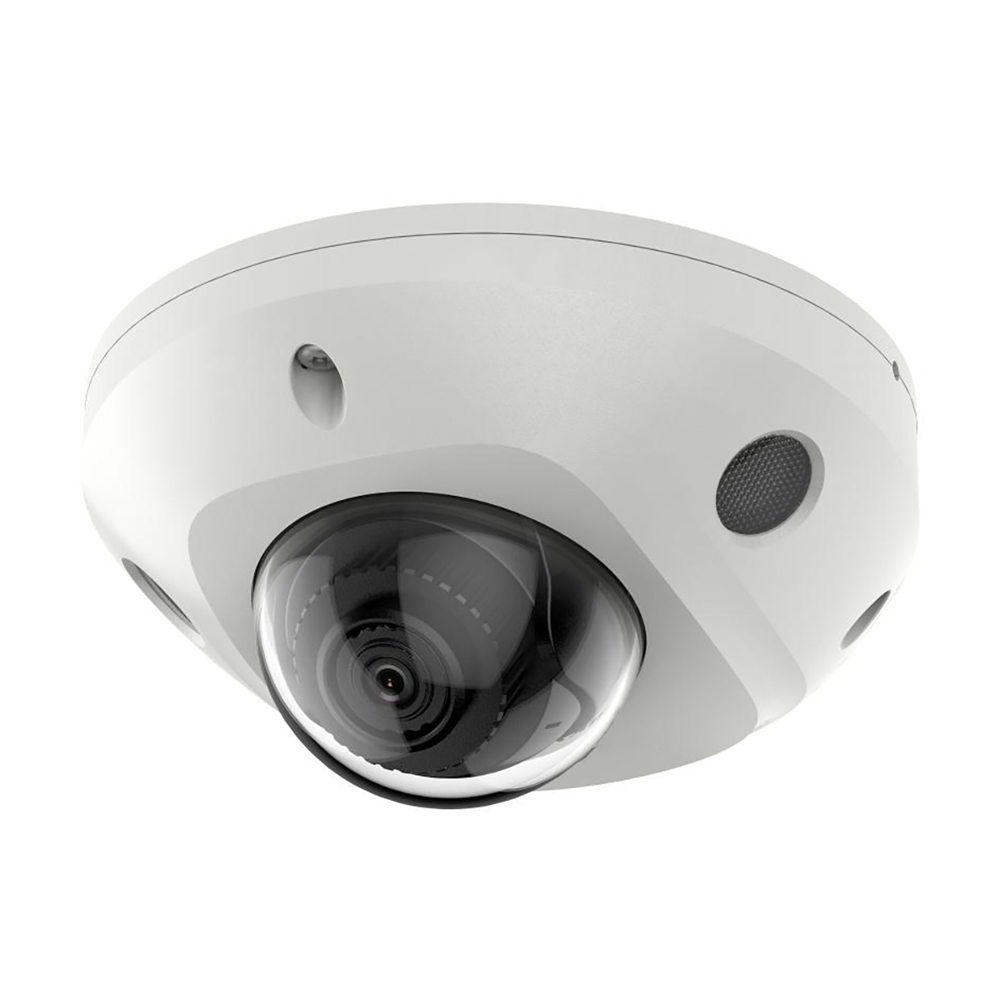

NC324G2-WDA 4 MP AcuSense Fixed mini Dome Network Camera
Click to enlarge

NC324G2-WDA 4 MP AcuSense Fixed mini Dome Network Camera

SKU: NC324G2-WDA 2.8mm

4 MP AcuSense Fixed mini Dome Network Camera

Add to wishlist
Add to compare
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface
  • Built-in Microphone
  • Water and dust resistant (IP67) and vandal resistant (IK08)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Image Sensor

1/3" Progressive Scan CMOS

Max.Resolution

2688×1520

Shutter Speed

1/3s to 1/100

,

000s

Min.Illumination

Color:0.005 Lux@ (F1.6

,

AGC ON)

,

B/W:0 Lux with IR

Day & Night

IR cut filter

Angle Adjustment

Pan:-30°to 30°

,

tilt:0°to 75°

,

rotate:0°to 360°

Lens Type

Lens Size

Lens Mount

M12

Aperture

F1.6

Video Bit Rate

32 Kbps to 8 Mbps

WDR

120 dB

SNR

≥52dB

Power

12 VDC ±25%

,

0.45 A

,

max. 5.5 W

,

Ø5.5 mm coaxial power plug

,

reverse polarity protection PoE: 802.3af

,

Class 3

,

36 V to 57 V

,

0.18 A to 0.11 A

,

max. 6.5 W

Camera Material

Base: aluminum

,

cover: plastic

Camera Dimension

Ø110 mm×57.4mm(Ø4.3"×2.3")

Package Dimension

134 mm×134mm×108mm(5.3"×5.3"×4.3")

Camera Weight

Approx. 380 g (0.8 lb.)

With Package Weight

Approx. 615 g (1.4 lb.)

Protection

IK08

,

IP67
