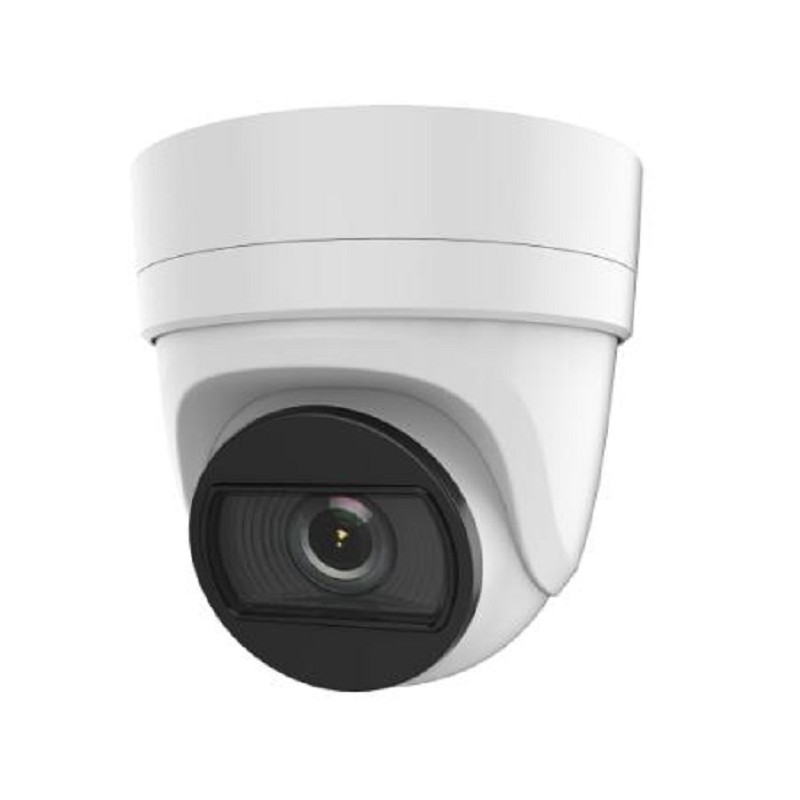

NC326-XDZ 6 MP IR Motorized VF Turret Network Camera
Click to enlarge

NC326-XDZ 6 MP IR Motorized VF Turret Network Camera

SKU: NC326-XDZ

6 MP IR Motorized VF Turret Network Camera

Add to wishlist
Add to compare
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 1/2.9″ Progressive Scan CMOS
  • 3072 x 2048@20 fps
  • 2.8 to 12 mm varifocal lens
  • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • 2 Behavior analyses
  • 120dB WDR
  • BLC/3D DNR/ROI
  • IP67, IK10
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

1/2.9" Progressive Scan CMOS

Camera Resolutions

Minimum Illumination

Color: 0.01 Lux @(F1.2

,

AGC ON)

,

0.018 Lux @(F1.6

,

AGC ON)

,

0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

Lens Type

Lens Size

Camera Style

Digital Noise Reduction

3D DNR

Focal length

2.8mm to 12mm

Lens Mount

Φ14

IR Range

Up to 30 m

Wavelength

850nm

Audio Bit Rate

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-192 Kbps(MP2L2)

Power

12VDC±25%

,

Φ5.5mm coaxial plug power PoE(802.3af

,

class3)

Power Consumption and Current

12 VDC

,

1 A

,

max.11 W PoE (802.3 af

,

36 V to 57 V)

,

0.4 A to 0.3 A

,

max .12.5 W

Material

Metal

Dimensions

Φ135.8 mm x 145.5 mm(Φ5.4"x 5.7")

Weight

With package: approx.1220 g(2.7 lb.) Camera: approx.1060 g(2.3 lb.)

Protection

IK10

,

IP67
