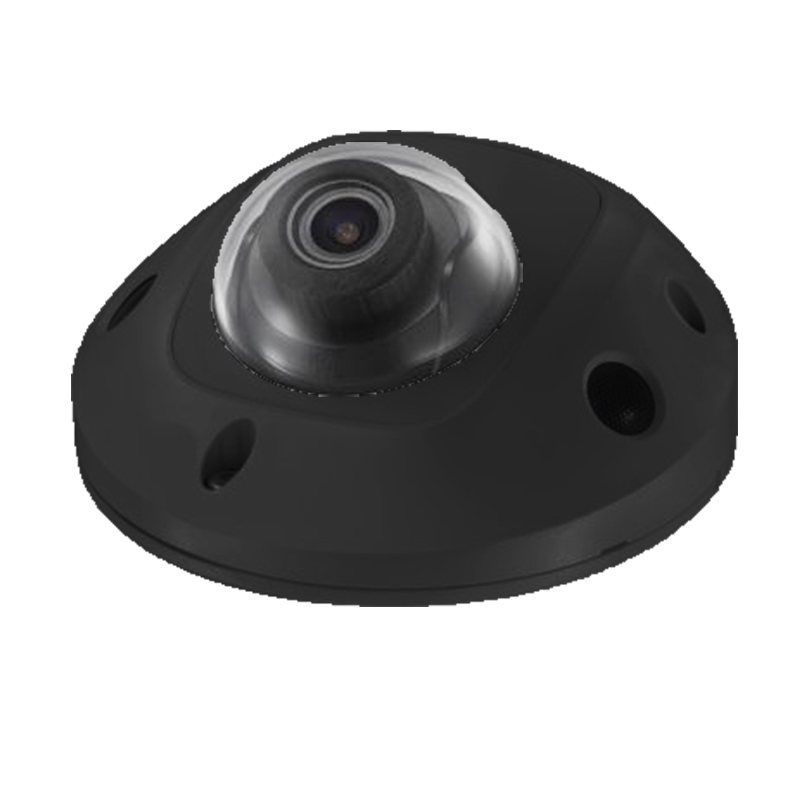

NC324G2-WDAG 4 MP AcuSense Fixed mini Dome Network Camera
Click to enlarge

NC324G2-WDAG 4 MP AcuSense Fixed mini Dome Network Camera

SKU: NC324G2-WDAG

4 MP AcuSense Fixed mini Dome Network Camera

Add to wishlist
Add to compare
11 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • -S: audio and alarm interface available
  • -W: Realizing Wi-Fi connection and easy installation
  • Water and dust resistant (IP67) and vandal resistant (IK08)

Download

Product Manual

Related Firmware

TitleDescriptionDownload
NC32XG2V5.7.14NC32XG2
Additional information
Image Sensor

1/3" Progressive Scan CMOS

Lens Type

Camera Style

Minimum Illumination

Color: 0.005 Lux @ (F1.6

,

AGC ON)

,

0 Lux with IR on

Shutter Speed

1/3 s to 1/100000 s

Camera Resolutions

Angle Adjustment

Pan: -30° to 30°

,

tilt: 0° to 75°

,

rotate: 0° to 360°

Lens Mount

M12

Smart Supplement Light

Yes

Wavelength

850nm

Max. Resolution

2688 × 1520

Video Bit Rate

32 Kbps to 8 Mbps

Power

12 VDC ±25%

,

0.45 A

,

max. 5.5 W

,

Ø5.5 mm coaxial power plug

,

reverse polarity protection PoE: 802.3af

,

Class 3

,

36 V to 57 V

,

0.18 A to 0.11 A

,

max. 6.5 W

Power Consumption and Current

PoE: 802.3af

,

Class 3

,

36 V to 57 V

,

0.18 A to 0.11 A

,

max. 6.5 W

Camera Material

Base: aluminum

,

cover: plastic

Package Dimension

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

With Package Weight

Approx. 615 g (1.4 lb.)
