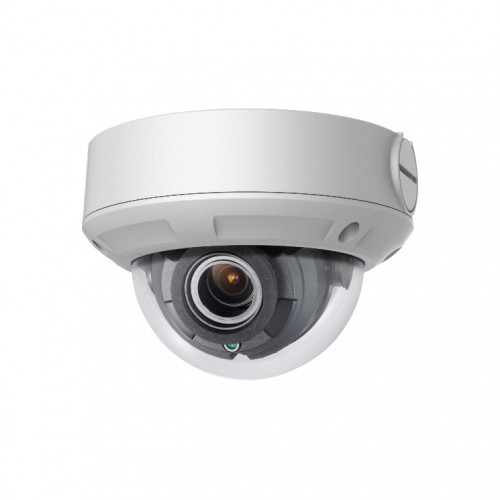

NC214-VDZ 4 MP Motorized VF Network Dome Camera
Click to enlarge

NC214-VDZ 4 MP Motorized VF Network Dome Camera

SKU: NC214-VDZ

4 MP Motorized VF Network Dome Camera

Add to wishlist
Add to compare
18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 1/3″ progressive scan CMOS
  • 2560 x 1440@20fps
  • 2.8mm to 12mm manual/motorized (with-Z) varifocal lens
  • H.265+, H.265, H.264+, H.264
  • Dual stream
  • 120db True WDR (Wide Dynamic Range
  • 3D DNR (Digital Noise Reduction)
  • Up to 30 m IR range
  • PoE (Power over Ethernet)
  • IP67

Download

Product Manual

Related Firmware

TitleDescriptionDownload
NC214NC214_5.5.82_190610
Additional information
Image Sensor

1/3" Progressive Scan CMOS

Camera Resolutions

Lens Type

Camera Style

Minimum Illumination

Color: 0.01 Lux @(F1.2

,

AGC ON)

,

0.018 Lux @(F1.6

,

AGC ON)

,

0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

Focal Length

2.8 to 12 mm

Lens Mount

Φ14

IR Range

Up to 30 m

Wavelength

850nm

Video Bit Rate

32 Kbps to 8 Mbps

Max. Resolution

2560 × 1440

Power

12 VDC±25%

,

5.5 mm coaxial power plug PoE (802.3af

,

class 3)

Dimension

Camera: Φ 141 mm x 99.9 mm(5.6" x 3.9") With package: 140 mm x 140 mm x 154 mm(5.5"x 5.5"x 6.1")

Weight

Camera: approx. 820 g (1.8 lb.) With package: approx. 1200 g (2.6 lb.)

Protection

IK10

,

IP67

Material

Metal & Plastic
