NP302A-IR/30X

Please Log in For Pricing

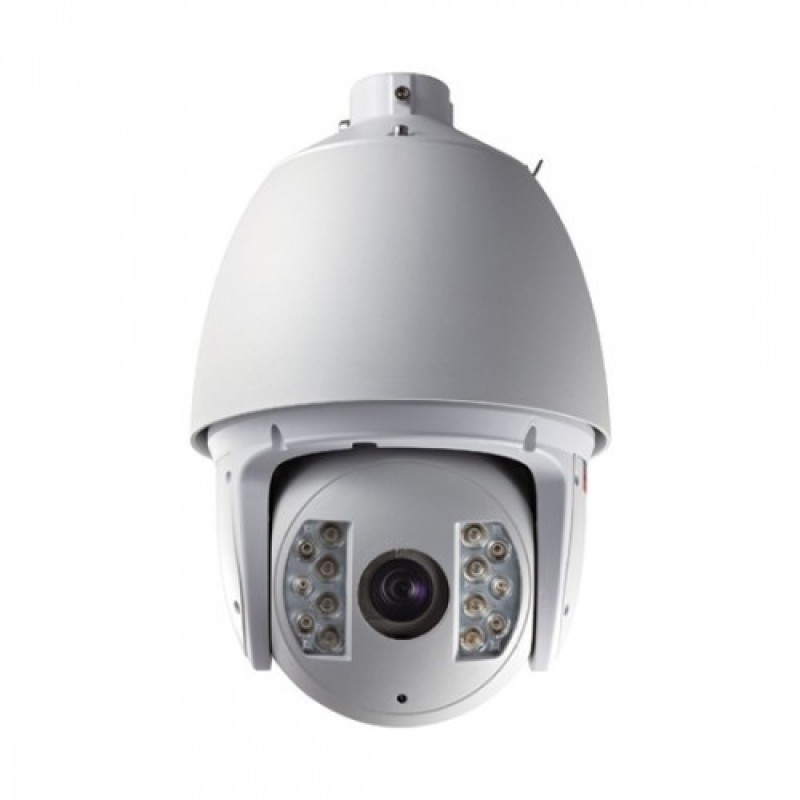

2Mp 30X Full HD Network Auto Tracking Smart IR PTZ Dome Camera

Product specifications
Camera
Image Sensor 1/4” 1Megapixel progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Min. Illumination 0. 01Lux/F1.8( Color), 0Lux/F1.8 (IR on)
S/N Ratio More than 50dB
Video Output N/A
White Balance Auto/Manual
Privacy Masking Up to 4 areas
Frame Rate Main Stream: 720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps)
Shutter Speed 1/25 (1/30)s ~ 1/100,000s
Day & Night IR cut filter with auto switch
IR Range Up to 30m
Automatic Gain Control Auto / Manual
Interface
Video Output N/A
Audio Output 1 Audio output interface, Line level, impedance: 600Ω
Audio Input 1 Mic in/Line in interface, Line input: 2 ~ 2.4V[p-p]; output impedance: 1KΩ, ±10%
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Alarm Input 7 inputs
Alarm Output 2 relay outputs, alarm response actions configurable
Lens
Focal Length 3.6mm (6mm,8mm optional)
Focus Control Manual
Zoom speed Approx.3s (Optical Wide-Tele)
Angle of View 58.3 ~ 3.2 degree (Wide-Tele)
Min. working distance 10 ~1000mm (Wide-Tele)
Aperture range F1.6 ~ F3.5
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Alarm Trigger Motion detection, tampering alarm
Web Browser IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+
General
Power Supply DC12V, PoE (802.3af)
Weight 0.42Kg
Operating Humidity 90% or less
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)
Ingress Protection N/A
Dimensions Φ70mm× 66mm× 155mm
Max. Resolution 2048×1536
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
ROI Yes, up to 4 configurable areas
Compression Standard
Audio Compression G.711/G.722.1/G.726/MP2L2 *only for –S models
Pan and Tilt
Pan / Tilt range Pan: 360° endless;Tilt: -5° ~90°(Auto Flip)
Pan / Tilt speed Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 160°/s Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s
Proportional zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of preset 256
Patrol 8 patrols, up to 32 presets per patrol
Park action Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan
Power-off memory Support
PTZ position display On / off
Preset freezing Support
Integration
Application programming Open-ended API, support Onvif, PSIA and CGI
Description

Description

  • 1/2.8″ progressive scan CMOS
  • 30x optical zoom, 16x digital zoom?
  • Smart tracking, defog, ROI encoding, HLC?
  • Smart IR, 393.7′ IR distance 3-streams?
  • True day/night, 3D DNR, digital WDR?
  • 3D intelligent positioning?
  • 24 VAC / High-PoE power supply
