AR334-4/A 4 Channel 1080P H.265+ 1U 1HDD TVI 4.0 XDVR
Login to see prices SKU: AR334-4/A
| Channels | |
|---|---|
| Case | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog Video Input | 4-ch;BNC interface (1.0 Vp-p ,75 Ω) ,supporting coaxitron connection |
| Video Bit Rate | 32 Kbps to 6 Mbps |
| HDMI Output | 1-ch ,1920 × 1080/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,HDMI/VGA simultaneous output |
| Synchronous playback | 4-ch |
| Capacity | Up to 10 TB capacity for each disk |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| HDD Support | |
| Power | DC 12V |
| Consumption | ≤ 18 W |
| Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight | ≤ 1.16 kg (2.6 lb) |
AR336-4/A 4CH 1 HDD TURBO ACUSENSE DVR
Login to see prices SKU: AR336-4/A
| Channels | |
|---|---|
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels ,it can classify human and vehicle ,and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Encoding resolution | Main stream: 8 MP@8fps /5 MP@12fps /3K@12 fps/4 MP@15fps /8 MP Lite@ 15 fps /3 MP@18 fps 1080p /720p /WD1 /4CIF /VGA /CIF@25 fps (P) /30 fps (N) Encoding resolution *: 8 MP@ 8fpsis only available for channel 1 ,8 MP Lite is only available for channel 2 to channel 4. Sub-stream: WD1 /4CIF /CIF @25 fps (P)/30 fps (N) |
| Video Bit Rate | 32 Kbps to 10 Mbps |
| Stream type | Video, Video & Audio |
| Analog video input | 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| Video output mode | HDMI/VGA simultaneous output |
| Synchronous playback | 4-ch |
| HDD Support | |
| Capacity | Up to 10 TB capacity for each disk |
| Power | DC 12V |
| Consumption (without HDD) | ≤10 W |
| Dimensions | 315×242×45 mm(12.4×9.5×1.8 inch) |
| Weight (without HDD) | ≤1.16 kg(2.6 lb) |
| Case |
KIT/NVR301-04LS3-W/4*IPC322LB-AF28WK-G 1 Hard Disk 4-Channel NVR Kit(WiFi,Including 4 PCS Dome Camera)
Login to see prices SKU: KIT/NVR301-04LS3-W/4*IPC322LB-AF28WK-G
NR21P4-4D 4-CH 1U 1 HDDs 4 POE 4K Network Video Recorder
Login to see prices SKU: NR21P4-4D
| IP Video Input | 4-ch |
|---|---|
| Incoming Bandwidth | 40 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Decoding Format | H.265+/H.265/H.264+/H.264 |
| Recording Resolution | 8 MP /6 MP / 5 MP /4 MP/3 MP / 1080 p/ UXGA /720 p/VGA/ 4CIF / DCIF/2 CIF/ CIF / QCIF |
| Synchronous playback | 4-ch |
| HDD Support | |
| Capacity | Up to 8 TB capacity for each disk |
| Power | DC 48V ,1.35A |
| Dimension | 320×240×48 mm(12.4"×9.4"×1.9") |
| Weight | ≤1.18 kg(without HDD ,2.6 lb.) |
| Channels | |
| Built-in PoE Ports | 4 |
| Case |
NVR301-04B-P4-IQ 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR301-04B-P4-IQ
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 Smart On：2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port ,Max 50W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 12W |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-04LS3-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR301-04LS3-P4
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 1 x 4K@30 ,4 x 5MP@25 ,4 x 4MP@25 ,4 x 3MP@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 2 × USB2.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 54 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 9W |
| Weight (without HDD) | ≤ 0.6Kg (1.32lb) |
| Dimensions | 205mm × 205mm × 46mm (8.1"×8.1"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR301-04S3-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR301-04S3-P4
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | 1 x 4K@30 ,4 x 5MP@25 ,4 x 4MP@25 ,4 x 3MP@25 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width |
| Incoming Bandwidth | 64 Mbps |
| Outgoing Bandwidth | 48 Mbps |
| Remote Users | 128 |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 2 × USB2.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 54 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 9W |
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |

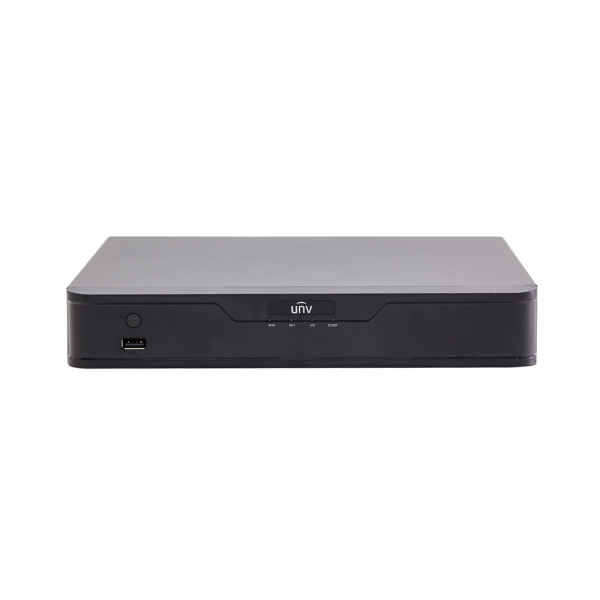

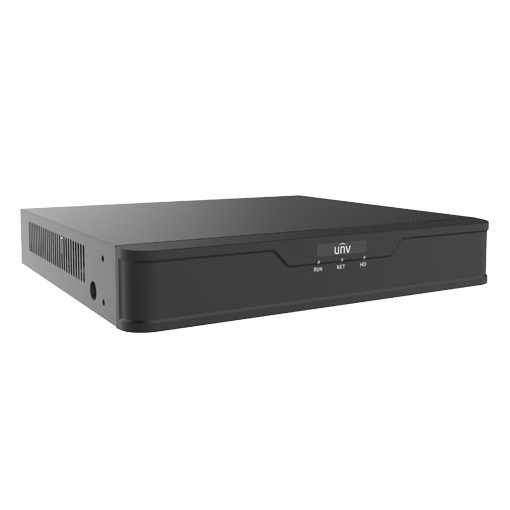

NVR301-04X-P4 4-ch 1-SATA 4K Network Video Recorder
Login to see prices SKU: NVR301-04X-P4
| Channels | |
|---|---|
| Incoming/Outgoing Bandwidth | 80Mbps/64Mbps |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 4-ch |
| Decoding format | Ultra 265/H.265/H.264 |
| HDD Support | |
| Hard Disk Capacity | up to 6TB for each disk |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| Interface Network | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Power | DC 48V ,Power Consumption: ≤9 W (without HDD) |
| Power Consumption | ≤9 W (without HDD) |
| Dimension | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") |
| Weight (without HDD) | 1kg (2.20 lb) |

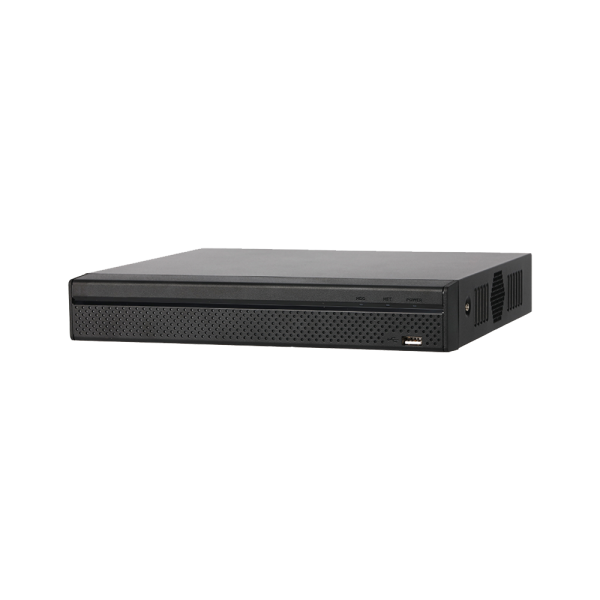

NVR431HP4-4-4K 4 CHANNEL COMPACT 1U 1HDD 4POE NETWORK VIDEO RECORDER
Login to see prices SKU: NVR431HP4-4-4K
| Channels | |
|---|---|
| Main Processor | Industrial-grade processor |
| OS | Embedded Linux |
| Operation Interface | Web; local GUI |
| Performance | 4 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| HDD Support | |
| HDD | 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| Built-in PoE Ports | 4 |
| Network Bandwidth | Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Power | 48 V/53 VDC ,1.25 A/1.13 A |
| Power Consumption | < 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
| Case | |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") |
| Package Dimensions | 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") |
NVR501-04B 1 HDD 4-ch 1U Network Video Recorder
Login to see prices SKU: NVR501-04B
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | N/A |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 12 V/2 A |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Alarm Out | N/A |
| Alarm In | N/A |
| Power Consumption (without HDD) | ≤ 6W |
| Weight (without HDD) | ≤ 0.98Kg (2.16lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-LP4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR501-04B-LP4
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 10W |
| Weight (without HDD) | ≤ 0.8Kg (1.76lb) |
| Dimensions | 270mm × 205mm × 46mm (10.6"×8.1"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-LP4-IQ 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR501-04B-LP4-IQ
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 205mm ×212mm × 46.6mm (8.1" ×8.3" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR501-04B-P4
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 ,2 x 12MP@30 ,2 x 4K@30 ,4 x 5MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 64 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Rear panel: 1 × USB2.0 ,1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 10W |
| Weight (without HDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
NVR501-04B-P4-IQ 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Login to see prices SKU: NVR501-04B-P4-IQ
| Channels | |
|---|---|
| HDD Support | |
| Built-in PoE Ports | 4 |
| Decoding Format | Ultra 265 ,H.265 ,H.264 |
| Decoding Capability | Smart Off: 2 x 16MP@30 ,2 x 12MP@30 ,4 x 4K@30 Smart On: 2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) |
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interfac |
| USB | Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply | DC 48 V/1.35 A |
| PoE Interface | 4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port ,Max 50 W in total |
| Supported Standard | IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) | ≤ 8W |
| Weight (without HDD) | ≤ 1Kg (2.2lb) |
| Dimensions | 260mm ×215mm × 46.6mm (10.2" ×8.5" ×1.8" ) |
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC | Part15 Subpart B |
| Case |
W-12VDC-4P/2A 12VDC/2Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-12VDC-4P/2A
| Channels | |
|---|---|
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤0.65 A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 2A, 4channels for 4 sets load |
| Output Ripple Noise (Vp-p) | 80mVp-p@25℃/ Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac，Output rated load |
| Fuse Type /Rating | PTC 0.65A/60V |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
| Input to output | ≥20MΩ/500VDC@25℃ |
| Dimension | 14.5×10.5×4.3cm |
| Weight | 0.59kg |
W-12VDC-4P/5A 12VDC/5Amps 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-12VDC-4P/5A
| Channels | |
|---|---|
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 5A, 4channels for 4 sets load |
| Output Ripple Noise (Vp-p) | 80mVp-p@25℃/ Rated input voltage & Output rated load |
| reply time of starting up | ≤3S Input 100Vac，Output rated load |
| Type /Rating | PTC 1.6A/60V |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
| Shape Dimension | 24.5×20.8×8.7cm |
| Weight | 2.02KG |
W-UL12VDC-4P/5A UL LISTED 12VDC/5AMPS with 4 PTC OUTPUT CCTV DISTRIBUTED POWER SUPPLY
Login to see prices SKU: W-UL12VDC-4P/5A
| Channels | |
|---|---|
| Specification | 60W 12V 5A 4P |
| Shape Dimension | 24.5×20.8×8.1cm |
| Input Voltage | 110/120VAC |
| Input Voltage Frequency | 60Hz |
| Average Input Current | 100Vac≤1.0A |
| Efficiency | ≥80% |
| Output Voltage | 12VDC±5% |
| Output Current | 5A，4channels for 4 sets load |
| Connection Input | Three-pin socket |
| Connection Output | 4 channels output |
| Input to output | ≥20MΩ/500VDC@25℃ |
| Leakage Current | ≤0.12ma @AC110V/25℃ |
| RG | ≤0.011Ω@DC8V/25A/25℃ |
