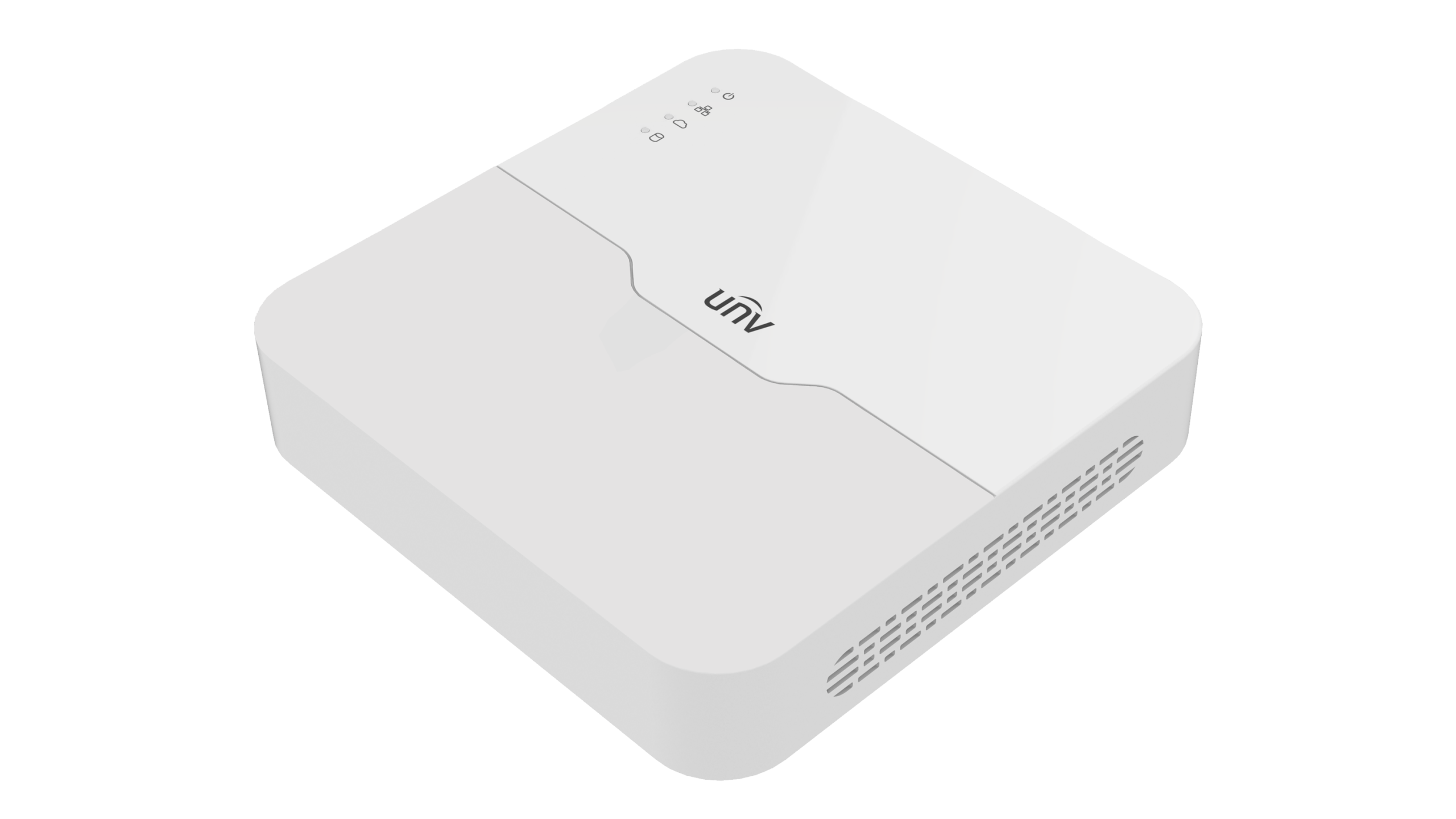

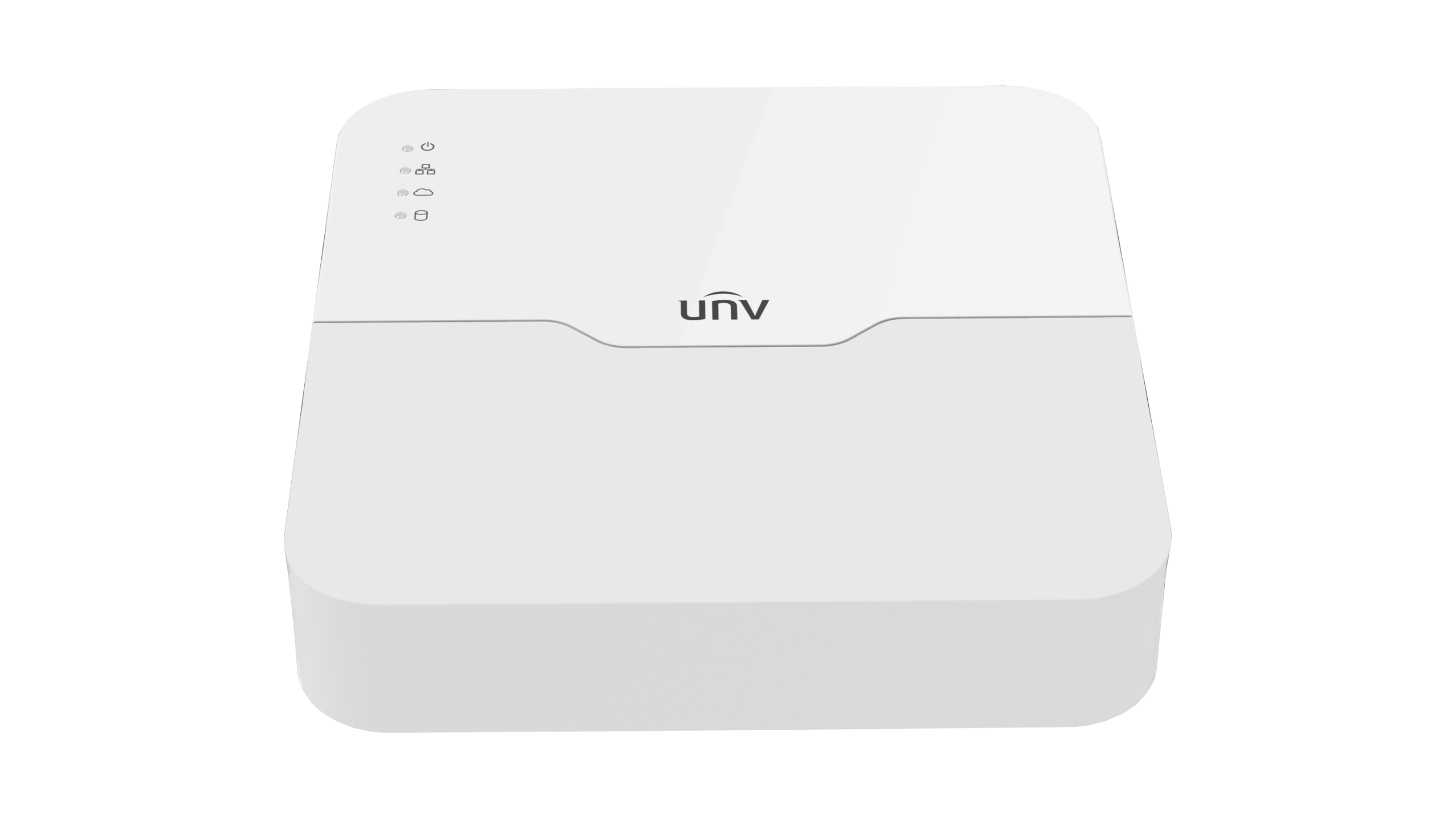

NVR501-04B-LP4 1 HDD 4-ch 4 PoE 1U Network Video Recorder

Name: NVR501-04B-LP4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Brand: UNV
SKU: NVR501-04B-LP4

SKU: NVR501-04B-LP4

1 HDD 4-ch 4 PoE 1U Network Video Recorder

17 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra265/H.265/H.264 video formats
4/8-channel input
Plug & Play with 4/8 independent PoE network interfaces
Support HDMI and VGA simultaneous output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Product Manual

No related firmware found.

Additional information

Channels	4 Channel
HDD Support	1 HDD
Built-in PoE Ports	4
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Ultra 265/H.265: 2 x 16MP@30 , 2 x 12MP@30 , 4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30 , 2 x 12MP@30 , 2 x 4K@30 , 4 x 5MP@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	64 Mbps
Remote Users	128
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interfac
USB	Rear panel: 1 × USB2.0 , 1 × USB3.0
Power Supply	DC 48 V/1.35 A
PoE Interface	4 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port , Max 50 W in total
Supported Standard	IEEE 802.3at , IEEE 802.3af
Power Consumption (without HDD)	≤ 10W
Weight (without HDD)	≤ 0.8Kg (1.76lb)
Dimensions	270mm × 205mm × 46mm (10.6"×8.1"×1.8")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U
