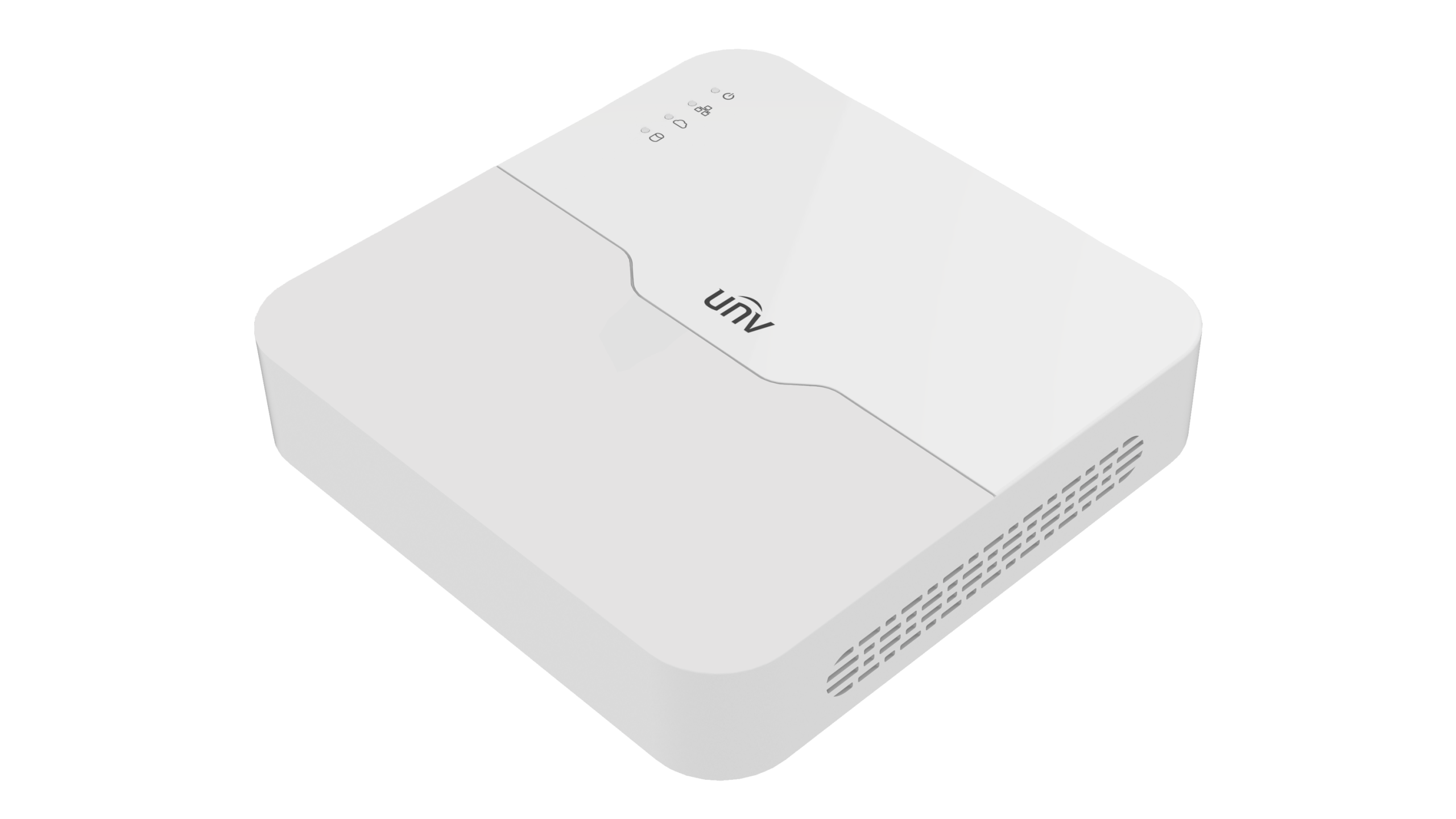

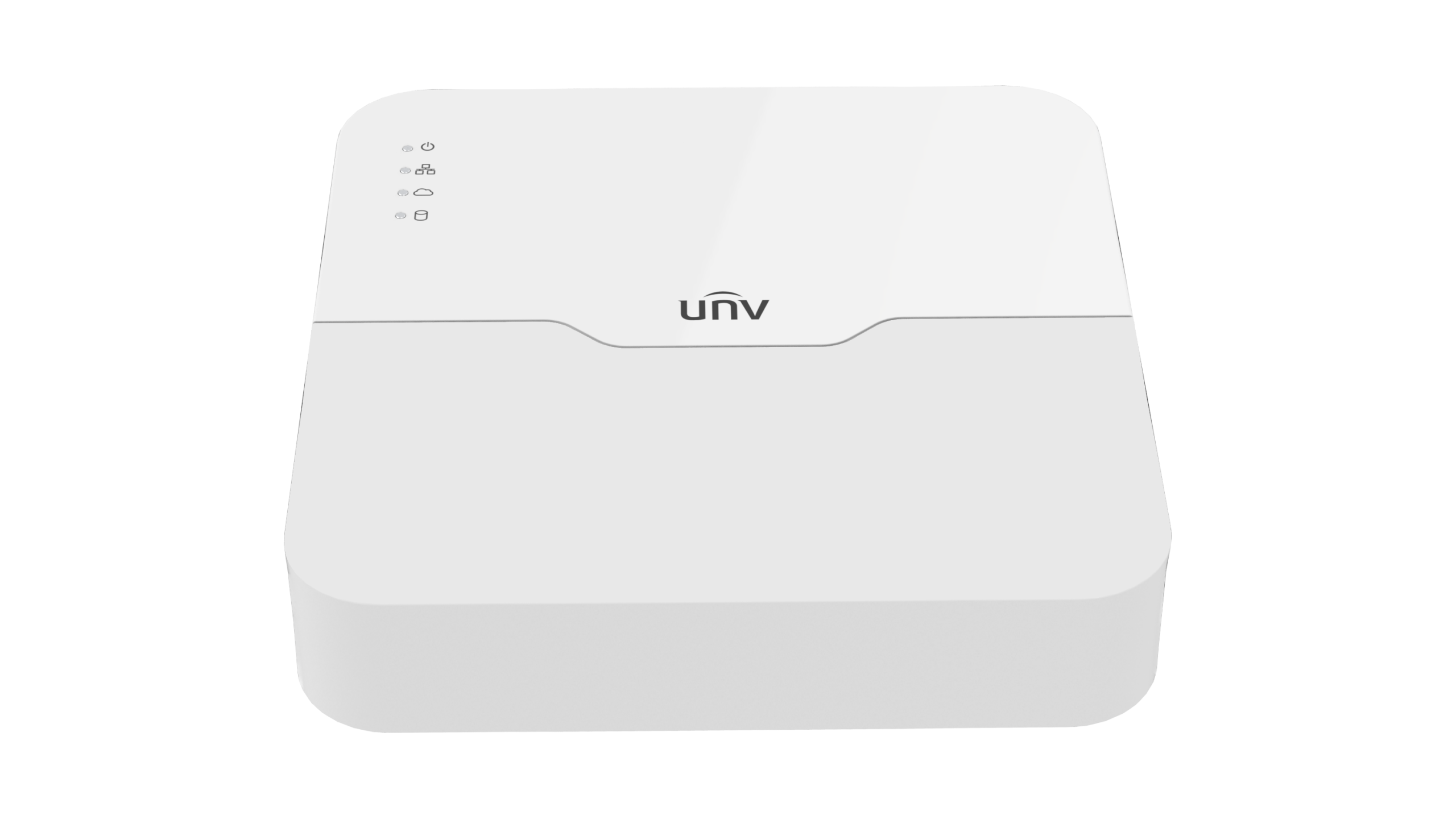

NVR301-04LS3-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder

Name: NVR301-04LS3-P4 1 HDD 4-ch 4 PoE 1U Network Video Recorder
Brand: UNV
SKU: NVR301-04LS3-P4

SKU: NVR301-04LS3-P4

1 HDD 4-ch 4 PoE 1U Network Video Recorder

12 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

No related firmware found.

Additional information

Channels	4 Channel
HDD Support	1 HDD
Built-in PoE Ports	4
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	1 x 4K@30 , 4 x 5MP@25 , 4 x 4MP@25 , 4 x 3MP@25
Decoding Capability Description	The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Incoming Bandwidth	64 Mbps
Outgoing Bandwidth	48 Mbps
Remote Users	128
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
Network Interface	1 RJ45 10 M/100 M self-adaptive Ethernet Interfac
USB	Rear panel: 2 × USB2.0
Power Supply	DC 48 V/1.35 A
PoE Interface	4 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port , Max 54 W in total
Supported Standard	IEEE 802.3at , IEEE 802.3af
Power Consumption (without HDD)	≤ 9W
Weight (without HDD)	≤ 0.6Kg (1.32lb)
Dimensions	205mm × 205mm × 46mm (8.1"×8.1"×1.8")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U
