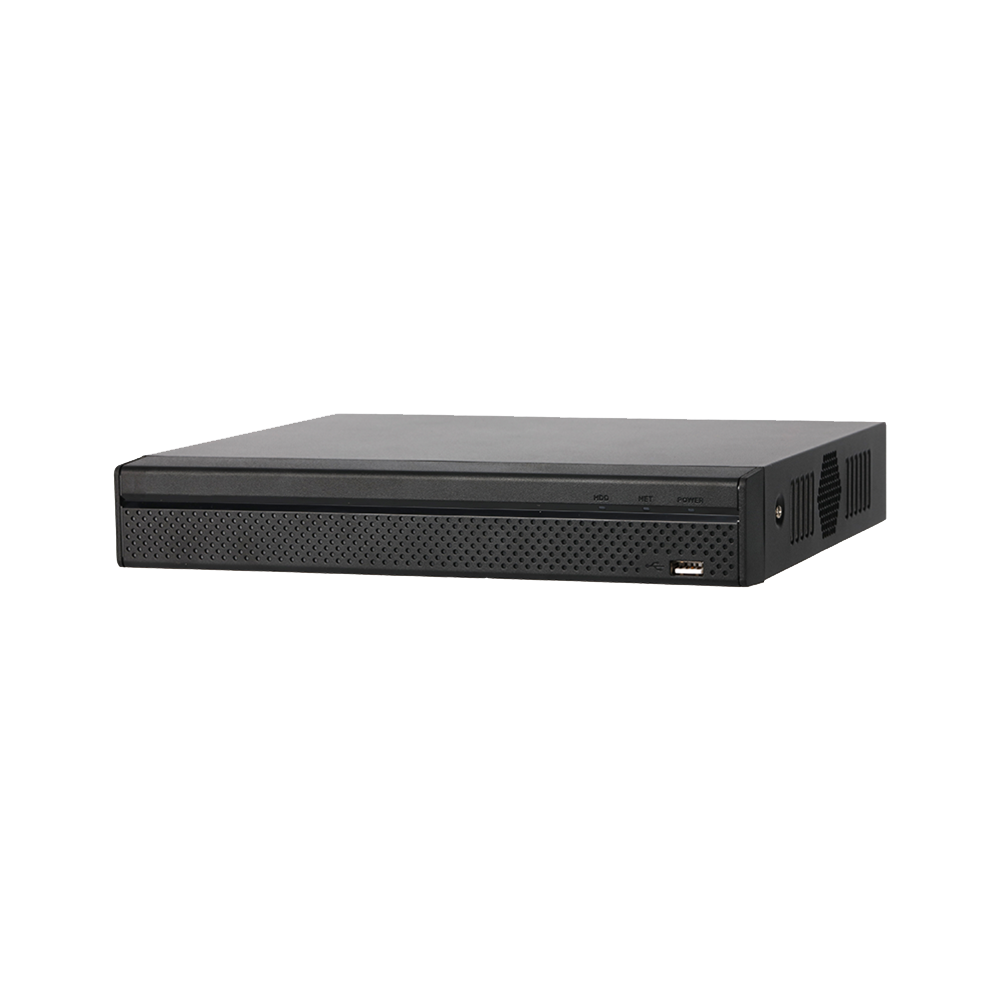

NVR431HP4-4-4K 4 CHANNEL COMPACT 1U 1HDD 4POE NETWORK VIDEO RECORDER

SKU: NVR431HP4-4-4K

4 CHANNEL COMPACT 1U 1HDD 4POE NETWORK VIDEO RECORDER

14 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

No related firmware found.

Additional information

Channels	4 Channel
Main Processor	Industrial-grade processor
OS	Embedded Linux
Operation Interface	Web; local GUI
Performance	4 channels
AI Search	Search for pictures by channel, time and event type
Face Attributes	6 attributes: Gender, age, glasses, expression, mouth mask, and beard
HDD Support	1 HDD
HDD	1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB	2 (1 × front USB2.0; 1 × back USB2.0)
HDMI	1 (supports up to 4K resolution output)
Network	1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
Built-in PoE Ports	4
Network Bandwidth	Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution	8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability	8 × 1080p@30 fps
Video Output	1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Video	Smart H.265/H.265/Smart H.264/H.264/MJPEG
Record Mode	Manual record; alarm recording; SMD recording; smart recording
Storage	Local HDD; network
Power	48 V/53 VDC , 1.25 A/1.13 A
Power Consumption	< 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Case	1U
Net Weight	0.86 kg (1.90 lb)
Gross Weight	1.86 kg (4.10 lb)
Product Dimensions	260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98")
Package Dimensions	117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09")
