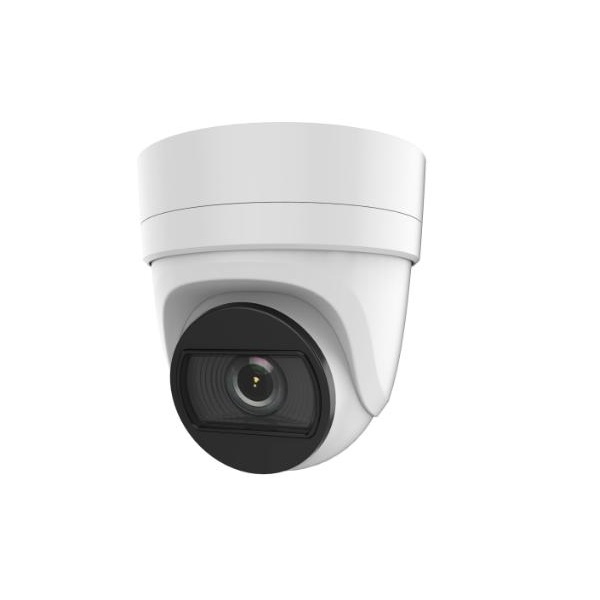

Description
- 1/2.5″ Progressive Scan CMOS
- 3840 × 2160 resolution
- H.265, H.265+
- 120dB WDR
- IP67, IK10
- BLC/3D DNR/ROI
- Smart encoding: Support low bit rate, low latency
- 4 behavior analyses and face detection
Features
Specifications
Camera
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS |
| Min. Illumination | 0. 01Lux/F1.8( Color), 0Lux/F1.8 (IR on) |
| Video Output | N/A |
| Shutter Speed | 1/25 (1/30)s ~ 1/100,000s |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| IR Range | Up to 30m |
| Slow Shutter | Support |
| 3‐Axis Adjustment | Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355° |
| Wavelength | 850nm |
Interface
| Video Output | N/A |
| Audio Interface | 1/1 channel In/Out(-A) |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Reset Button | Yes |
| Alarm Interface | 1x Alarm I/O *only for -S models |
Lens
| Focal Length | 3.6mm (6mm,8mm optional) |
| Max Aperture | F1.8(F1.8/F1.8) |
| FOV | Horizontal field of view: 57.6° to 2.5° (wide-tele)Vertical field of view: 34.4° to 1.4° (wide-tele)Diagonal field of view: 64.5° to 2.9° (wide-tele) |
Video
| Video Bit Rate | H.264H: 16K ~ 8Mbps |
| Region of Interest | Off / On (4 Zone) |
| WDR | 120dB |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removaldetection |
| Face Detection | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)50fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub‐Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
Audio
| Audio Interface | 1/1 channel In/Out(-A) |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | Max. 48kHz |
Network
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
| ONVIF | ONVIF Profile S |
| Network Storage | NAS |
| Alarm Trigger | Motion detection, tampering alarm |
| Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ |
| Simultaneous live view | Up to 6 channels |
| User/Host Level | Up to 32 users.3 levels: Administrator, Operator and User |
| General Function | Flickerless, dual stream, heartbeat, mirror, password protection, watermark |
| Client | CMS, Guarding Vision |
General
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | Max 4W |
| Protection (General) | IEC 60068-2-75 test, Eh, 50J; EN 50102, EN50155, IK10 (-V) |
| Dimensions | Φ70mm× 66mm× 155mm |
| Weight | 0.42Kg |
| Material | Metal |
| Communication Interface | 1 RJ45 10M/100M Ethernet interface |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) |
Video/Audio output
| Encoding Resolution | Main stream: 1080P (non-real-time) / 720P / WD1 / VGA / 4CIF / CIFSub-stream: WD1 (non-real-time)/ 4CIF(non-real-time) / CIF / QCIF / QVGA |
| Max. Resolution | 2048×1536 |
| Digital Noise Reduction | 3D DNR |
| Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Day/night Switch | Auto/Schedule/Triggered by Alarm In |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
Compression Standard
| Video Compression | H.264/MJPEG |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 *only for –S models |
| H.264 Type | Main Profile |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) *only for –S models |
Function
| General Function | Flickerless, dual stream, heartbeat, mirror, password protection, watermark |
