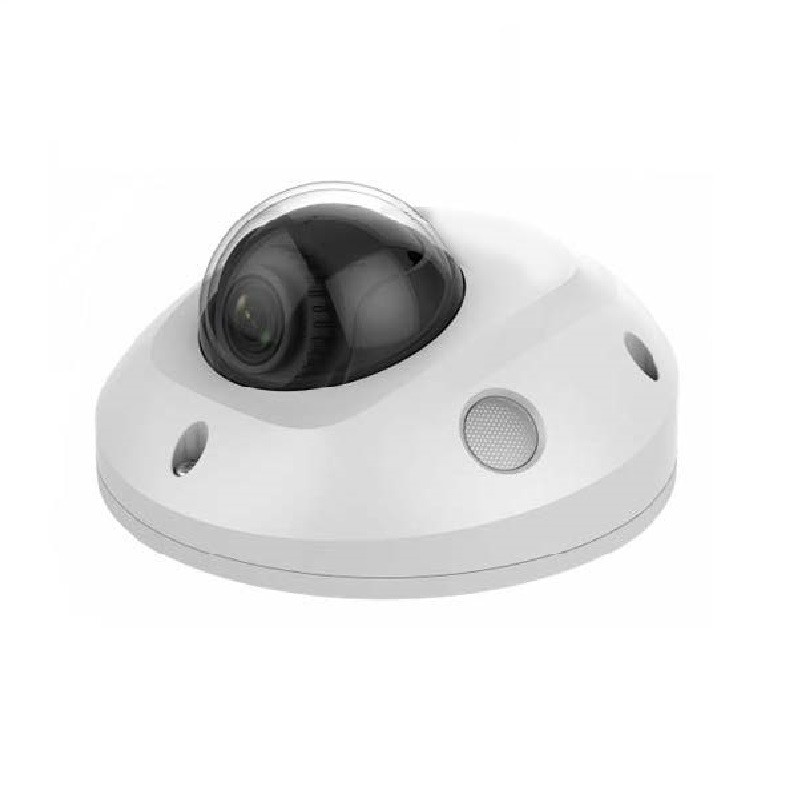

NC328G2-WDA 8 MP AcuSense Fixed mini Dome Network Camera
Click to enlarge

NC328G2-WDA 8 MP AcuSense Fixed mini Dome Network Camera

SKU: NC328G2-WDA

8 MP AcuSense Fixed mini Dome Network Camera

Add to wishlist
Add to compare
16 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 8 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available (-S)
  • Water and dust resistant (IP67) and vandal resistant (IK08)

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

1/1.8" Progressive Scan CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

Max. Resolution

3840 × 2160

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Angle Adjustment

Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Day & Night

IR cut filter

Lens Mount

M12

Max. Aperture

F1.6

Video Compression

Mainstream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Video Bit Rate

32 Kbps to 16 Mbps

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

WDR

120 dB

Audio

Power

12 VDC ±25%

,

0.54 A

,

max. 6.5 W

,

Ø5.5 mm coaxial power plug

,

reverse polarity protection PoE: (802.3af

,

Class 3

,

36 V to 57 V)

,

0.22 A to 0.14 A

,

max. 8 W

Material

Base: aluminum, cover: plastic

Dimension

Ø113.6 mm × 72.6 mm (Ø 4.5" × 2.9")

Weight

Approx. 635 g (1.4 lb.)

Protection

IK10

,

IP67
