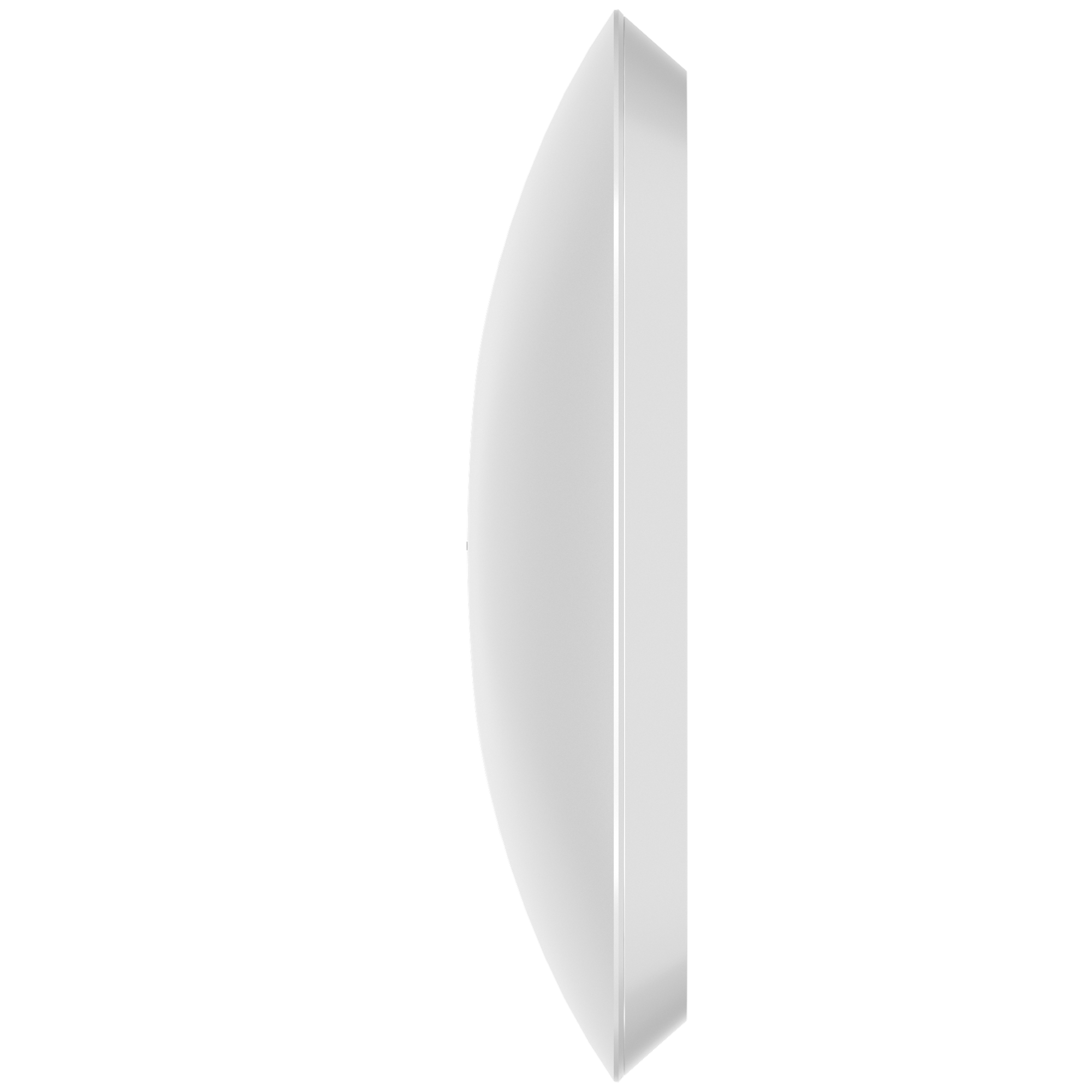

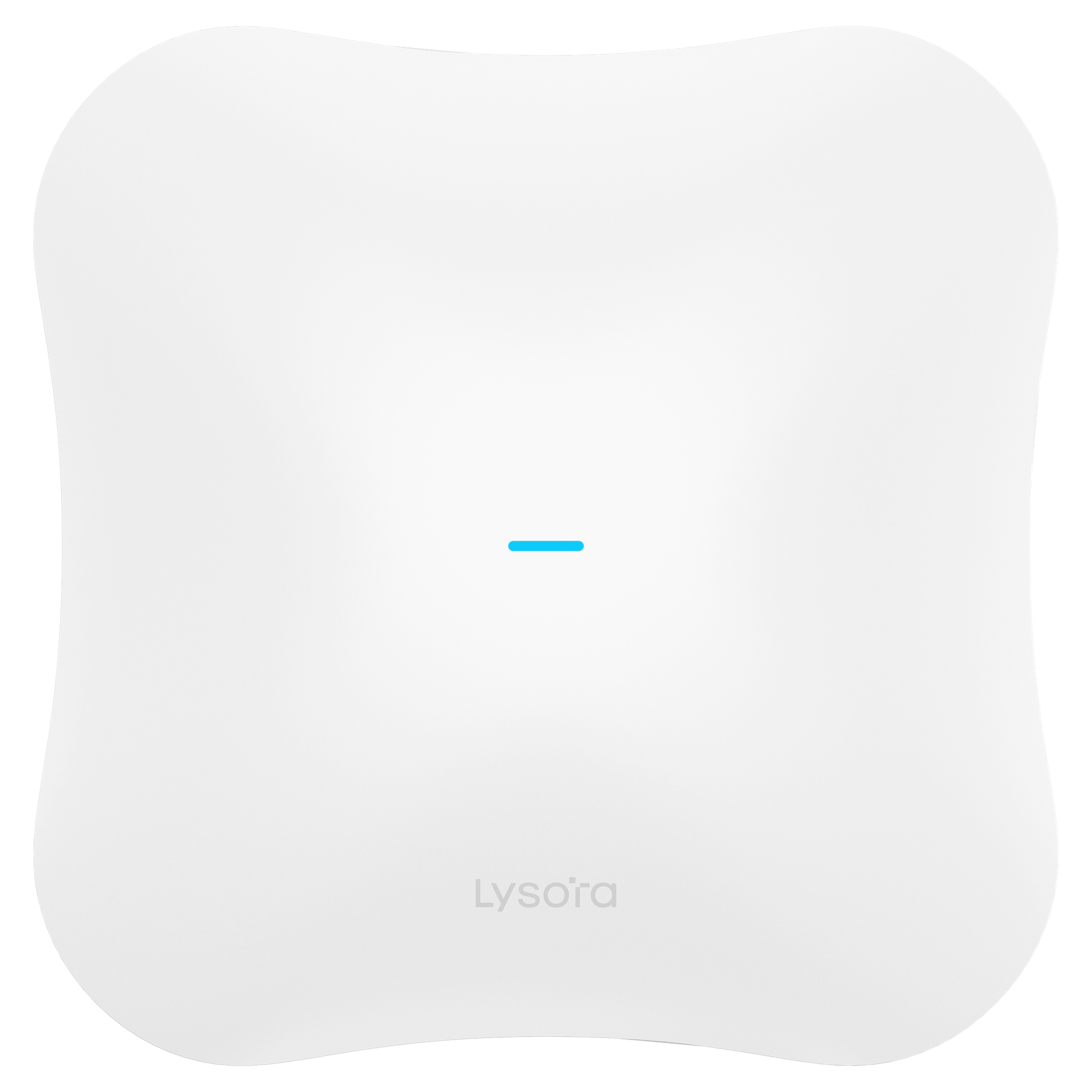

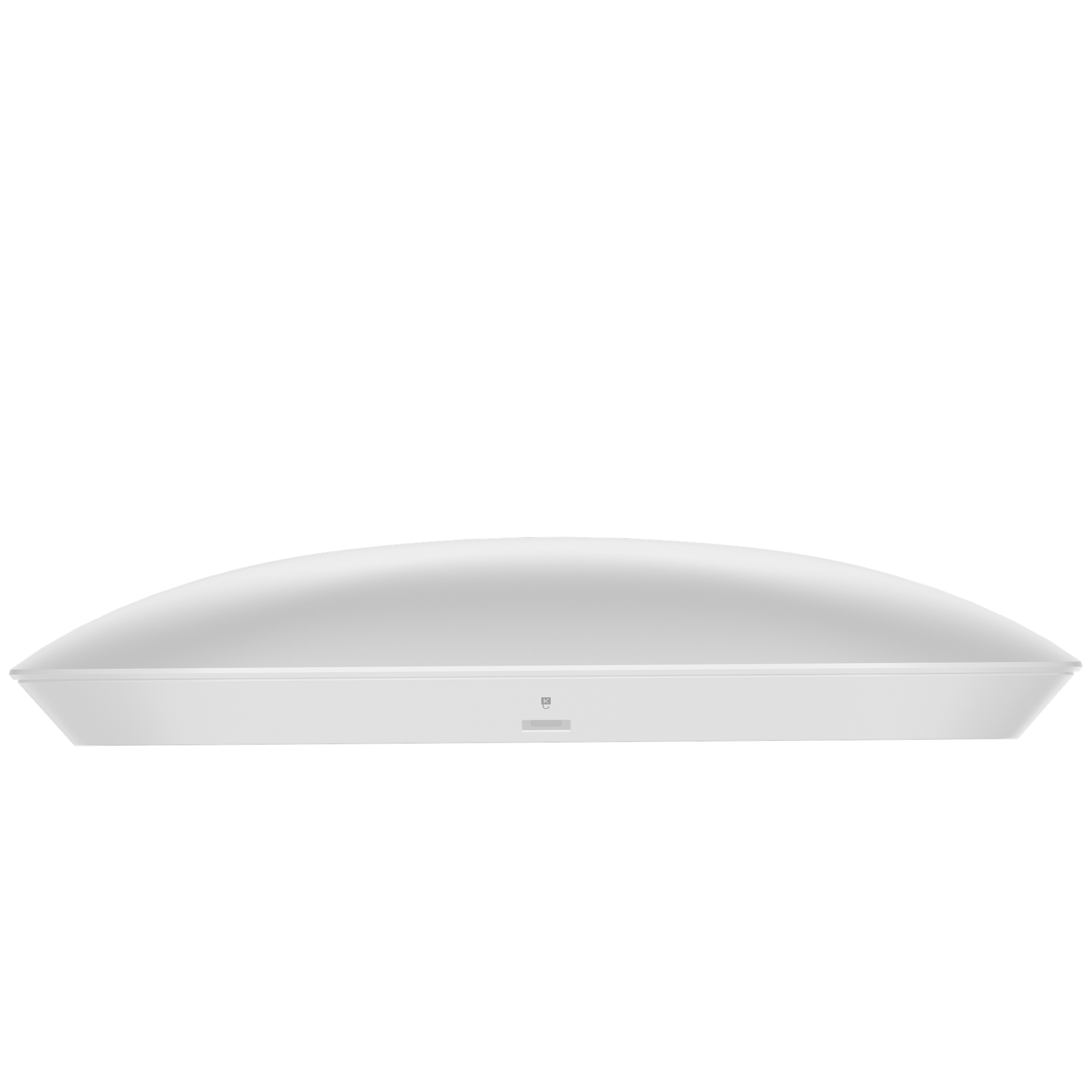

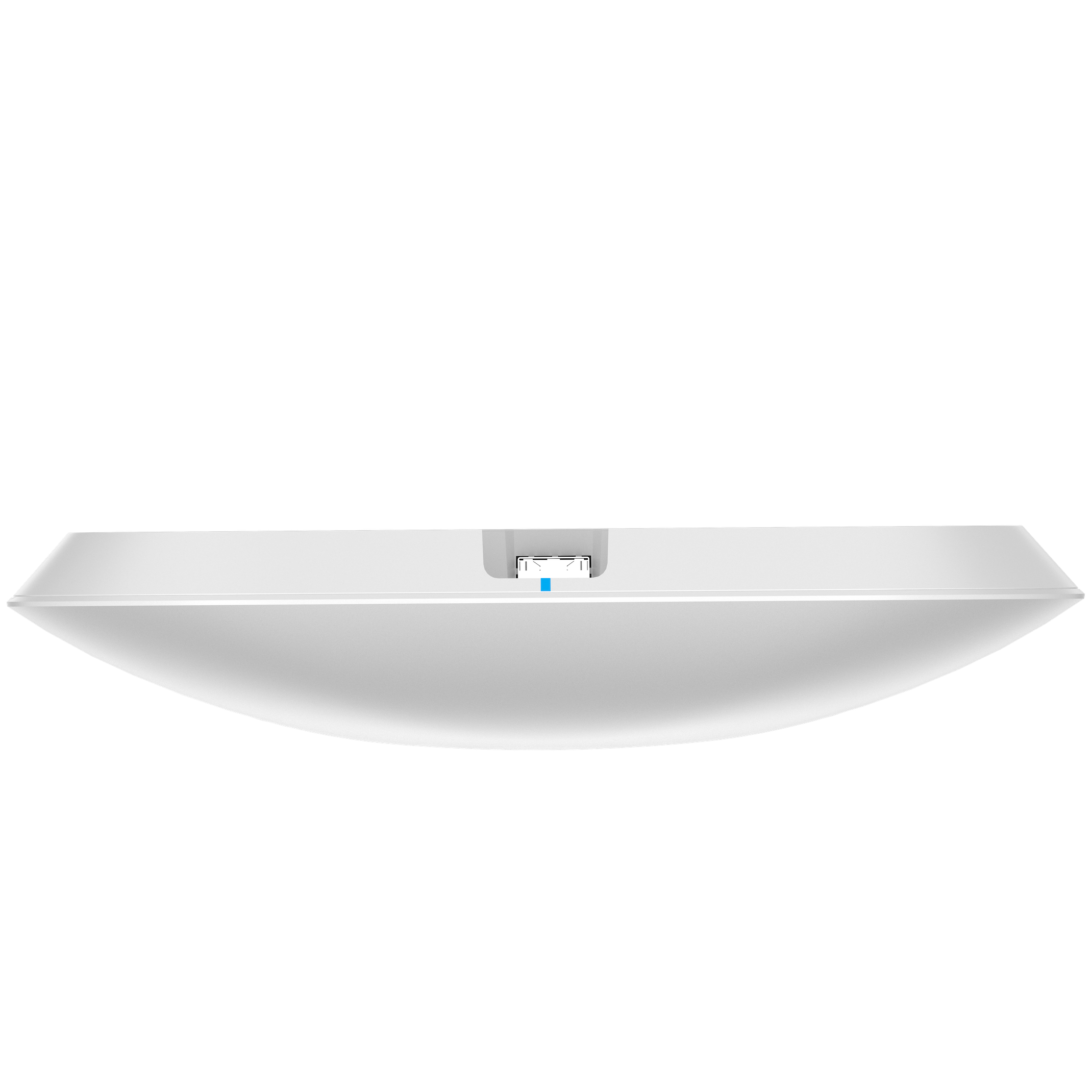

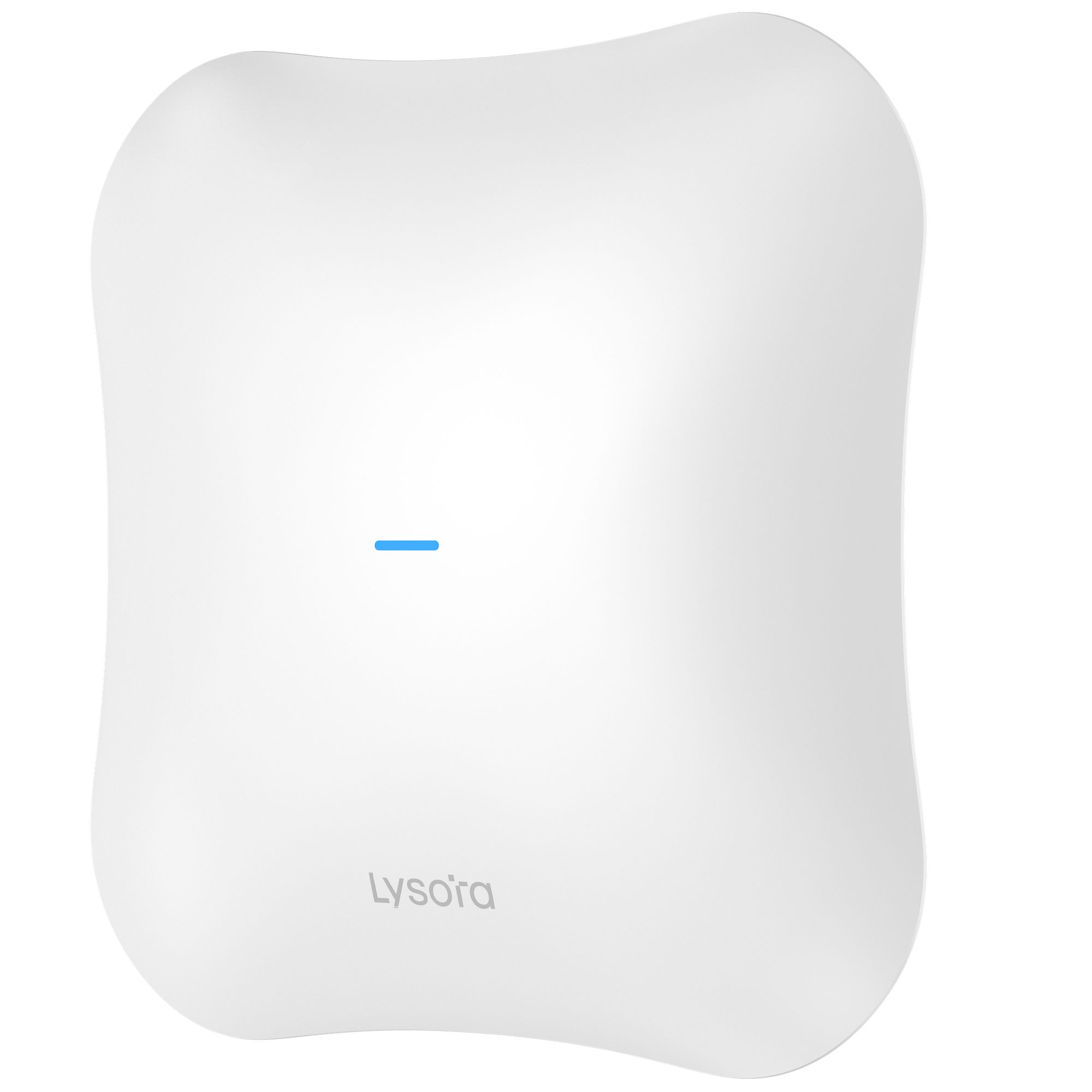

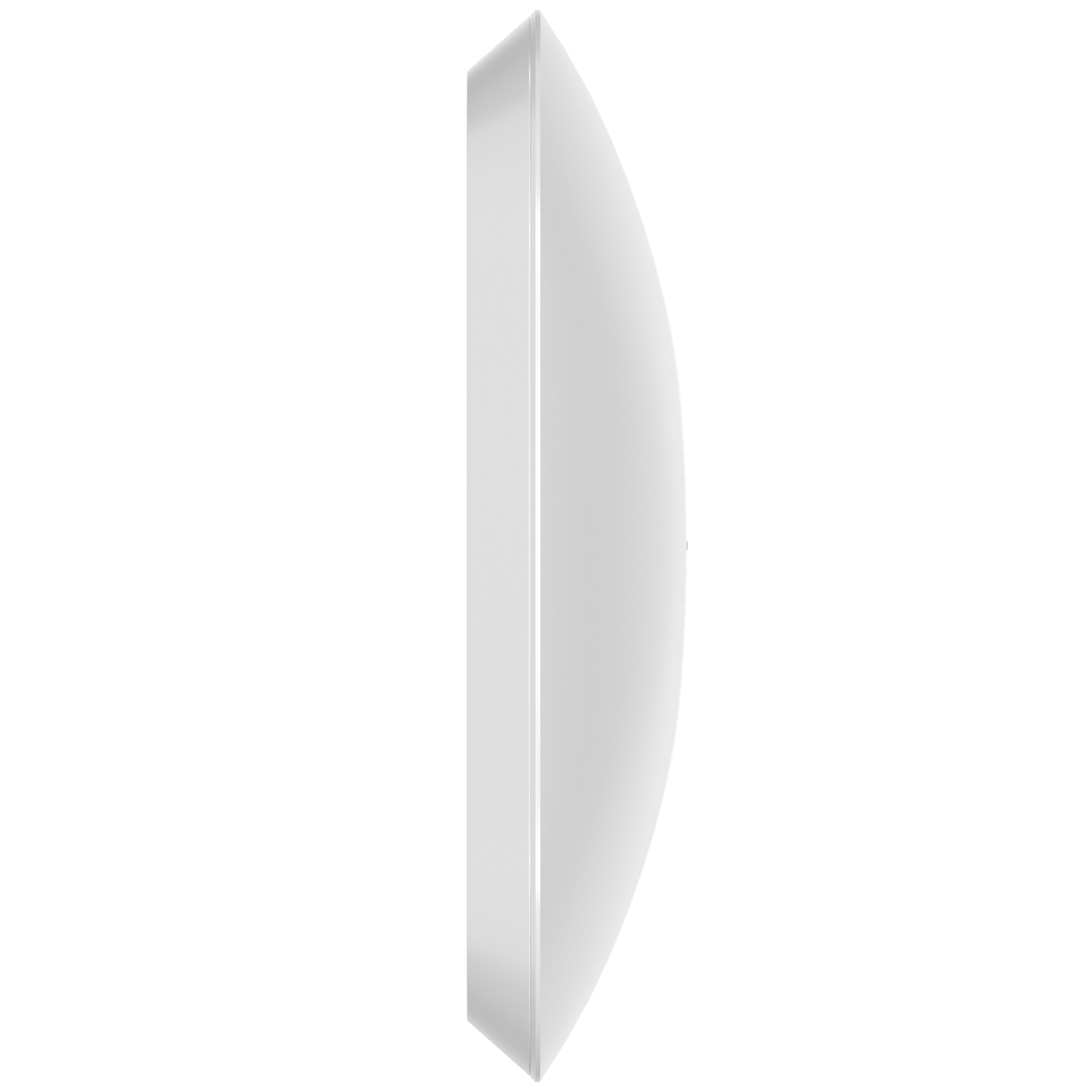

L7Pro Wi-Fi 7 BE14000 Tri-Band Ceiling Mount Access Point

Product Overview

The L7Pro is an elite Wi-Fi 7 BE14000 Tri-Band Ceiling Mount Access Point, representing the pinnacle of wireless performance for high-density, mission-critical environments. By utilizing the full Wi-Fi 7 spectrum across 2.4 GHz, 5 GHz, and 6 GHz bands, it delivers a staggering aggregate data rate of up to 13,657 Mbps. Featuring an 8 spatial stream architecture and a 10G SFP+ uplink, the L7Pro is engineered to eliminate all bottlenecks, providing ultra-low latency via 320 MHz channel bandwidth and 4K-QAM modulation. Managed through a unified cloud ecosystem, it is the ultimate future-proof solution for enterprises requiring massive client capacity and wire-speed wireless connectivity.

Key Features

• Ultimate Tri-Band Wi-Fi 7 Speed: Delivers massive throughput with 8646 Mbps on 6 GHz, 4323 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz for a total of BE14000-class performance.

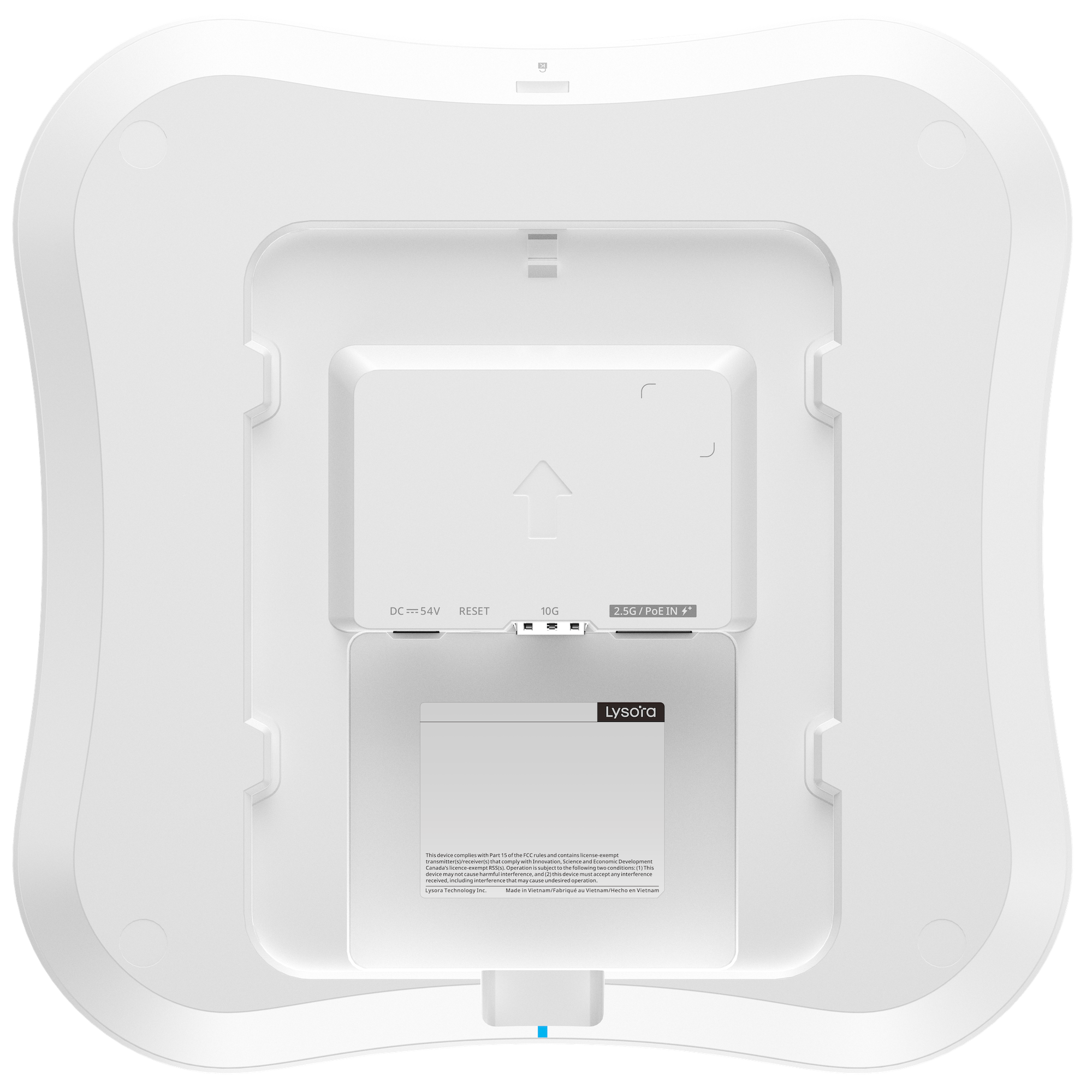

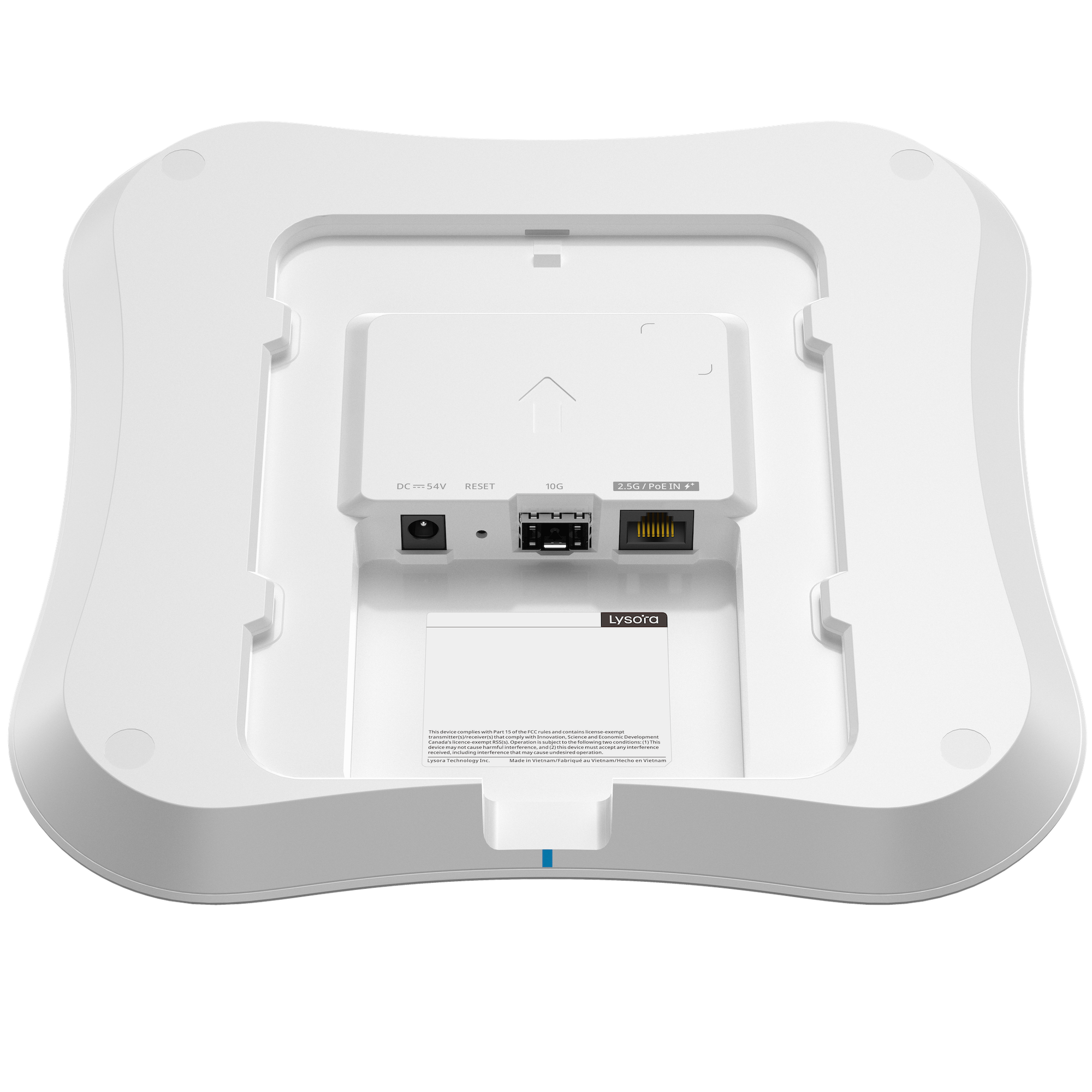

• 10G SFP+ Fiber Uplink: Equipped with a 10GbE SFP+ port and a 2.5GbE RJ45 port to ensure the wired backbone can support the full multi-gigabit wireless capacity.
• Ultra-Wide 320 MHz Channels: Leverages the 6 GHz band with 320 MHz channel bandwidth, doubling the throughput of previous generations for data-heavy applications.
• 8 Spatial Stream Architecture: Features a robust MIMO configuration (3×3 on 6GHz, 3×3 on 5GHz, and 2×2 on 2.4GHz) to provide superior multi-user efficiency.
• Revolutionary MLO & 4K-QAM: Supports Multi-Link Operation (MLO) for concurrent band usage and 4096-QAM for 20% higher data transmission rates than Wi-Fi 6.
• Massive Client Handling: Optimized to support up to 600 concurrent clients, with AI-driven optimization to maintain stability in high-density venues.
• Seamless Enterprise Roaming: Integrated 802.11k/v/r support for Layer 2 and Layer 3 roaming, ensuring persistent connectivity for high-speed mobile assets.
