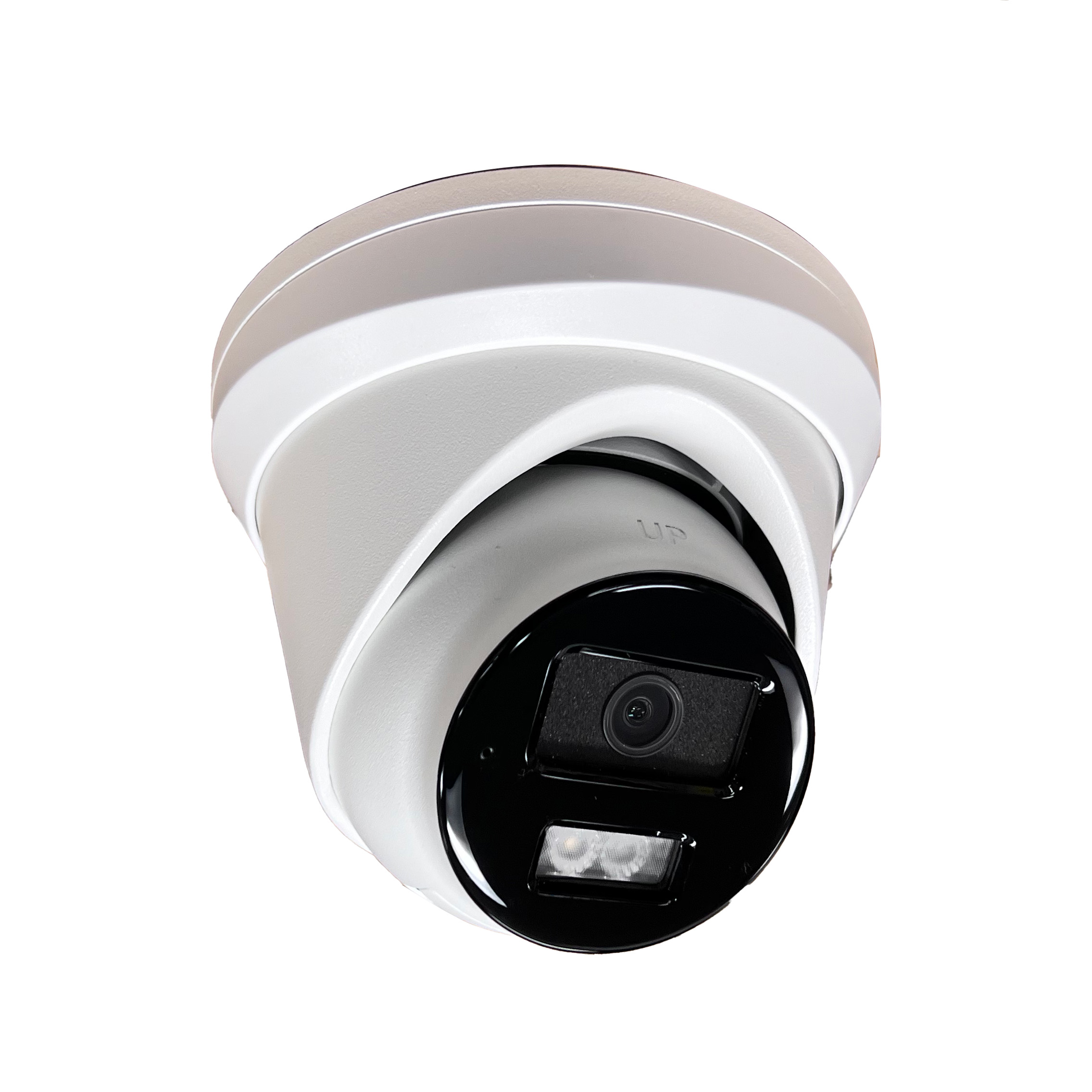

NC228G2-XD-LUJ 8 MP Smart Hybrid Light Fixed Turret Network Camera

SKU: NC228G2-XD-LUJ

8 MP Smart Hybrid Light Fixed Turret Network Camera

13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 8 MP resolution
  • Support Human and Vehicle Detection
  • Smart Hybrid Light: advanced technology with long range
  • Efficient H.265+ compression technology
  • Support on-board storage up to 512 GB (SD card slot) (Optional)
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Lens Type

Image Sensor

1/2.7" Progressive Scan CMOS

Max. Resolution

3840 × 2160

Shutter Speed

1/3 s to 1/100

,

000 s

Minimum Illumination

Color: 0.01 Lux @ (F2.0

,

AGC ON)

,

B/W: 0 Lux with IR

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Focal Length & FOV

2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°

Lens Mount

M12

Max. Aperture

F2.0

Supplement Light Type

IR

,

White Light

Supplement Light Range

Up to 30 m

Audio

Material

Metal & Plastic

Dimension

110 mm × 93 mm ( 4.33" × 3.66")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

With Package Weight

Approx. 586 g (1.3 lb.)

Wavelength

850nm

Video Bit Rate

32 Kbps to 16 Mbps

WDR

120 dB

Power

12 VDC ± 25%

,

0.41 A

,

max. 5 W

,

Ø5.5 mm coaxial power plug

,

reverse polarity protection

,

PoE: IEEE 802.3af

,

Class 3

,

max. 6.5 W

Protection

IP67
