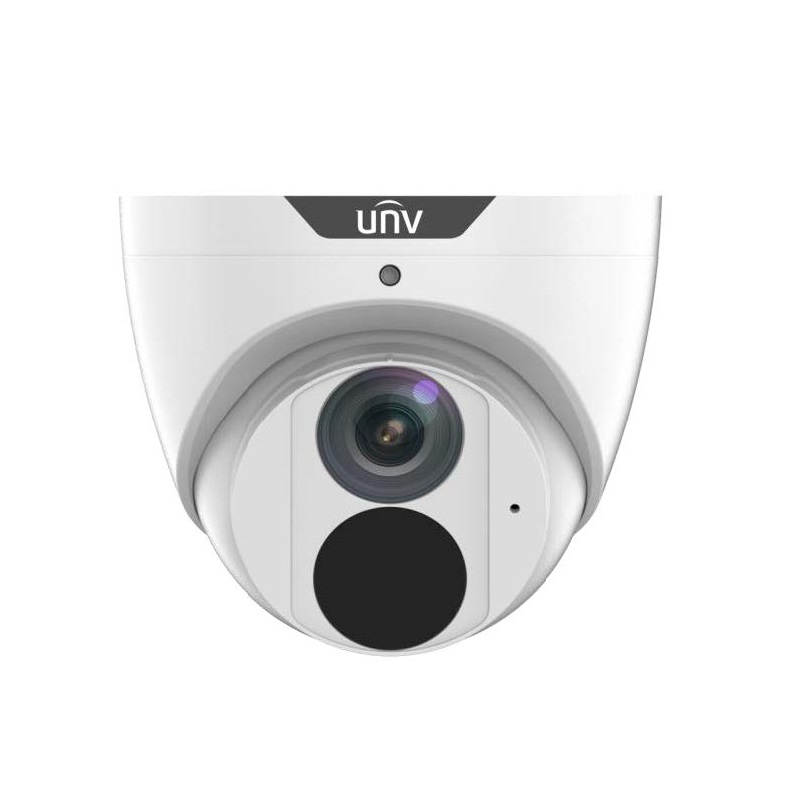

IPC3614SR3-ADF28(40)KM-G 4MP HD IR Fixed Eyeball Network Camera

Name: IPC3614SR3-ADF28(40)KM-G 4MP HD IR Fixed Eyeball Network Camera
Brand: UNV
SKU: IPC3614SR3-ADF28(40)KM-G

SKU: IPC3614SR3-ADF28(40)KM-G

4MP HD IR Fixed Eyeball Network Camera

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 4MP, 1/3”CMOS sensor
4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
Ultra 265, H.265, H.264, MJPEG
Light Hunter technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis

Product Manual

No related firmware found.

Additional information

Camera Resolutions	4 MP
Lens Type	Fixed Lens
Image Sensor	1/3" Progressive Scan CMOS
Lens Size	2.8mm , 4mm
Adjustment angle	Pan: 0° ~ 360°; Tilt: 0° ~ 80°; Rotate: 0° ~ 360°
Shutter Speed	1s to 1/100000s
Minimum Illumination	Support Light Hunter: Color: 0.003 Lux ( F1.6, AGC ON) 0 Lux with IR
Camera Style	Eyeball
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 30 m
Wavelength	850nm
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Edge Storage	MicroSD , up to 128GB
Network Storage	ANR , NAS(NFS)
Interface Network	10M/100M Base-TX Ethernet
Certifications	UL: UL60950-1 FCC: FCC Part 15
Audio	Built-in Mic
Power	DC 12V±25% , PoE (IEEE 802.3af)
Dimension	Φ118 x 95mm (Φ4.6” x 3.8”)
Net Weight	0.35kg (0.77lb)
Material	Metal
Protection	IP67
