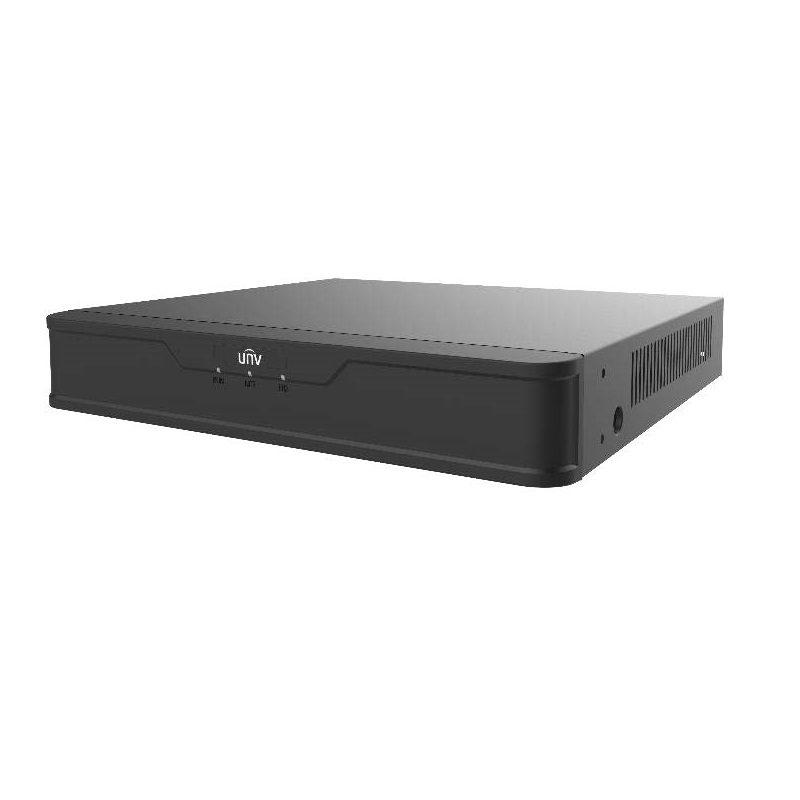

NVR501-8B-P8 8CH 1 SATA Network Video Recorder Up to 8 MP

Name: NVR501-8B-P8 8CH 1 SATA Network Video Recorder Up to 8 MP
Brand: UNV
SKU: NVR501-8B-P8

SKU: NVR501-8B-P8

8CH 1 SATA Network Video Recorder Up to 8 MP

16 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Support Ultra 265/H.265 video formats
4/8-channel input
Plug & Play with 8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
1 SATA HDDs, up to 8TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Product Manual

No related firmware found.

Additional information

IP Video Input	8-ch
Audio Input	1-ch , RCA
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
FTP/Schedule/Event Snapshot	FTP/Schedule/Event Snapshot
Decoding format	Ultra 265/H.265
Live view/Playback	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30
HDD Support	1 HDD
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Interface Network	1 RJ45 10M/100M self-adaptive Ethernet Interface
Power	52V DC/1.8A Power Consumption: ≤ 10W (without HDD)
Dimensions (W×D×H)	260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
Weight (without HDD)	≤ 0.98Kg (2.16lb)
