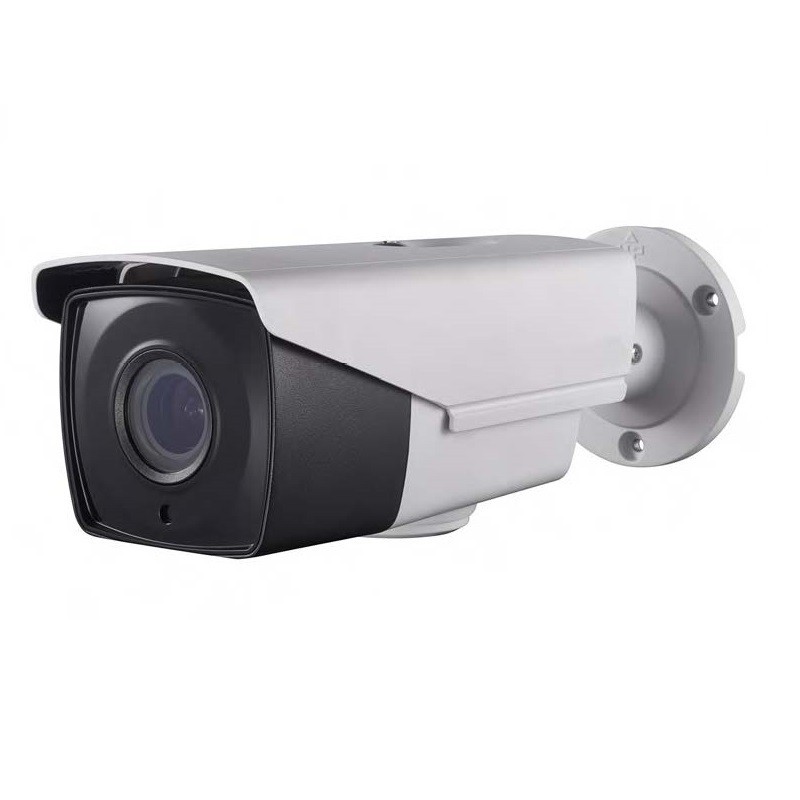

AC344D-VB4Z 2 MP ULTRA LOW-LIGHT MOTORIZED VF EXIR BULLET CAMERA

SKU: AC344D-VB4Z

2 MP ULTRA LOW-LIGHT MOTORIZED VF EXIR BULLET CAMERA

10 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 2.0 megapixel high-performance CMOS
  • HD analog output, up to 1080 p resolution
  • 2.8 mm to 12 mm motorized vari-focal lens
  • True Day/Night
  • 120 dB true WDR
  • OSD menu, DNR, Smart IR
  • EXIR 2.0, up to 40 m IR distance
  • IP67
  • Up the Coax (HIKVISION-C)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Lens Type

Signal System

PAL/NTSC

Frame Rate

PAL: 1080 p@25 fps NTSC: 1080 p@30 fps

Resolution

1920(H)×1080(V)

Minimum Illumination

Color: 0.005 Lux@(F1.8

,

AGC ON)

,

0 Lux with IR

Shutter Speed

PAL:1/25 s to 1/50000 s NTSC: 1/30 s to 1/50,000 s

Slow Shutter

Max.16 times

Lens Size

Horizontal Field of View

32.1° to 103°

Lens Mount

Φ14

Day/Night

IR cut filter

Angle Adjustment

Pan: 0°to 360°

,

Tilt: 0° to 90°

,

Rotate: 0°to 360°

Synchronization

Internal synchronization

Video Output

1 HD analog output

Power

12 VDC±25%‐A: 12 VDC±25%

,

24 AC±25%

Power Consumption

Max.9 W

Protection

IP67

Material

Metal

IR Range

Up to 40 m

Dimensions

92 mm×89 mm×269.6 mm(3.62"×3.5"×3.34")

Weight

Approx.900 g(1.98 lb.)
