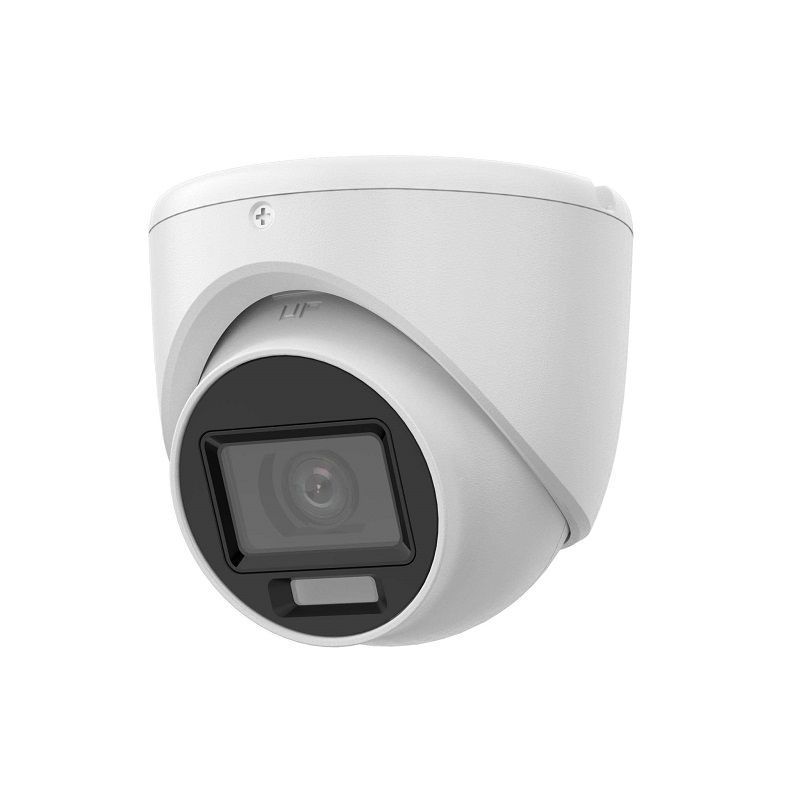

AC324F-MD/LA 2MP HD1080P Turbo 4in1 Mini Turret Smart Hybrid Light 2.8mm
Click to enlarge

AC324F-MD/LA 2MP HD1080P Turbo 4in1 Mini Turret Smart Hybrid Light 2.8mm

SKU: AC324F-MD/LA

2MP HD1080P Turbo 4in1 Mini Turret Smart Hybrid Light 2.8mm

Add to wishlist
Add to compare
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 2 MP, 1920 x 1080 resolution
  • Smart-Hybrid light, optimize your security with flexible lighting options
  • 2.8 mm, 3.6 mm fixed focal lens
  • Up to 20 m IR distance for bright night imaging
  • Up to 20 m white light distance for bright night imaging
  • One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP 67)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Camera Style

Max. Resolution

1920 × 1080

Minimum Illumination

0.02 Lux@(F2.2

,

AGC ON)

,

0 Lux with IR

Shutter Speed

PAL:1/25s to 1/50000s; NTSC: 1/30s to 1/50000s

Day/Night

ICR Cut

Angle Adjustment

Pan: 0 to 360°

,

Tilt: 0 to 75°

,

Rotate: 0 to 360°

Signal System

PAL/NTSC

Lens Type

Focal Length

2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113° 3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

Lens Mount

M12

Supplement Light Type

White Light

,

IR

Supplement Light Range

IR: Up to 20 m White Light: Up to 20 m

Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness,Sharpness,Smart IR

WDR

DWDR

Video Output

Switchable TVI /AHD /CVI /CVBS

Material

Metal

Dimension

85.1 mm×80 mm(3.4"x3.1")

Weight

Max.290 g(0.64 lb.)

Power Supply

12 VDC±25%

,

Max.3.5 W *You are recommended to use one power adapter to supply the power for one camera.

Protection

IP67
