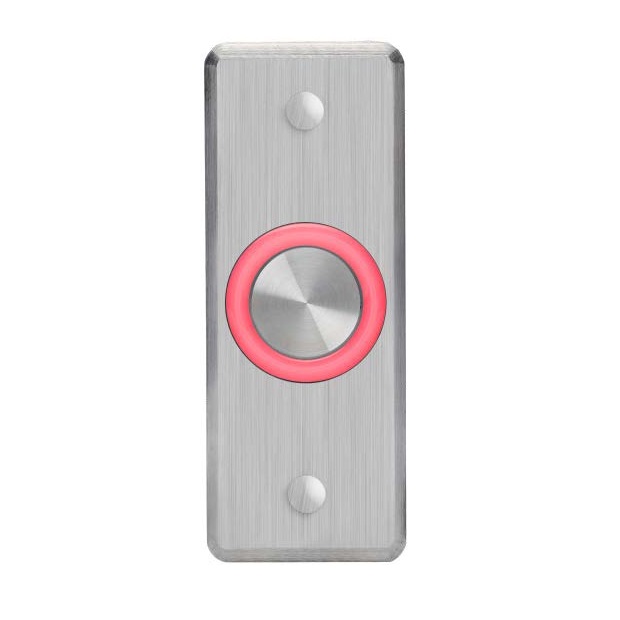

EX-16EO Mullion Non-Sparking Tactile Switch

SKU: EX-16EO

Mullion Non-Sparking Tactile Switch

15 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

MAIN FEATURES

Advanced Soft Touch Piezoelectric Switch
New weatherproof design – water and dust proof, grease, oil and other chemical solvent repellent
Circuit assembly encapsulation
Vandal resistant, stainless steel mounting plate and tactile button with no moving parts
Mounting Method Single Gang: Mounts directly to a US gang switchbox
Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations

PROFESSIONAL GRADE FEATURES

Non-sparking, non-magnetic, corrosion resistant
Light ring status indicator and accidental activation hindrance
Adjustable output and LED indication time of 1 to 60 seconds
Output and indication Toggle option
Jumper Selectable Illumination Status: Red, Green, or No Illumination
One Relay with two 2-Ampere outputs for separate application wiring: N.O. and N.C.

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	10–24 VDC
Outputs	One dry contact relay with two separate outputs One Normally Open, One Normally Closed
Input Current, Max	140 mA @ 24 VDC
Button Switch Lifespan	Over 1 Billion Cycles
Relay Expectancy	100,000 @ 2A 30VDC 500,000 @ 1A 30VDC
Operating Environment	Suitable for indoor and outdoor use (meets IP-65)
Operating Temperature Range	-35˚C to 66˚C (-31˚F to 151˚F)
Material	Stainless steel faceplate and button cup
Dimensions	11.4 x 4.4 x 3.2 cm (4.5 x 1.75 x 1.25 inch)
Weight	173 g (6.1 oz)
Output Mode	Selectable Toggle or timed Pulse
Pulse and LED Indication Time	Selectable 1–60 seconds
Led indicator	Off, Red, and Green
EX-1600	No Text
EX-16E0	“EXIT”
MP-06	External mounting metal box
SYSTEM COMPONENTS	The EX-16 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems.
PRODUCT WARRANTY	5-year limited product warranty
