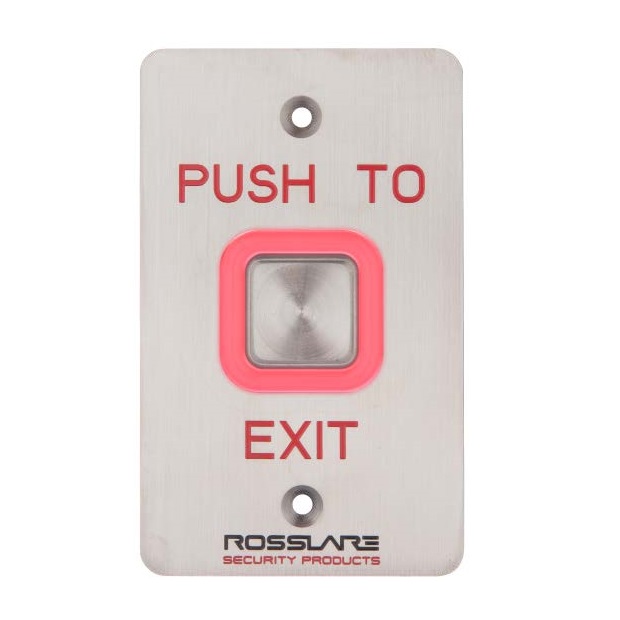

EX-07 Non-Sparking Digital Tactile Switch

SKU: EX-07

Non-Sparking Digital Tactile Switch

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

MAIN FEATURES

Advanced soft touch piezoelectric switch
New weatherproof design-water and dust proof, grease, oil and other chemical solvent repellent
Vandal resistant
Stainless steel mounting plate and tactile button with no moving parts
Mounting Method Single Gang: Mounts directly to a US gang switchbox
Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TüV Rhineland) level business and manufacturing operations

PROFFESIONAL GRADE FEATURES

Non-sparking, non-magnetic, corrosion resistant
Light square status indicator and accidental activation hindrance
Adjustable Output and Led indication time of 1 to 60 seconds
Output and indication toggle option
Jumper selectable illumination status: red, green, or no illumination
Built-in buzzer with alarm input and sound upon button press options
Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
Input for external lighting alerts for evacuation and other applications

Product Manual

No related firmware found.

Additional information

Operating Voltage Range	12-24 VAC / VDC
Outputs (4A, dual 2 + 2)	One dry contact relay with two separate full Form C outputs
Input Current, Max	Standby 15 mA @ 24 VDC Maximum less than 150 mA @ 24 VDC
Button Switch Lifespan	Over 1 Billion Cycles
Relay Expectancy	100,000 @ 2 A 24 VDC 500,000 @ 1 A 24 VDC
Operating Environment	Suitable for indoor and outdoor use (meets IP-65)
Operating Temperature	-35˚C to 66˚C (-31˚F to 151˚F)
Material	Stainless steel faceplate and butt
Dimensions	11.4 x 7 x 3.2 cm (4.5 x 2.75 x 1.25 in.)
Weight	277 g (9.8 oz)
Output Mode	Selectable Toggle or timed Pulse
Input Mode	Selectable LED control or alarm
Pulse and Led indication time	Selectable 1-60 seconds
Led indicator	Off, Red, and Green
Buzzer mode	Off, On (selectable between alarm input mode and buzzer beep upon button press mode)
External lighting alert input	For evacuation and other applications
EX-0700	No Text
EX-07E0	“PUSH TO EXIT”
MP-06	External mounting metal box
SYSTEM COMPONENTS	The EX-07 is compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems.
PRODUCT WARRANTY	5-year Limited Product Warranty
