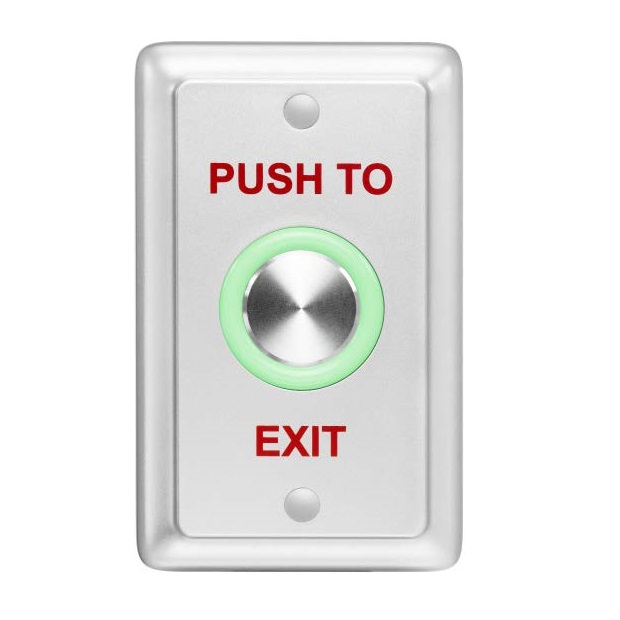

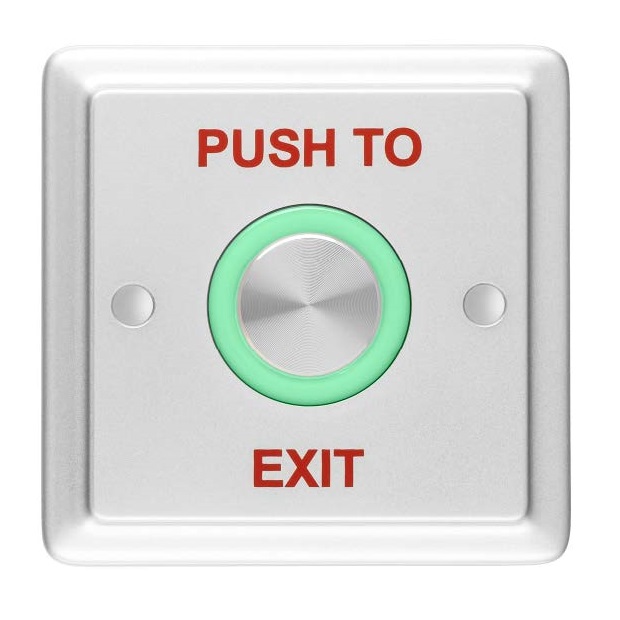

EX-H04/M04 Sensitive Piezoelectric Button Switches
EX-H04/M04 Sensitive Piezoelectric Button Switches
Click to enlarge
EX-H04/M04 Sensitive Piezoelectric Button Switches
EX-H04/M04 Sensitive Piezoelectric Button Switches

EX-H04/M04 Sensitive Piezoelectric Button Switches

ROSSLARE
SKU: EX-H04/M04

Call for price

Sensitive Piezoelectric Button Switches

Add to wishlist
Add to compare
17 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

MAIN FEATURES

  • Advanced soft touch piezoelectric switch
  • New weatherproof design- water and dust proof
  • Circuit assembly encapsulation
  • No moving parts
  • Mounting Method- Single Gang: Mounts directly to a US (EX-H04) or UK (EX-M04) gang switchbox

PROFESSIONAL GRADE FEATURES

  • Light ring status indicator and accidental activation hindrance
  • External LED control wire

Download

Product Manual

No related firmware found.
Additional information
Operating Voltage Range

8– 30 VDC

Switch Voltage

30 VDC [OC]

Outputs

Normally open (transistor output open collector)

Wire Leads (Switch Output)

2 x 24 AWG 280 mm (11.02 in.) length (UL 1569) blue wires

'+VDC and Ground

Red and black wires for LED Power

Button Switch Lifespan

Over 1 million cycles

Operating Environment

Suitable for indoor and outdoor use

Operating Temperature Range

-10°C to 50°C (14°F to 122°F)

Dimensions

EX-H04: 114 x 70 x 10 mm (4.5 x 2.8 x 0.4 in.) EX-M04: 92 x 92 x 10 mm (3.6 x 3.6 x 0.4 in.)

Weight

EX-H04: 50 g (1.8 oz.) EX-M04: 55 g (1.9 oz.)

SYSTEM COMPONENTS

The EX-H04 and EX-M04 are compatible with all switch operated electrical devices. The unit also works with all of Rosslare’s Access control units as well as all standard access control systems.

PRODUCT WARRANTY

2-year limited product warranty
