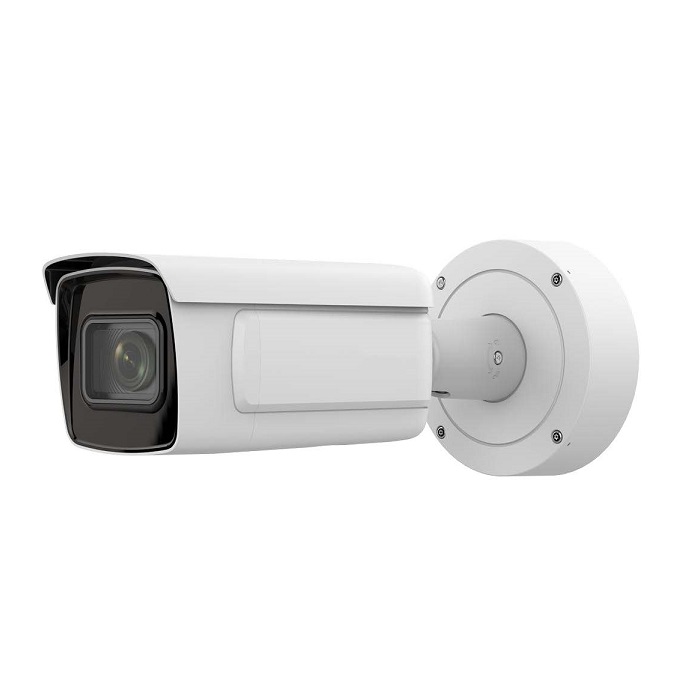

NC524-VBA32-LPR 4 MP ANPR IR Varifocal Bullet Network Camera
Click to enlarge

NC524-VBA32-LPR 4 MP ANPR IR Varifocal Bullet Network Camera

SKU: NC524-VBA32-LPR

4 MP ANPR IR Varifocal Bullet Network Camera

Add to wishlist
Add to compare
18 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to 140 dB WDR technology
  • License Plate Recognition
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67) and vandal proof (IK10)

Download

Product Manual

No related firmware found.
Additional information
Camera Resolutions

Image Sensor

1/1.8" Progressive Scan CMOS

Camera Style

Lens Type

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

1 s to 1/100,000 s

Aperture

2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73

Video Main Stream

50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

Video Bit Rate

32 Kbps to 8 Mbps

Wavelength

850nm

WDR

140 dB

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Material

Aluminum alloy body

Power

12 VDC ± 20%

Dimension

Without -Y: 144 × 347 mm (5.7" × 13.7") With -Y: 140 × 351 mm (5.5" × 13.8")

Package Dimension

405 × 190 × 180 mm (15.9" × 7.5" × 7.1")

Protection

IK10

,

IP67
