IPC-WDB5MP 5MP OEM WIFI DOOR BELL
Login to see prices SKU: IPC-WDB5MP
| Image Sensor | 1/2.7-in. 5MP CMOS |
|---|---|
| Effective Pixels | 2560 x 1920 |
| Electronic Shutter Speed | Auto/Manual 1/3 s to 1/100 ,000 s |
| IR Distance | 5.0 m (16.50 ft) |
| Camera Resolutions | |
| Lens Type | |
| Video Compression | H.265 ,H.264 |
| Video Bit Rate | H.264: 32 kbps to 8192 kbps H.265: 32 kbps to 8192 kbps |
| Audio | , |
| Two-way Talk | Three (3) built-in pre-recorded messages plus three (3) customized recorded messages |
| Edge Storage | Micro SD Card Slot ,maximum 256 GB |
| Power Supply | 12 VDC to 24 VDC or 16 VAC to 24 VAC ,0.8 A USB (5 VDC±5% ,2 A) |
| Protection | IP65 |
| Casing | Plastic |
| Dimensions (L x W x H) | 130.0 mm x 45.0 mm x 22.50 mm (5.12 in. x 1.77 in. x 0.88 in.) |
| Net Weight | 0.11 kg (0.24 lb) |
| Gross Weight | 0.51 kg (1.12 lb) |
NVR424H-32-4K 32 CHANNEL 1.5U 4K&H.265 LITE NETWORK VIDEO RECORDER
Login to see prices SKU: NVR424H-32-4K
| Main Processor | Quad-core embedded processor |
|---|---|
| Operating System | Embedded LINUX |
| IP Camera Input | 32 Channel |
| Two-way Talk | 1 Channel Input ,1 Channel Output ,RCA |
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps |
| Multi-screen Display | 32CH: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Channels | |
| Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD |
| USB | 2 ports(1 USB2.0, 1 USB3.0) |
| RS232/ RS485 | 1 Port ,for PC Communication and Keyboard/ 1 Port ,for PTZ Control |
| Compression | H.265/ H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Record Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Playback | 1/4/9/16 |
| HDD Support | |
| Power | 100 to 240 VAC |
| Power Consumption | < 11.7W(without HDD) |
| Dimensions | 1.5U, 440mm×411.1mm×76mm(17.3" x 16.2" x 3.0") |
| Case | |
| Net Weight | 4.5kg (9.9 lb) (without HDD) |
| Gross Weight | 7kg(15.4 lb)(without HDD) |
| CE/ FCC/ UL | CE: EN55032, EN55024, EN50130-4, EN60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 UL: UL60950-1 |
NVR424HP6-16-4K 16 CH 1.5U 4K 16PoE 4HDD H.265 Network Video Recorder
Login to see prices SKU: NVR424HP6-16-4K
| Channels | |
|---|---|
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 Channel |
| Two-way Talk | 1 Channel Input ,1 Channel Output ,RCA |
| Decoding Capacity | 2ch@4K 30fps, 8ch@1080P 30fps |
| Multi-screen Display | 16CH: 1/4/8/9/16 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Interface Network | 1 RJ-45 Port (10/100/1000Mbps) |
| Built-in PoE Ports | 16 |
| HDD Support | |
| Internal HDD | 4 SATA III Ports, Up to 6 TB capacity for each HDD |
| Compression | H.265/ H.264 |
| Resolution | 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Recorde Rate | 200Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop |
| USB | 2 ports(1 USB2.0, 1 USB3.0) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Playback | 1/4/9/16 |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: <13.7W (Without HDD) PoE: Max 25.5w for single port, 150w in total |
| Case | |
| Dimensions | 1.5U, 440mm×411.1mm×76mm(17.3" x 16.2" x 3.0") |
| Net Weight | 4.7kg (10.4lb) (without HDD) |
| Gross Weight | 7.5kg(16.5 lb)(without HDD) |
NVR431HP4-4-4K 4 CHANNEL COMPACT 1U 1HDD 4POE NETWORK VIDEO RECORDER
Login to see prices SKU: NVR431HP4-4-4K
| Channels | |
|---|---|
| Main Processor | Industrial-grade processor |
| OS | Embedded Linux |
| Operation Interface | Web; local GUI |
| Performance | 4 channels |
| AI Search | Search for pictures by channel, time and event type |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| HDD Support | |
| HDD | 1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| Network | 1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| Built-in PoE Ports | 4 |
| Network Bandwidth | Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Power | 48 V/53 VDC ,1.25 A/1.13 A |
| Power Consumption | < 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
| Case | |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") |
| Package Dimensions | 117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") |

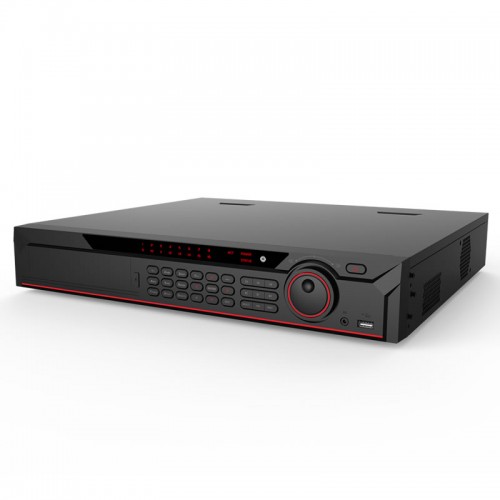

NVR522HP6-32-4KE 32 CHANNEL 1U 8 POE 4K&H.265 PRO NETWORK VIDEO RECORDER
Login to see prices SKU: NVR522HP6-32-4KE
| Channels | |
|---|---|
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 32 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Decoding Capacity | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Multi-screen Display | 32CH: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Interface Network | 1 RJ-45 Port (10/100/1000Mbps) |
| Built-in PoE Ports | 8 |
| HDD Support | |
| Internal HDD | 2 SATA III Ports, Up to 10 TB capacity for each HDD |
| USB/ RS232/ RS485 | USB: 2 USB Ports (1 Rear USB 3.0 ,1 Front USB 2.0 ) RS232: 1 Port ,for PC Communication and Keyboard RS485: 1 Port ,for PTZ Control |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Sync Playback | 32CH: 1/4/9/16 |
| Power | 100 to 240 VAC |
| Power Consumption | NVR: <14.5W (Without HDD) PoE: Max 25.5W for single port, 130W total rated power, 80% control for protection |
| Case | |
| Dimensions | 1U, 375mm x 326.5mm x 53mm ; (14.8" x 12.9" x 2.1") |
| Net Weight | 2.6kg (5.7 lb) (without HDD) |
| Gross Weight | 4kg (8.8 lb) (without HDD) |
| CE | EN55022, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
