2 HDD Security Network Video Recorders (NVR/DVR)

Showing 1–18 of 28 results

Show sidebar

Show 9 12 18 24

AR324-8/K2 8 Channel 1080P 1U 2HDD Bay TVI 4.0 XDVR

Add to compare

Quick view

Add to wishlist

AR324-8/K2 8 Channel 1080P 1U 2HDD Bay TVI 4.0 XDVR

Rated 0 out of 5

SKU: AR324-8/K2

Channels	8 Channel
Video compression	H.265+/H.265/H.264+/H.264
Analog video input	8-ch BNC interface (1.0 Vp-p , 75 Ω) , supporting coaxitron connection
IP Video Input	2-ch
Audio compression	G.711u
HDMI/VGA output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio bit rate	64 Kbps
Stream type	Video, Video & Audio
Encoding resolution	When 1080p Lite mode not enabled: 3 MP /1080p /720p/VGA /WD1 /4CIF /CIF; When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite /VGA /WD1 /4CIF/CIF
Synchronous playback	8-ch
Video Bit Rate	32 Kbps to 6 Mbps
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
HDD Support	2 HDD
Capacity	Up to 6 TB capacity for each disk
Network interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Power	DC 12V
Consumption	≤ 7.5 W
Dimensions	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight	≤ 1.78 kg (3.9 lb)
Case	1U

AR334-4/A 4 Channel 1080P H.265+ 1U 1HDD TVI 4.0 XDVR

Add to compare

Quick view

Add to wishlist

AR334-16/A 16 Channel 1080P H.265 2HDD Bay TURBO ACUSENSE DVR

Rated 0 out of 5

SKU: AR334-16/A

Human/Vehicle Analysis	Up to 4-ch
Facial Detection and Capture	Face picture detection , face picture search
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Channels	16 Channel
Analog Video Input	16-ch;BNC interface (1.0 Vp-p , 75 Ω) , supporting coaxitron connection
VGA Output	1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Bit Rate	32 Kbps to 6 Mbps
IP Video Input	2-ch , 8-ch
Synchronous playback	16-ch
Total Bandwidth	128 Mbps
Capacity	Up to 10 TB capacity for each disk
HDD Support	2 HDD
Interface Network	1 RJ-45 Port (10/100/1000Mbps)
Power	DC 12V
Consumption	≤ 40 W
Dimension (W × D × H)	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight	≤ 2 kg (4.4 lb)

AR336-16/A 16 Channel H.2658 MP 1U 2HDD BAY TVI xDVR

Add to compare

Quick view

Add to wishlist

AR336-16/A 16 Channel H.2658 MP 1U 2HDD BAY TVI xDVR

Rated 0 out of 5

SKU: AR336-16/A

Encoding resolution	Main stream: 8 MP@8fps /5 MP@12fps /3K@12 fps /4 MP@15fps /3 MP@18fps 1080p /720p /WD1 /4CIF /VGA /CIF@25 fps (P) /30 fps (N) Sub-stream: WD1 /4CIF /CIF@25 fps (P)/30 fps (N)
Channels	16 Channel
Case	1U
Human/Vehicle Analysis	Up to 4-ch
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Video Bit Rate	32 Kbps to 10 Mbps
Audio bit rate	64 Kbps
Analog video input	16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Video output mode	HDMI/VGA simultaneous output
Synchronous playback	16-ch
Remote connection	128
HDD Support	2 HDD
Capacity	Up to 10 TB capacity for each disk
Dimension	380×320×48 mm(15.0×12.6×1.9 inch)
Weight (without hard disk)	≤2.1 kg(4.6 lb)

AR336-8/A 8 Channel 8 MP 1U 2HDD TVI 4.0 XDVR

Add to compare

Quick view

Add to wishlist

AR336-8/A 8 Channel 8 MP 1U 2HDD TVI 4.0 XDVR

Rated 0 out of 5

SKU: AR336-8/A

Human/Vehicle Analysis	4-ch
Channels	8 Channel
Case	1U
Video compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution	Main stream: 8 MP@8fps /5 MP@12fps /3K@12 fps /4 MP@15fps /3 MP@18fps 1080p /720p /WD1 /4CIF /VGA /CIF@25 fps (P)/30 fps (N) Sub-stream: WD1 /4CIF /CIF@25 fps (P)/30 fps (N)
IP Video Input	4-ch
Video Bit Rate	32 Kbps to 10 Mbps
Audio bit rate	64 Kbps
Synchronous playback	8-ch
HDD Support	2 HDD
Capacity	Up to 10 TB capacity for each disk
Serial interface	RS-485(half-duplex)
Power	DC 12V
Consumption (without HDD)	≤15 W
Dimensions	380×320×48 mm(15.0×12.6×1.9 inch)
Weight (without HDD)	≤1.78 kg(3.9 lb)

iXVR542AN-16-4KL 16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder

Add to compare

Quick view

Add to wishlist

iXVR542AN-16-4KL 16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder

Rated 0 out of 5

SKU: iXVR542AN-16-4KL

Channels	16 Channel
Case	1U
HDD Support	2 HDD

Add to compare

Quick view

Add to wishlist

iXVR542AN-32 32 Channels Penta-brid 5M-N/1080P 1U 2HDDs WizSense Digital Video Recorder

Rated 0 out of 5

SKU: iXVR542AN-32

Channels	32 Channel
Case	1U
HDD Support	2 HDD

iXVR722A-8-4KL 8 Channel Penta-brid 4K 1U Digital Video Recorder Series

Add to compare

Quick view

Add to wishlist

iXVR722A-8-4KL 8 Channel Penta-brid 4K 1U Digital Video Recorder Series

Rated 0 out of 5

SKU: iXVR722A-8-4KL

Main Processor	Embedded Processor
Operating System	Embedded LINUX
Analog Camera Input	8 Channel , BNC
HDCVI Camera	4K , 6MP , 4MP , 1080P@25/30fps , 720P@50/60fps , 720P@25/30fps
AHD Camera	5MP , 4MP , 3MP , 1080P@25/30 , 720P@25/30fps
IP Camera Input	8+8 Channel, each channel up to 8MP
Compression	H.265+/H.265/H.264+/H.264
Bit Rate	32Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Audio Bit Rate	64Kbps Per Channel
Resolution	HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Playback	8CH: 1/4/9
Internal HDD	2 SATA Ports, up to 10TB capacity for each disk
USB/ RS232/ RS485	USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0) RS232: N/A RS485: 1 Port, for PTZ Control
Channels	8 Channel
HDD Support	2 HDD
Case	1U
Power	DC12V
Power Consumption	8CH: <10W (Without HDD)
Dimensions	1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")
Net Weight	1.8kg (3.70 lb) (without HDD)
Gross Weight	3.2kg (7.05lb)
Installation	Desktop installation
Certifications	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

NR21P6-16D Embedded 16ch Plug & Play 1U 16 PoE 4K Network Video Recorders

Add to compare

Quick view

Add to wishlist

NR21P6-16D Embedded 16ch Plug & Play 1U 16 PoE 4K Network Video Recorders

Rated 0 out of 5

SKU: NR21P6-16D

IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	80 Mbps
Decoding Format	H.265+/H.265/H.264+/H.264
Recording Resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080 p/UXGA/720 p/VGA/4 CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
HDD Support	2 HDD
Power	100 to 240 VAC , 50 to 60Hz
Consumption	≤ 15 W (without HDD and PoE off)
Dimension	385×315×52 mm(15.2"×12.4"×2.0")
Weight	≤ 2.6 kg (without HDD , 5.7 lb.)
Channels	16 Channel
Built-in PoE Ports	16
Case	1U

NR21P8-8/D 8-ch 2 SATA 2HDDs 1U 8 PoE 4K Network Video Recorder

Add to compare

Quick view

Add to wishlist

NR21P8-8/D 8-ch 2 SATA 2HDDs 1U 8 PoE 4K Network Video Recorder

Rated 0 out of 5

SKU: NR21P8-8/D

IP Video Input	8-ch
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	80 Mbps
Recording Resolution	8 MP / 6 MP/5 MP / 4 MP /3 MP / 1080 p / UXGA / 720 p / VGA /4 CIF / DCIF/ 2CIF / CIF / QCIF
Synchronous playback	8-ch
HDD Support	2 HDD
Capacity	Up to 8 TB capacity for each disk
Power	DC 48V , 2.5 A
Consumption	≤ 15 W (without HDD and PoE off)
Dimension	385 × 315 ×52 mm(15.2"×12.4" × 2.0")
Weight	≤ 2.6 kg (without HDD , 5.7 lb.)
Channels	8 Channel
Built-in PoE Ports	8
Case	1U

NR320-16 16 Channel 4K 160M 1U Network Video Recorder

Add to compare

Quick view

Add to wishlist

NR320-16 16 Channel 4K 160M 1U Network Video Recorder

Rated 0 out of 5

SKU: NR320-16

IP Video Input	16-ch
Incoming bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
Recording resolution	8 MP/6 MP /5 MP /4 MP /3 MP /1080 p /UXGA /720p /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous playback	16-ch
HDD Support	2 HDD
Power	DC 12V , ≤40W
Dimension	385×315×52 mm(15.2"×12.4"×2.0")
Weight (without hard disk)	≤1 kg(2.2 lb)
Channels	16 Channel
Case	1U

NR33P6-16D 16CH Embedded Plug & Play AcuSense NVR

Add to compare

Quick view

Add to wishlist

NR33P6-16D 16CH Embedded Plug & Play AcuSense NVR

Rated 0 out of 5

SKU: NR33P6-16D

IP Video Input	16-ch
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
Decoding Format	H.265/H.265+/H.264+/H.264
Channels	16 Channel
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Decoding Capability	AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps)
Remote Connection	128
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE Power	≤ 200 W
HDD Support	2 HDD
Capacity	Up to 10 TB capacity for each HDD
Power	100 to 240 VAC
Consumption	≤ 15 W (without HDD and PoE off)
Dimension (W × D × H)	385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
Weight	≤ 3 kg (without HDD, 6.6 lb.)

Add to compare

Quick view

Add to wishlist

NR33P8-8/D 8-ch PoE 2HDDs 1U K Series AcuSense 4K Network Video Recorder

Rated 0 out of 5

SKU: NR33P8-8/D

IP Video Input	8-ch
HDD Support	2 HDD
Incoming Bandwidth	80 Mbps
Channels	8 Channel
Case	1U
Outgoing Bandwidth	160 Mbps
HDMI Output	1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Video Output Mode	HDMI/VGA independent output
Decoding Format	H.265/H.265+/H.264+/H.264
Synchronous playback	8-ch
Decoding Capability	AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30fps)
Remote Connection	128
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE Interface	8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	48 VDC, 2.5 A
Consumption	≤ 15 W (without HDD, and PoE off)
Dimension (W × D × H)	385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
Weight	≤ 3 kg (without HDD, 6.6 lb.)

NVR302-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Add to compare

Quick view

Add to wishlist

NVR302-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Rated 0 out of 5

SKU: NVR302-08B-P8-IQ

Channels	8 Channel
HDD Support	2 HDD
Built-in PoE Ports	8
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off：2 x 12MP@30 , 2 x 4K@30 , 4 x 4MP@30 , 8 x 1080P@30 Smart On：2 x 4K@30 , 4 x 4MP@30 , 8 x 1080P@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	128Mbps
Remote Users	128
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0 , Rear panel: 1 × USB3.0
Power Supply	AC 100~240V
PoE Interface	8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port , Max 130 W in total
Supported Standard	IEEE 802.3at , IEEE 802.3af
Power Consumption (without HDD)	≤ 12W
Weight (without HDD)	≤ 2.7Kg (6.0lb)
Dimensions	380mm × 322mm × 53mm (15.0"×12.7"×2.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U

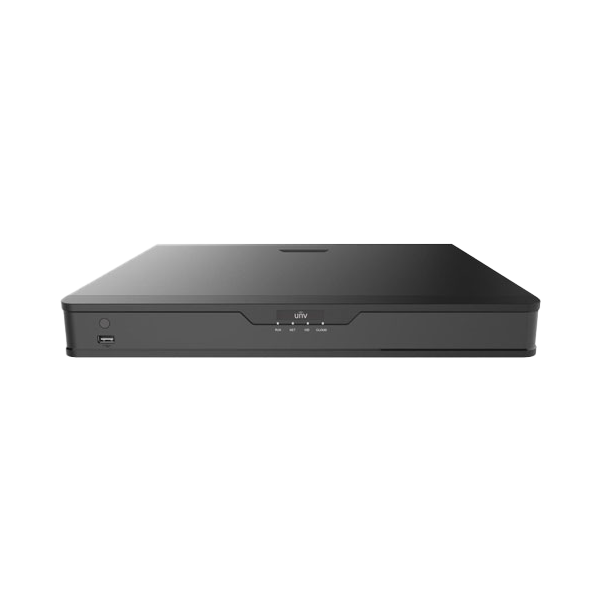

NVR302-16S2-P16 16-ch 2 SATA Network Video Recorder Up to 8 MP

Add to compare

Quick view

Add to wishlist

NVR302-16S2-P16 16-ch 2 SATA Network Video Recorder Up to 8 MP

Rated 0 out of 5

SKU: NVR302-16S2-P16

IP Video Input	16-ch
Incoming/Outgoing Bandwidth	160Mbps/64Mbps
Recording Resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	16-ch
Decoding format	Ultra265/H.265/H.264
Decoding Capability	2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30
Hard Disk Capacity	Up to 10TB for each disk
Channels	16 Channel
HDD Support	2 HDD
Interface Network	1 RJ-45 Port (10/100/1000Mbps)
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
PoE Interface	16 RJ-45 10M/100M self-adaptive Ethernet Interface
PoE Max Power	Max 30W for single port Max 240W in total
Power	100 to 240 VAC
Power Consumption	≤10W(without HDD)
Dimensions (W×D×H)	380mm ×315mm × 53mm (14.9" × 12.4" ×2.1")
Weight (without HDD)	≤2.6kg (5.73lb)

XVR302-16U3 2 HDDs 16-Ch Digital Video Recorder

Add to compare

Quick view

Add to wishlist

NVR302-32B-IQ 2 HDDS 32-ch 1U Network Video Recorder

Rated 0 out of 5

SKU: NVR302-32B-IQ

Channels	32 Channel
HDD Support	2 HDD
Built-in PoE Ports	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off：2 x 12MP@30 , 2 x 4K@30 , 4 x 4MP@30 , 10 x 1080P@30 , 20 x 720P@30 , 32 x D1 Smart On：2 x 4K@30 , 4 x 4MP@30 , 8 x 1080P@30 , 16 x 720P@30 , 32 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	128Mbps
Remote Users	128
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0 , Rear panel: 1 × USB2.0 , 1 × USB3.0
Power Supply	DC 12 V/3 A
Working Temperature	-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Working Humidity	≤ 90% RH (non-condensing)
Alarm Out	N/A
Power Consumption (without HDD)	≤ 12W
Weight (without HDD)	≤ 2Kg (4.4lb)
Dimensions	380mm × 315mm × 53mm (15.0"×12.4"×2.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U

NVR502-32B-P16, NVR502-16B-P16, NVR502-08B-P8 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Add to compare

Quick view

Add to wishlist

NVR502-08B-P8 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Rated 0 out of 5

SKU: NVR502-08B-P8

Channels	8 Channel
HDD Support	2 HDD
Built-in PoE Ports	8
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Ultra 265/H.265: 2 x 16MP@30 , 2 x 12MP@30 , 4 x 4K@30 , 6 x 5MP@30 , 8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30 , 2 x 12MP@30 , 2 x 4K@30 , 4 x 5MP@30 , 6 x 4MP@30 , 8 x 3MP@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0 , Rear panel: 1 × USB3.0
Power Supply	AC 100 to 240 V
PoE Interface	8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port , Max 130 W in total
Supported Standard	IEEE 802.3at , IEEE 802.3af
Power Consumption (without HDD)	≤ 20W
Weight (without HDD)	≤ 2.6Kg (5.73lb)
Dimensions	380mm × 322mm × 53mm(15.0"×12.7"×2.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U

NVR502-32B-P16-IQ, NVR502-16B-P16-IQ, NVR502-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Add to compare

Quick view

Add to wishlist

NVR502-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Rated 0 out of 5

SKU: NVR502-08B-P8-IQ

Channels	8 Channel
HDD Support	2 HDD
Built-in PoE Ports	8
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off：2 x 16MP@30 , 2 x 12MP@30 , 4 x 4K@30 , 8 x 4MP@30 , 8 x 3MP@30 , 8 x 1080P@30 Smart On：2 x 12MP@30 , 2 x 4K@30 , 6 x 4MP@30 , 8 x 3MP@30 , 8 x 1080P@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	Smart Off：320Mbps Smart On：160Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB2.0 , Rear panel: 1 × USB3.0
Power Supply	AC 100~240V
PoE Interface	8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	Max 30 W for single port , Max 130 W in total
Supported Standard	IEEE 802.3at , IEEE 802.3af
Power Consumption (without HDD)	≤ 12W
Weight (without HDD)	≤ 2.7Kg (6.0lb)
Dimensions	380mm × 322mm × 53mm (15.0"×12.7"×2.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U

NVR502-32B, NVR502-16B 2 HDDs 16-ch 1U Network Video Recorder

Add to compare

Quick view

Add to wishlist

NVR502-16B 2 HDDs 16-ch 1U Network Video Recorder

Rated 0 out of 5

SKU: NVR502-16B

Channels	16 Channel
HDD Support	2 HDD
Built-in PoE Ports	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Ultra 265/H.265: 2 x 16MP@30 , 2 x 12MP@30 , 4 x 4K@30 , 6 x 5MP@30 , 8 x 4MP@30 , 10 x 3MP@30 , 16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30 , 2 x 12MP@30 , 2 x 4K@30 , 4 x 5MP@30 , 6 x 4MP@30 , 8 x 3MP@30 , 14 x 1080P@30 , 16 x 720P@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width , For VGA/HDMI independent output , the VGA live video is output by default. To output the highest resolution video from the HDMI port , please clear the VGA video on the preview page.
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Recording Resolution	16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front: 1 x USB2.0 , Rear panel: 1 × USB2.0 , 1 × USB3.0
Power Supply	DC 12 V/3 A
RS485	1
Alarm In	8-ch
Alarm Out	2-ch
Power Consumption (without HDD)	≤ 20W
Weight (without HDD)	≤ 2Kg (4.40lb)
Dimensions	380mm × 315mm × 53mm (15.0"×12.4"×2.1")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
Case	1U
