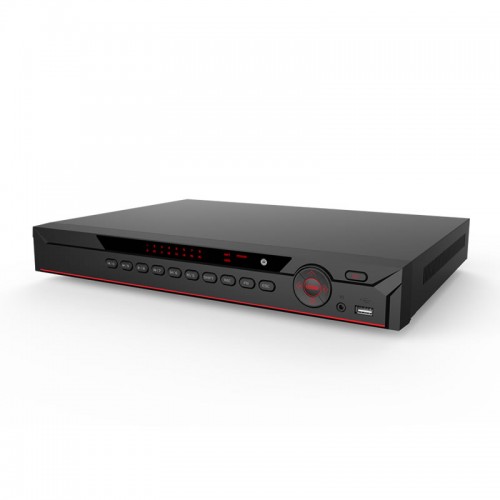

NVR422HP8-8-4K 8 CHANNEL 1U 4K & H.265 LITE NETWORK VIDEO RECORDER
Click to enlarge

NVR422HP8-8-4K 8 CHANNEL 1U 4K&H.265 LITE NETWORK VIDEO RECORDER

SKU: NVR422HP8-8-4K

8 CHANNEL 1U 4K&H.265 LITE NETWORK VIDEO RECORDER

Add to wishlist
Add to compare
19 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 8ch IP camera inputs
  • Max 200Mbps Bit Rate input
  • Compatible with 8Mp, 6Mp, 5Mp, 3Mp,1080p, 720p, D1 and etc.
  • 1 HDMI, 1 VGA output up to 1080p
  • 1/1ch Mic in/out
  • 4ch alarm in&2ch relay out, RS485, RS232
  • 2 SATA, 2 USB(1 USB3.0), 1 RJ45(1000M)
  • 8 PoE ports

Download

Product Manual

Related Firmware

TitleDescriptionDownload
NVR4XXNVR421HP4-4-4K/ NVR422H-16-4K/ NVR422HP8-8-4K/ NVR422HP6-16-4K/ NVR424H-32-4K/ NVR424HP6-16-4K/ NVR424HP6-32-4KNVR4XXX-4KS2.201126
Additional information
Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

IP Camera Input

8 Channel

Two-way Talk

1 Channel Input

,

1 Channel Output

,

RCA

Decoding Capacity

2ch@4K 30fps, 8ch@1080P 30fps

Multi-screen Display

8CH: 1/4/8/9

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Interface Network

1 RJ-45 Port (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Port

HDD Support

Internal HDD

2 SATA III Ports, Up to 6 TB capacity for each HDD

USB

2 ports(1 USB2.0

,

1 USB3.0)

Compression

H.265/ H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

200Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Playback

8CH: 1/4/9 16/32CH: 1/4/9/16

Power

DC 12V

Power Consumption

< 6.9W(without HDD)

Case

Dimensions

1U, 375mm×281.5mm×56mm (14.8" x 11.1" x2.2")

Net Weight

1.6kg (3.5 lb) (without HDD)

Gross Weight

3.2kg(7.1 lb)(without HDD)

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL60950-1
