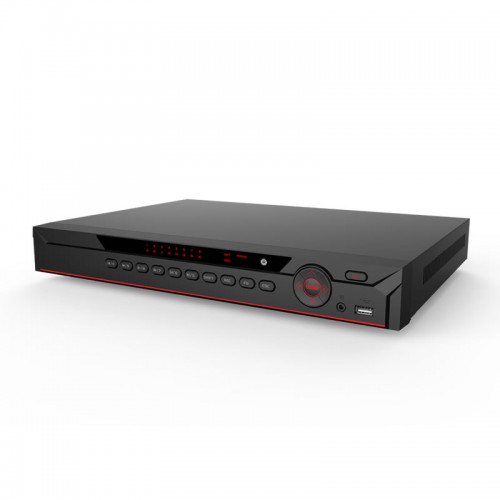

NVR422H-16-4K 16 CHANNEL 1U 2HDD BAY 4K&H.265 LITE NVR

SKU: NVR422H-16-4K

16 CHANNEL 1U 2HDD BAY 4K&H.265 LITE NVR

17 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 16ch IP camera inputs
  • Max 200Mbps Bit Rate input
  • Compatible with 8Mp, 6Mp, 5Mp, 3Mp,1080p, 720p, D1 and etc.
  • 1 HDMI, 1 VGA output up to 1080p
  • 1/1ch Mic in/out
  • 4ch alarm in&2ch relay out, RS485, RS232
  • 2 SATA, 2 USB(1 USB3.0), 1 RJ45(1000M)

Download

Product Manual

Related Firmware

TitleDescriptionDownload
NVR4XXNVR421HP4-4-4K/ NVR422H-16-4K/ NVR422HP8-8-4K/ NVR422HP6-16-4K/ NVR424H-32-4K/ NVR424HP6-16-4K/ NVR424HP6-32-4KNVR4XXX-4KS2.201126
Additional information
Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

IP Camera Input

16 Channel

Two-way Talk

1 Channel Input

,

1 Channel Output

,

RCA

Interface Network

1 RJ-45 Port (10/100/1000Mbps)

Ethernet Port

1 Independent 1000Mbps Ethernet Port

PoE

16 ports (IEEE802.3at/af)

Decoding Capacity

2ch@4K 30fps, 8ch@1080P 30fps

Multi-screen Display

16ch: 1/4/8/9/16

OSD

Camera title, Time, Camera lock, Motion detection, Recording

HDD Support

Internal HDD

2 SATA III Ports

,

Up to 6 TB capacity for each HDD

Compression

H.265/ H.264

Resolution

8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.

Record Rate

200Mbps

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop

USB

2 ports(1 USB2.0, 1 USB3.0)

Power

100 to 240 VAC

Power Consumption

NVR: < 13.2W(without HDD) PoE: Max 25.5w for single port, 130w in total

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Playback

1/4/9/16

Case

Dimensions

1U, 375mm×327.5mm×53mm (14.8" x 12.9" x2.1")

Net Weight

2.6kg (5.7 lb) (without HDD)

Gross Weight

4kg(8.8 lb)(without HDD)
