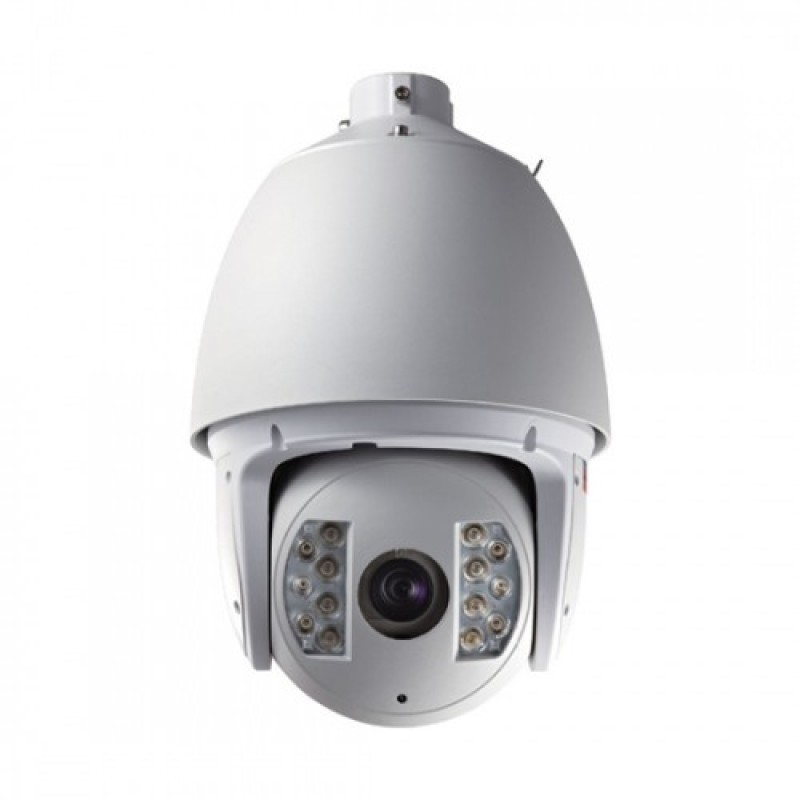

Description
1/2.8 Progressive Scan CMOS
1080P Full HD resolution
20X optical zoom, 16X digital zoom
Up to100m IR distance
True Day/Night, 3D DNR, Digital WDR
3D intelligent positioning
24VAC / High-PoE power supply
Features
Specifications
Camera
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS |
| Effective Pixels | 1280(H)x720(V) |
| Min. Illumination | 0. 01Lux/F1.8( Color), 0Lux/F1.8 (IR on) |
| S/N Ratio | More than 50dB |
| Privacy Masking | Up to 4 areas |
| Frame Rate | Main Stream: 720P(1 ~ 25/30fps) Sub Stream: D1/CIF(1 ~ 25/30fps) |
| Shutter Speed | 1/25 (1/30)s ~ 1/100,000s |
| Day & Night | IR cut filter with auto switch |
| IR Range | Up to 30m |
Menu
| Backlight Compensation | BLC /HLC /DWDR |
Lens
| Focal Length | 3.6mm (6mm,8mm optional) |
| Focus Control | Manual |
| Angle of View | H: 75.5°(48.5°/35.6°) |
| Min. working distance | 10 ~1000mm (Wide-Tele) |
| Aperture range | F1.6 ~ F3.5 |
Network
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
| Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+ |
General
| Power Supply | DC12V, PoE (802.3af) |
| Dimensions | Φ70mm× 66mm× 155mm |
| Weight | 0.42Kg |
| Operating Humidity | 90% or less |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) |
| Ingress Protection | N/A |
Interface
| Audio Output | 1 Audio output interface, Line level, impedance: 600Ω |
| Audio Input | 1 Mic in/Line in interface, Line input: 2 ~ 2.4V[p-p]; output impedance: 1KΩ, ±10% |
| On-Board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
Compression Standard
| Dual Stream | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 *only for –S models |
| Max. Resolution | 2048×1536 |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Digital WDR |
Pan and Tilt
| Pan / Tilt range | Pan: 360° endless;Tilt: -5° ~90°(Auto Flip) |
| Pan / Tilt speed | Pan manual speed: 0.1° ~ 160°/s, Pan preset speed: 160°/s Tilt manual speed: 0.1° ~ 120°/s, Tilt preset speed: 120°/s |
| Proportional zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of preset | 256 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Park action | Pattern/Pan scan/Tilt scan/Frame scan/Panorama scan/Random scan |
| Power-off memory | Support |
| PTZ position display | On / off |
| Preset freezing | Support |
Integration
| Application programming | Open-ended API, support Onvif, PSIA and CGI |
