- 1/3″ progressive scan CMOS
- 2560 × 1440@20fps
- 2.8 mm to 12 mm varifocal lens
- H.265+, H.265, H.264+, H.264
- Dual stream 3D DNR
- Up to 30 m IR range
- IP67

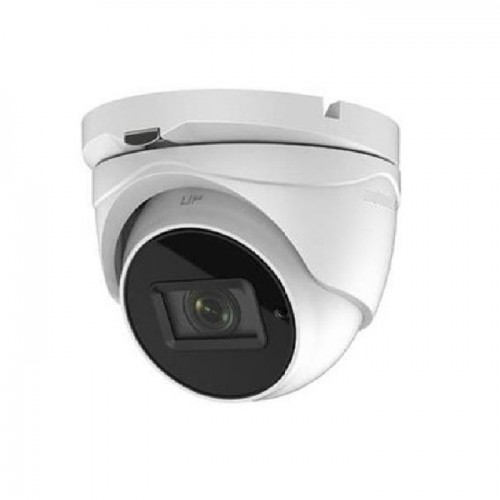

NC214-XDZ 4 MP IR VF Network varifocal Turret Camera
4 MP IR VF Network varifocal Turret Camera
10 People watching this product now!
Fast Shipping
Carrier information
1k products
Payment methods
24/7 Support
Unlimited help desk
Description
Download
Product Manual
Related Firmware
| Title | Description | Download |
|---|---|---|
| NC214 | NC214_5.5.82_190610 |
Additional information
| Image Sensor | 1/3" Progressive Scan CMOS |
|---|---|
| Lens Type | |
| Minimum Illumination | Color: 0.01 Lux @(F1.2 ,AGC ON) ,0.018 Lux @(F1.6 ,AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100000 s |
| Camera Resolutions | |
| Camera Style | |
| Focal Length | 2.8 to 12 mm |
| Lens Mount | Φ14 |
| IR Range | Up to 30 m |
| Wavelength | 850nm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Max. Resolution | 2560 × 1440 |
| Power | 12VDC±25% ,5.5mm coaxial power plug PoE(802.3af ,class3) |
| Dimension | Camera: 129.4 mm x 116.4 mm(5.1"×4.6") With package: 170 mm x 150 mm(6.7"×5.9") |
| Weight | Camera:560 g(1.2 lb.) With package: 850 g(1.9 lb.) |
| Ingress Protection | IP67 |
| Material | Camera body: metal, bottom base: plastic |
