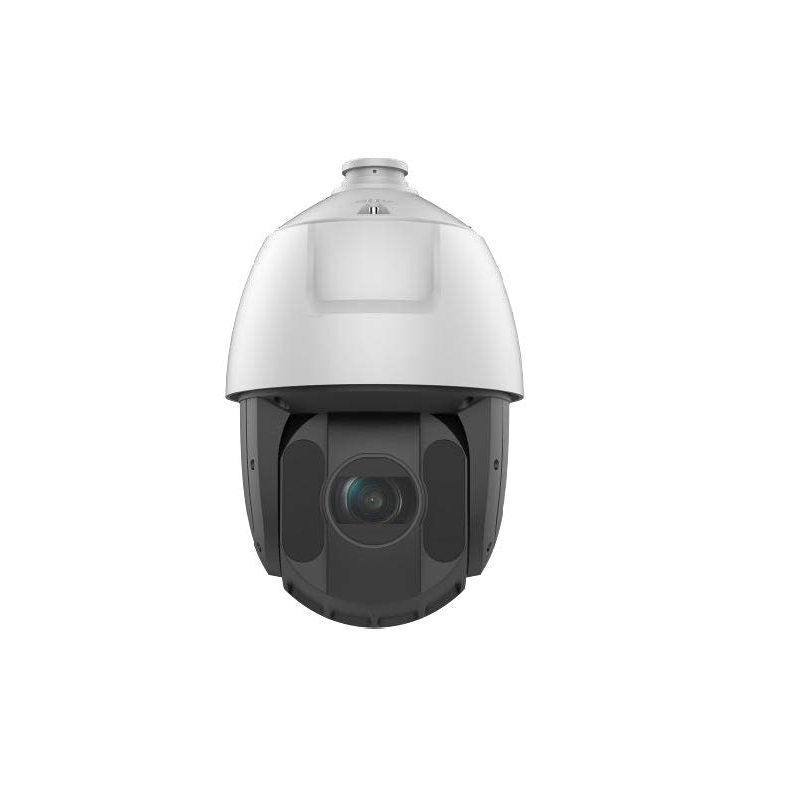

NP224-IR/25X 4 MP 25 x Network IR Speed Dome

Name: NP224-IR/25X 4 MP 25 x Network IR Speed Dome
SKU: NP224-IR/25X

SKU: NP224-IR/25X

4 MP 25 x Network IR Speed Dome

20 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

1/2.8″ Progressive Scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 150 m IR distance
24 VAC & PoE (802.3at)
Efficient H.265+/H.265 compression technology

Product Manual

No related firmware found.

Additional information

Image Sensor	1/2.8" Progressive Scan CMOS
Camera Style	Dome
Minimum Illumination	Color: 0.005 Lux@(F1.6 , AGCON);B/W: 0.001 Lux@(F1.6 , AGCON) , 0 Lux with IR
Shutter Speed	1 s to 1/30000 s
Max. Resolution	2560 × 1440
Focal length	4.8mm to 120mm
Max. Aperture	F1.6
Supplement Light Range	IR Distance: up to 150 m
Video Bit Rate	32 Kbps to 16 Mbps
Power	24 VAC , Max. 24W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
Material	Metal
Dimension	210 mm x 344.7 mm(8.27" x 13.57")
Weight	Approx. 3.0 kg (6.61 lb.)
Protection	IP66
