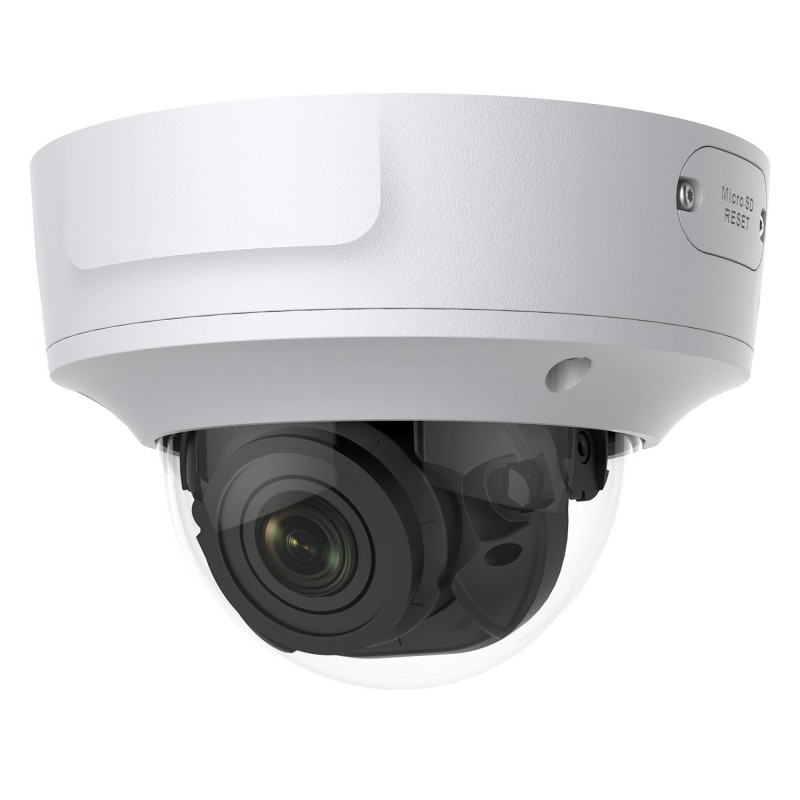

NC344-VDZ 4 MP IR Motorized Varifocal Dome Network Camera
Click to enlarge

NC344-VDZ 4 MP IR Motorized Varifocal Dome Network Camera

SKU: NC344-VDZ

Call for price

4 MP IR Motorized Varifocal Dome Network Camera

Add to wishlist
Add to compare
13 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • Max. 2688 x 1520 @ 30fps
  • 2.8MM to 12MM lens
  • H.265, H.264
  • 120dB WDR
  • Color: 0.007 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • 12 VDC & PoE (802.3af, class 3)
  • IR range: Up to 30 m
  • Support on-board storage, up to 128 GB
  • IP67, IK10
  • BLC/3D DNR/ROI

Download

Product Manual

No related firmware found.
Additional information
Image Sensor

1/2.7" Progressive Scan CMOS

Camera Style

Minimum Illumination

Color: 0.007 Lux@(F1.2

,

AGC ON)

,

0.01 Lux@(F1.4

,

AGC ON)

,

0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

Lens Type

3‐Axis Adjustment

Pan: 0° to 355°

,

tilt: 0° to 75°

,

rotate: 0° to 355°

Camera Resolutions

Focal length

2.8mm to 12mm

Lens Mount

Φ14

IR Range

Up to 30 m

Wavelength

850nm

Max. Resolution

2688 × 1520

Video Bit Rate

32 Kbps to 16 Mbps

Power

12VDC±25%

,

5.5mm coaxial power plug PoE(802.3af

,

class3)

Power Consumption and Current

12VDC

,

0.9A

,

max.11W PoE: (802.3af

,

36 VDC to 57 VDC)

,

0.4A to 0.2A

,

max.12.9W

Camera Material

Front cover: metal bottom base: metal bubble: plastic

Dimensions

Camera: Φ 153.3 × 111.6 mm (Φ 6" × 4.4")

With Package Weight

1300g(2.9lb.)
