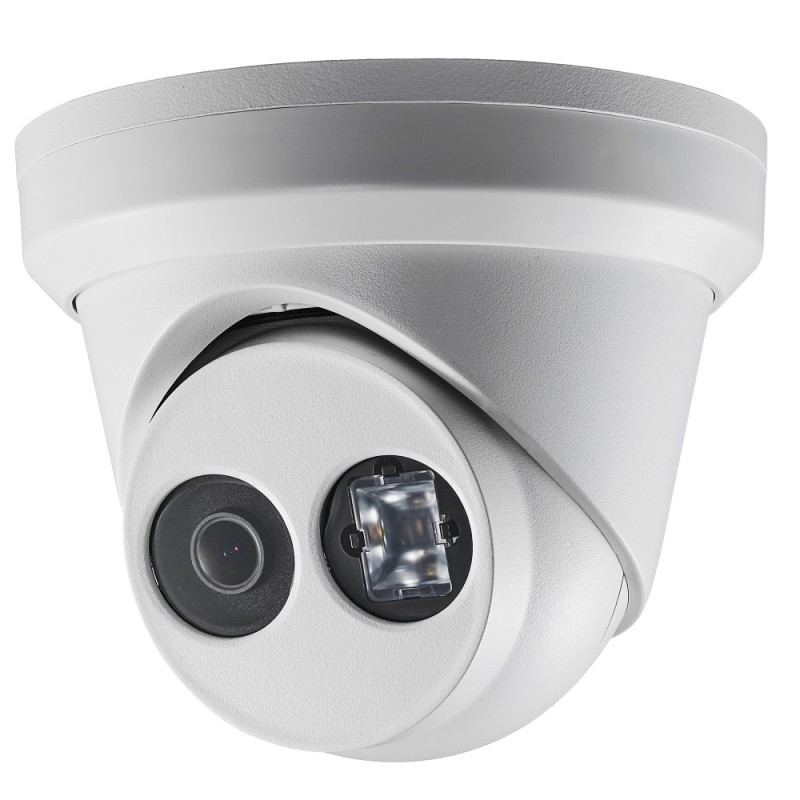

NC328G2-XDU 8MP AcuSense Network Fixed Turret Camera

Name: NC328G2-XDU 8MP AcuSense Network Fixed Turret Camera
SKU: NC328G2-XDU

SKU: NC328G2-XDU

8MP AcuSense Network Fixed Turret Camera

11 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

Product Manual

Title	Description	Download
NC32XG2	V5.7.14	NC32XG2

Additional information

Camera Resolutions	8 MP
Camera Style	Turret
Image Sensor	1/2.5" Progressive Scan CMOS
Minimum Illumination	Color: 0.005 Lux @ (F1.6 , AGC ON) , 0 Lux with IR on
Shutter Speed	1/3 s to 1/100000 s
3‐Axis Adjustment	Pan: 0° to 360° , tilt: 0° to 75° , rotate: 0° to 360°
Lens Mount	M12
Digital Noise Reduction	3D DNR
Lens Type	Fixed Lens
Lens Size	2.8mm
Video Compression	Main stream:H.265/H.264 Sub stream:H.265/H.264/MJPEG Third stream:H.265/H.264
Main Stream	50Hz: 15fps (3840 × 2160), 25fps (2560 × 1920, 2560 × 1440, 1920 ×1080, 1280 × 720) 60Hz: 15fps (3840 × 2160), 30fps (2560 × 1920, 2560 × 1440, 1920 ×1080, 1280 × 720)
Audio	Built-in Mic
Max. Resolution	3840 × 2160
Network Storage	Support microSD/SDHC/SDXC card (128G) local storage , NAS (NFS , SMB /CIFS) , ANR
AlarmTrigger	Motion Detection , Tampering Alarm , Network Disconnected , IP Address Conflict , Illegal Login , HDD full , HDD error
Power	12VDC±25% , 6.5W PoE(802.3af , 42.5–57V , class3) , 8.5W
Dimensions	Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″) Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight	Camera: 620g(1.37lb.)
