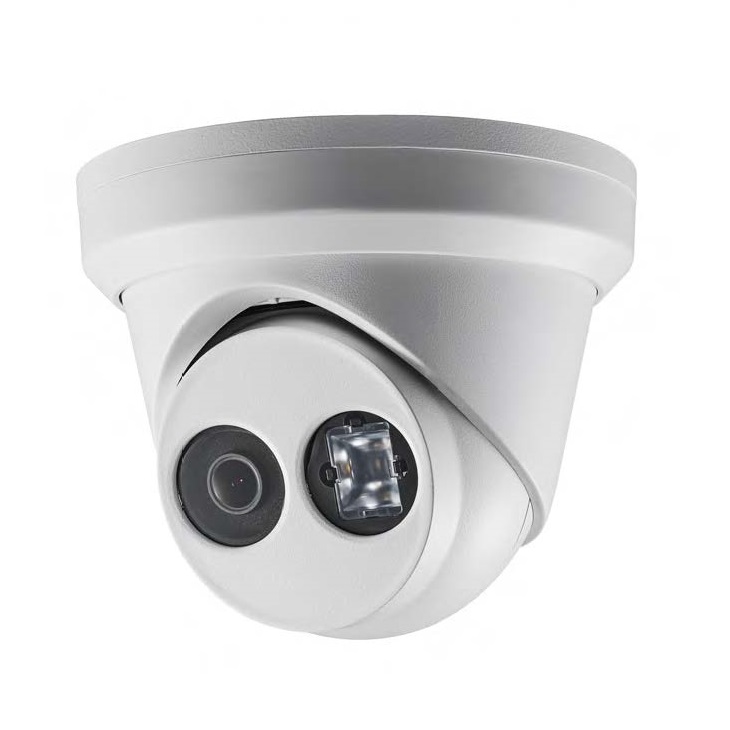

NC324-XDU 4MP IR Fixed Turret Network Camera

SKU: NC324-XDU

4MP IR Fixed Turret Network Camera

14 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

  • 1/3″ Progressive Scan CMOS
  • 2688 x 1520@30fps
  • 2.8/4/6 mm fixed lens
  • Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265, H.265+, H.264, H.264+
  • Three streams
  • 120dB WDR
  • BLC/3D DNR/ROI/HLC
  • IR range: Up to 30 m
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment
  • Built-in microphone (optional)

Download

Product Manual

Related Firmware

TitleDescriptionDownload
NC32X-XDUV5.6.5NC32X-XDU_5.6.5_200316
Additional information
Image Sensor

1/3" Progressive Scan CMOS

Lens Type

Minimum Illumination

Color: 0.018 Lux@(F1.6

,

AGC ON)

,

0 Lux with IR

Shutter Speed

1/3 s to 1/100000 s

Camera Resolutions

Camera Style

Angle Adjustment

Pan: 0° to 360°

,

tilt: 0° to 75°

,

rotate: 0° to 360°

Lens Mount

M12

IR Range

Up to 30 m

Wavelength

850nm

Max. Resolution

2688 × 1520

Video Bit Rate

32 Kbps to 16 Mbps

Audio

Power

12 VDC ±25%

,

Φ5.5mm coaxial power plug; PoE (802.3af

,

class 3)

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W

Camera Material

Metal

Package Dimension

150 x 150 x 141 mm (5.9" x 5.9" x 5.6")

With Package Weight

Approx. 890 g (1.96 lb.)
