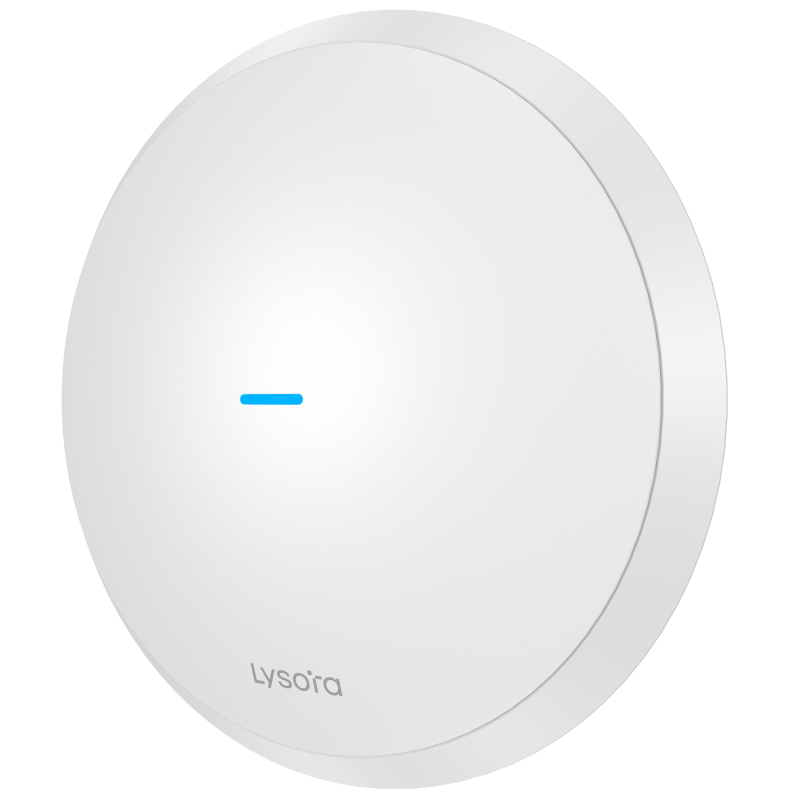

L7Lite Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point

SKU: L7Lite
  • Wi-Fi 7 BE3600 dual-band ceiling mount access point
  • Dual-band 2.4 GHz/5 GHz, high throughput with 4 spatial streams

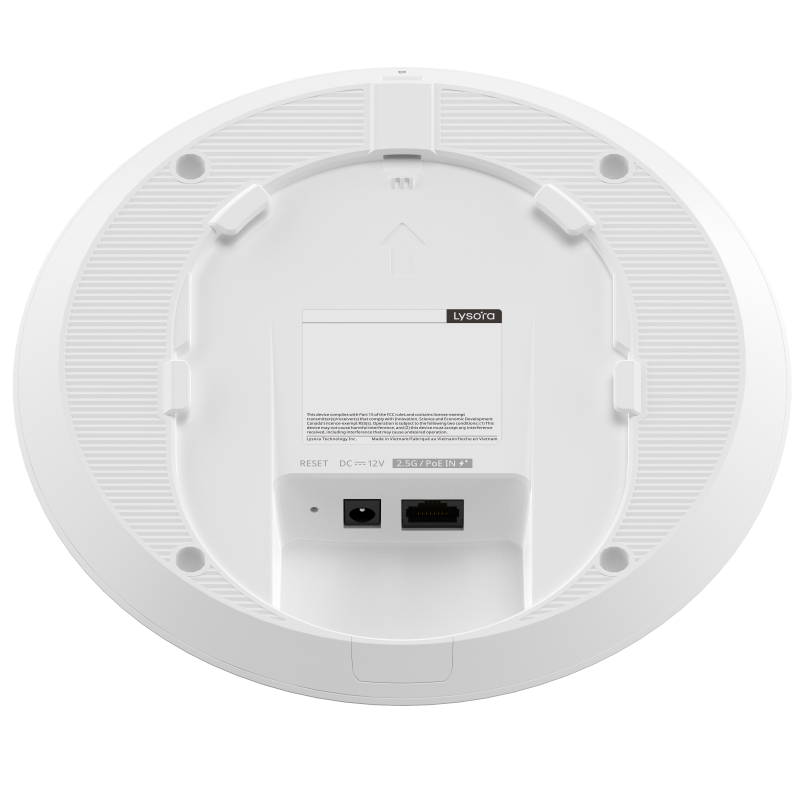

  • 1 x 100/1000/2500BASE-T port
  • AP and routing mode
  • Unified networking and management based on Lysora Cloud App; max power consumption < 14 W
  • 802.3at PoE In and 12 V DC power supply
16 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Product Overview

The L7Lite is a cutting-edge Wi-Fi 7 BE3600 Dual-Band Ceiling Mount Access Point, designed to bring next-generation wireless performance to professional and enterprise environments. Supporting the latest IEEE 802.11be (Wi-Fi 7) standard, it delivers ultra-high throughput of up to 3570 Mbps by leveraging advanced technologies like 4096-QAM and Multi-Link Operation (MLO). With its high-speed 2.5GbE uplink port and support for up to 300 units in a self-organizing network, the L7Lite provides a future-proof, low-latency, and high-density solution for modern digital workspaces.

Key Features

  • Next-Gen Wi-Fi 7 Speed: Delivers blazing-fast wireless rates of up to 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, totaling 3570 Mbps of aggregate throughput.
  • 2.5GbE Multi-Gigabit Uplink: Equipped with a 2.5 Gbps RJ45 port to eliminate wired bottlenecks and fully support the high-speed potential of Wi-Fi 7.
  • Advanced 4K-QAM & MLO: Utilizes 4096-QAM modulation for increased data density and Multi-Link Operation (MLO) for higher throughput and reduced latency.
  • Enterprise-Grade Roaming: Supports 802.11k/v/r protocols and Layer 3 roaming, ensuring seamless transitions and uninterrupted connectivity for mobile clients.
  • Flexible Deployment Modes: Operates in both AP and Router modes with integrated NAT, DHCP, and PPPoE support for diverse networking requirements.
  • Unified Cloud Management: Centralized control for up to 300 APs via the Lysora Cloud App or Web interface, featuring automated channel and power optimization.
  • Comprehensive Security Suite: Hardened with WPA3-SAE, 802.1X authentication, and a customizable Captive Portal for secure enterprise and guest access.

Download

Product Manual

No related firmware found.
Additional information
Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Spatial Streams

4

Networking Interface

(1) 2.5GbE RJ45 port

Wi-Fi Protocols

2.4 GHz: IEEE 802.11 b/g/n/ax/be 5 GHz: IEEE 802.11 a/n/ac/ax/be

Channel bandwidth

2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz

Throughput rate

2.4 GHz: 688 Mbps 5 GHz: 2882 Mbps

Power Consumption

≤ 14 W

Power Method

PoE DC (12 V

,

1.5A)

,

DC Power Adapter Is Not Included

Working Mode

Router Mode; AP Mode

Coverage Level

Basic Coverage

NDAA Complain

Yes

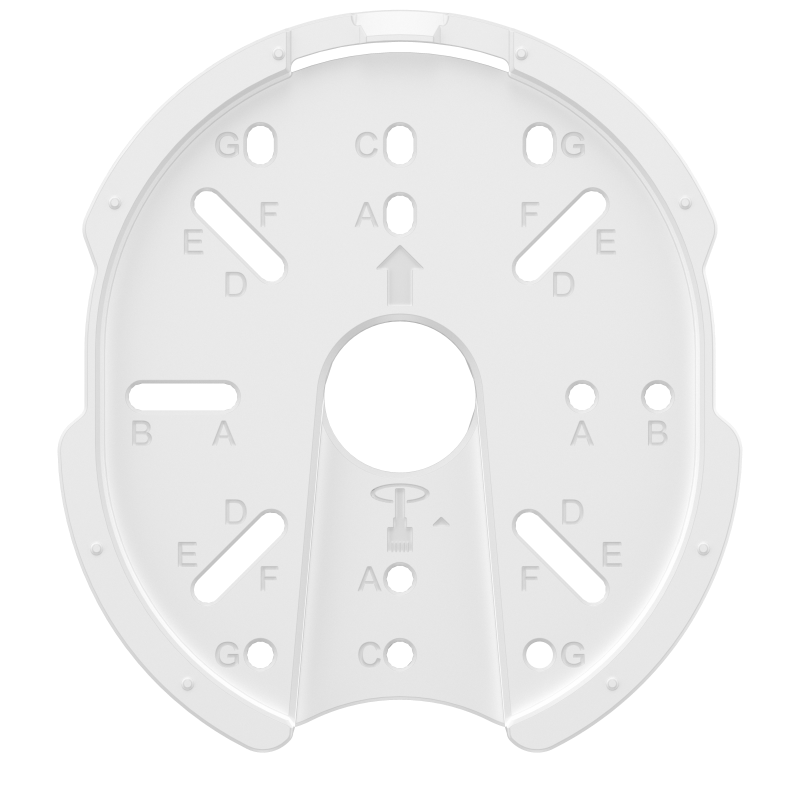

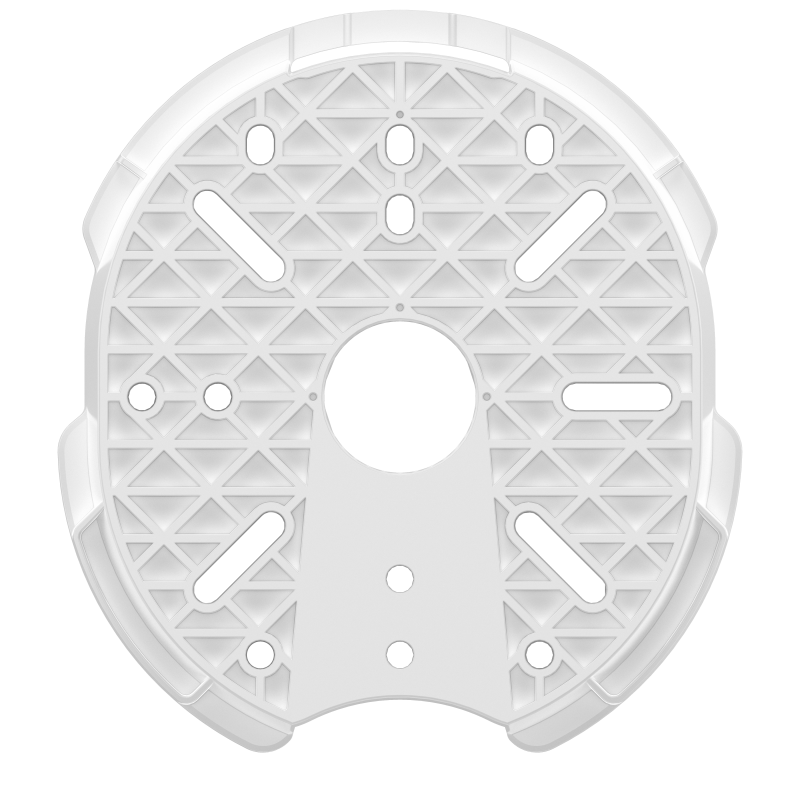

Mounting

Ceiling Mount

,

Wall-mounted (Mounts Included)

Dimensions

Ø195 mm x 41 mm (Ø7.68 in. x 1.61 in.) (excluding the mounting bracket)

Weight

≤ 0.6 kg (1.32 lbs.)

Weather Resistance

IP41 Surge Protection: ±2 kV
