LS2-24GT4SFP-P 24-Port Layer 2 Managed PoE Switch with 370 W PoE Budget

Product Overview

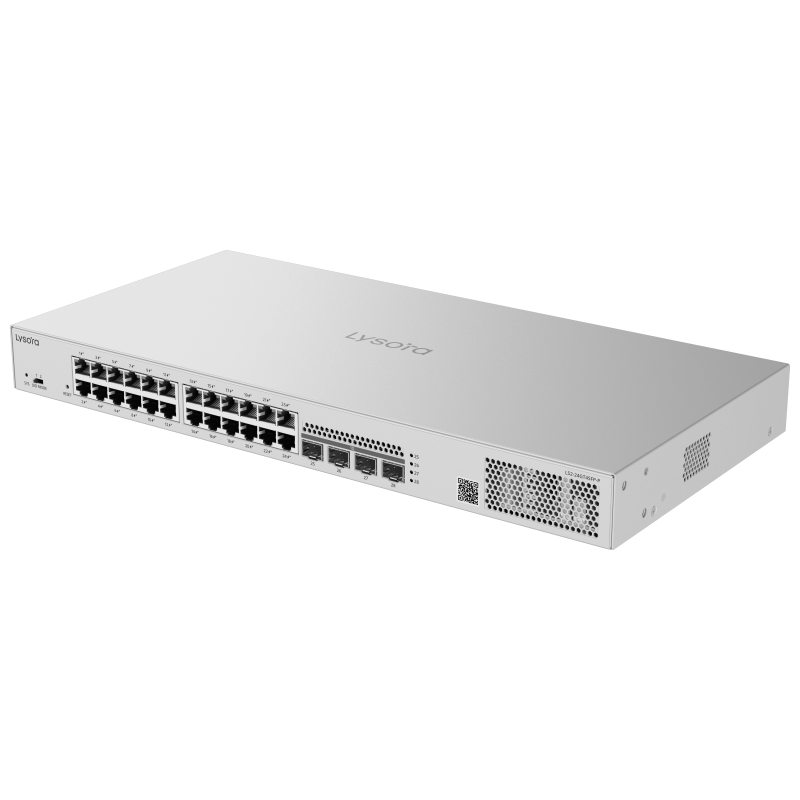

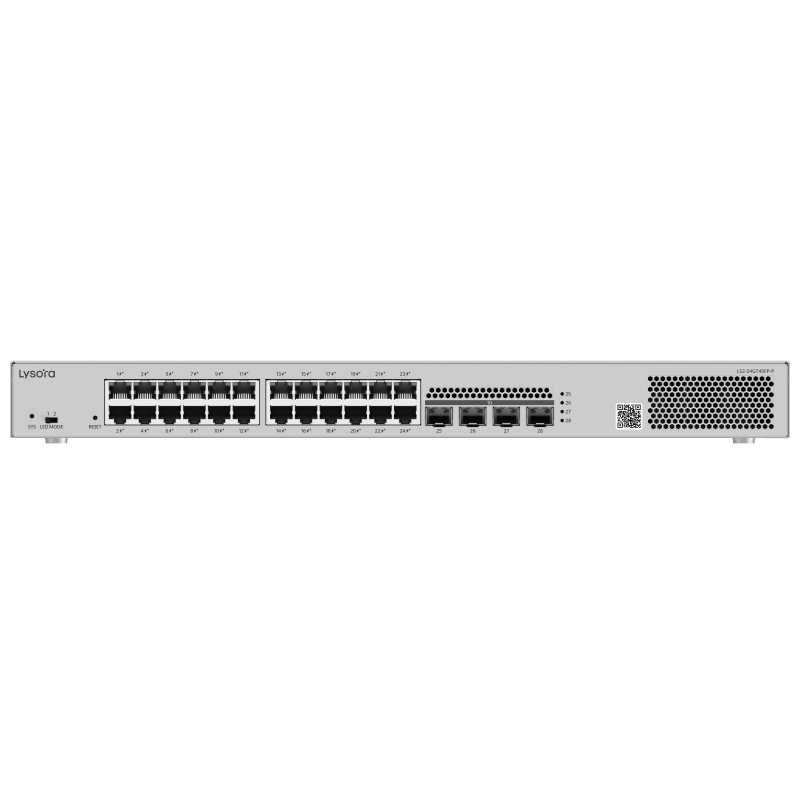

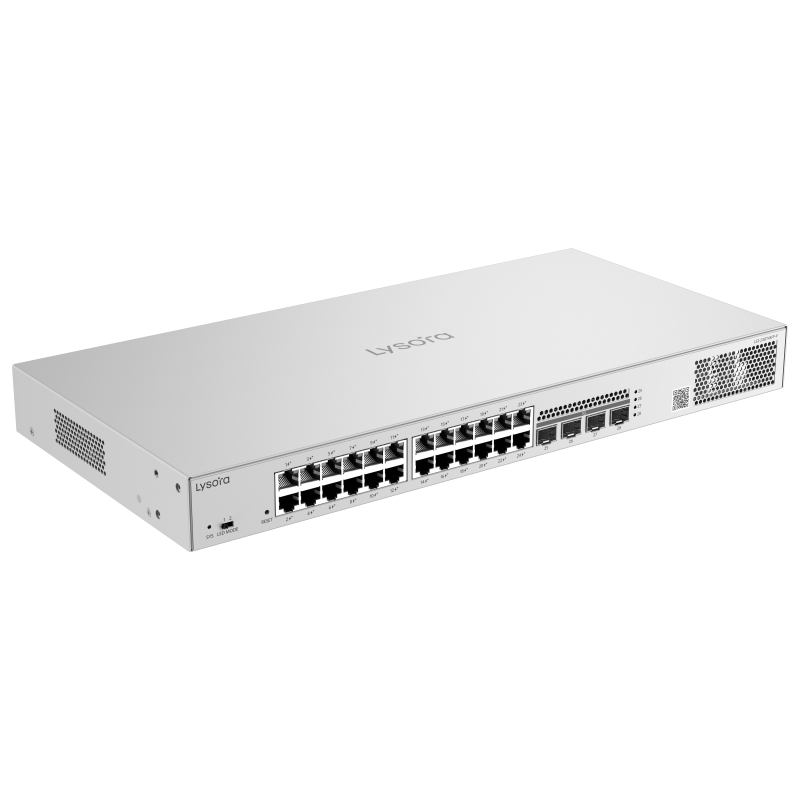

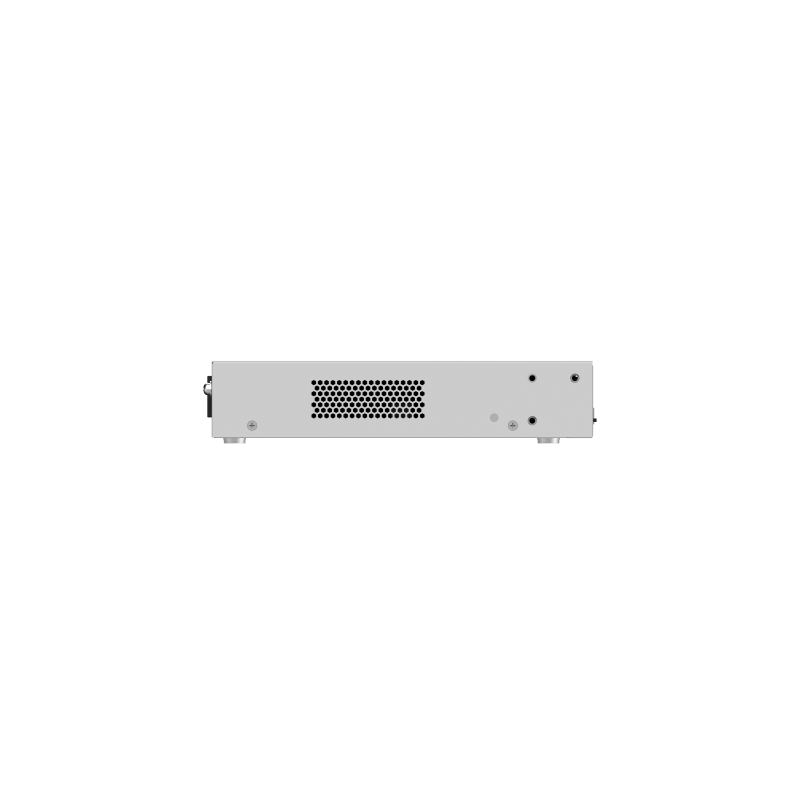

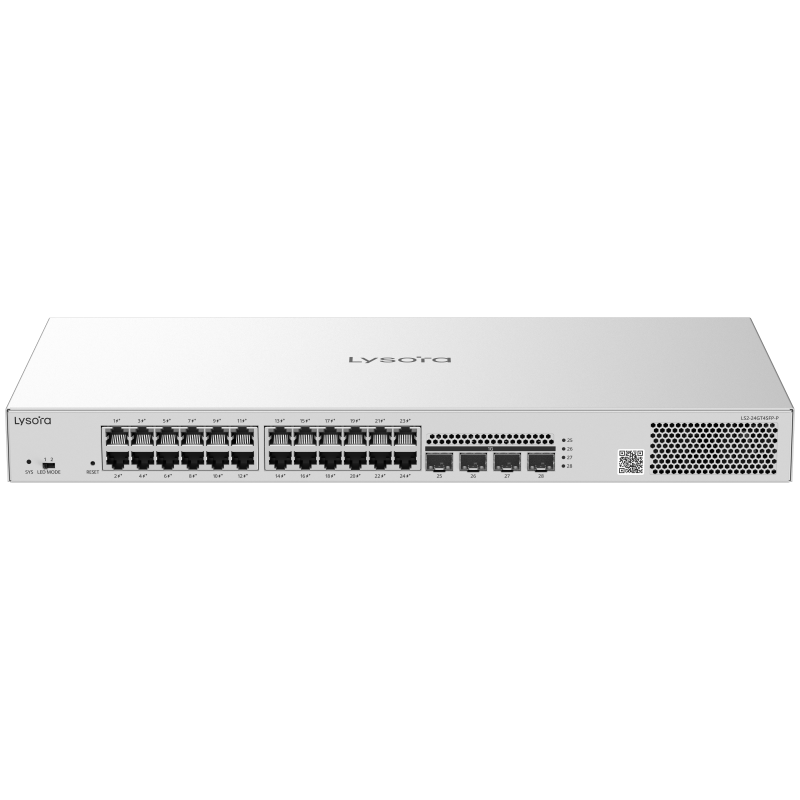

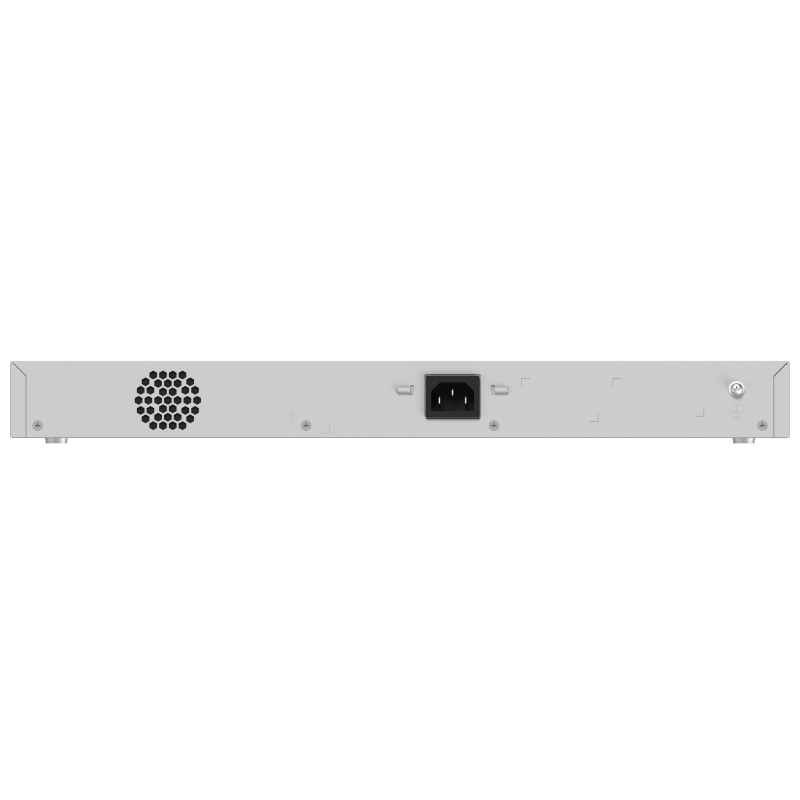

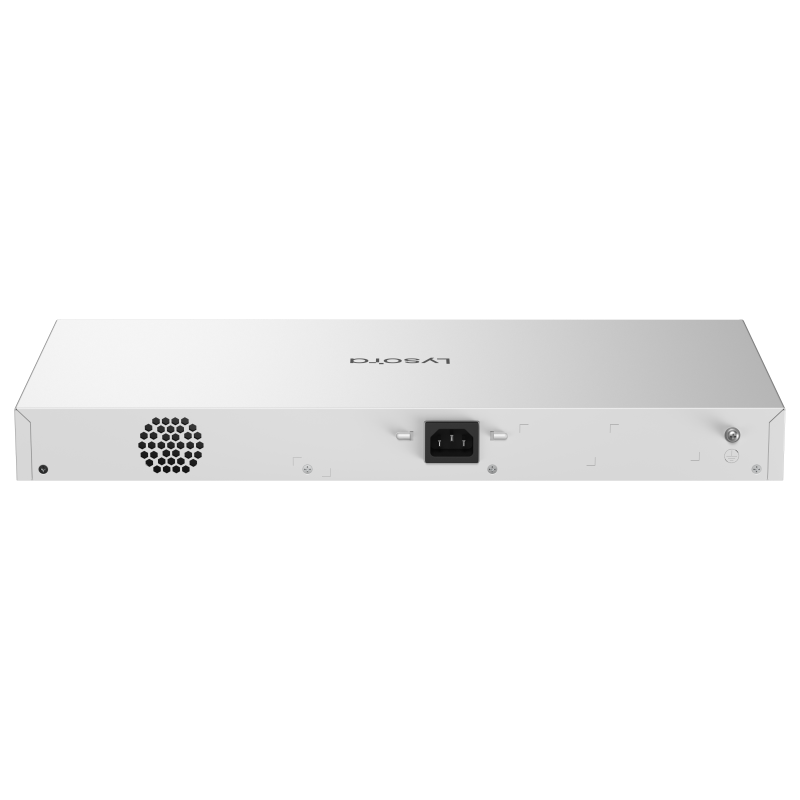

The LS2-24GT4SFP-P is a professional-grade 24-Port Layer 2 Managed Gigabit PoE Switch designed for enterprise-level networking and high-density surveillance infrastructures. It features 24 Gigabit RJ45 PoE+ ports and 4 dedicated SFP slots for high-speed fiber uplinks, supported by a robust 370W PoE power budget. Built into a 19-inch rack-mountable metal chassis, this switch offers comprehensive Layer 2 management features—including advanced VLAN support, LACP, and IGMP snooping—while providing industrial-grade surge protection and a massive 56 Gbps switching capacity to ensure seamless, secure data transmission in demanding environments.

Key Features

• High-Density PoE+ Power: Delivers 24 Gigabit ports with a 370W total PoE budget, capable of supporting up to 120 2MP or 60 4MP H.265 cameras.
• Dedicated Fiber Uplink Capacity: Equipped with 4 independent 1GE SFP slots to provide flexible, long-distance high-speed fiber connectivity without consuming copper ports.
• Comprehensive Layer 2 Management: Supports extensive networking protocols including 802.1Q VLAN (up to 4,094 IDs), STP/RSTP/MSTP, and LACP for optimized traffic control.
• Enterprise-Grade Performance: Boasts a 56 Gbps switching capacity and a 41.66 Mpps forwarding rate to ensure wire-speed performance for data-intensive applications.
• Intelligent PoE Reliability: Features an integrated PoE watchdog and camera detection, coupled with automated recovery and failure alerts for 24/7 uptime.
• Hardened Security & Protection: Comprehensive security suite including DHCP Snooping, IP-MAC-Port binding, ARP anti-spoofing, and ±6 kV surge protection for both service and power ports.
• Versatile Cloud Management: Offers flexible O&M through Web, App, and Cloud platforms, featuring Self-Organizing Network (SON) capabilities and intelligent fan speed adjustment.
