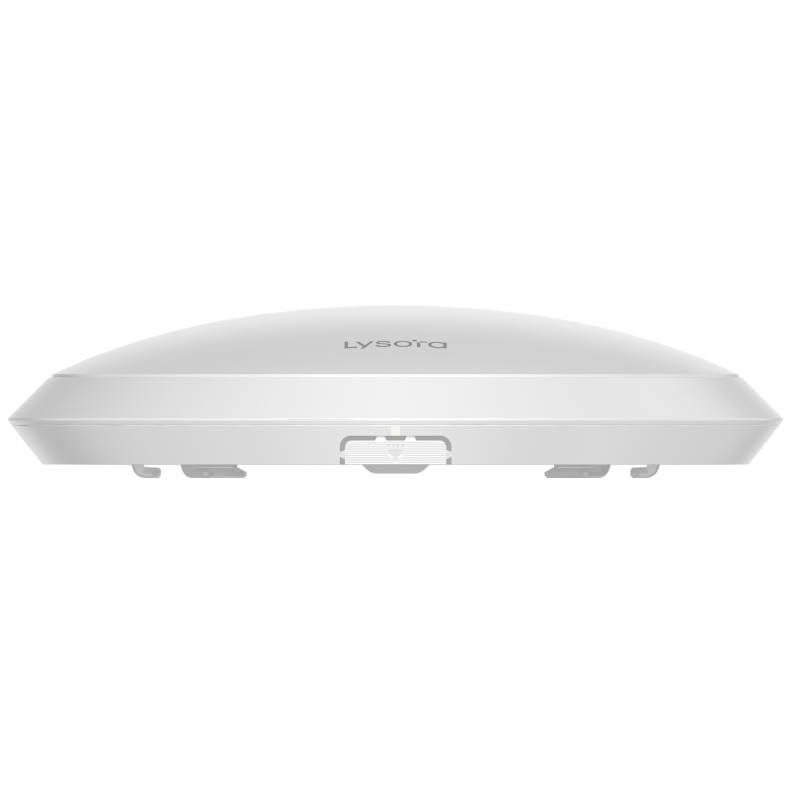

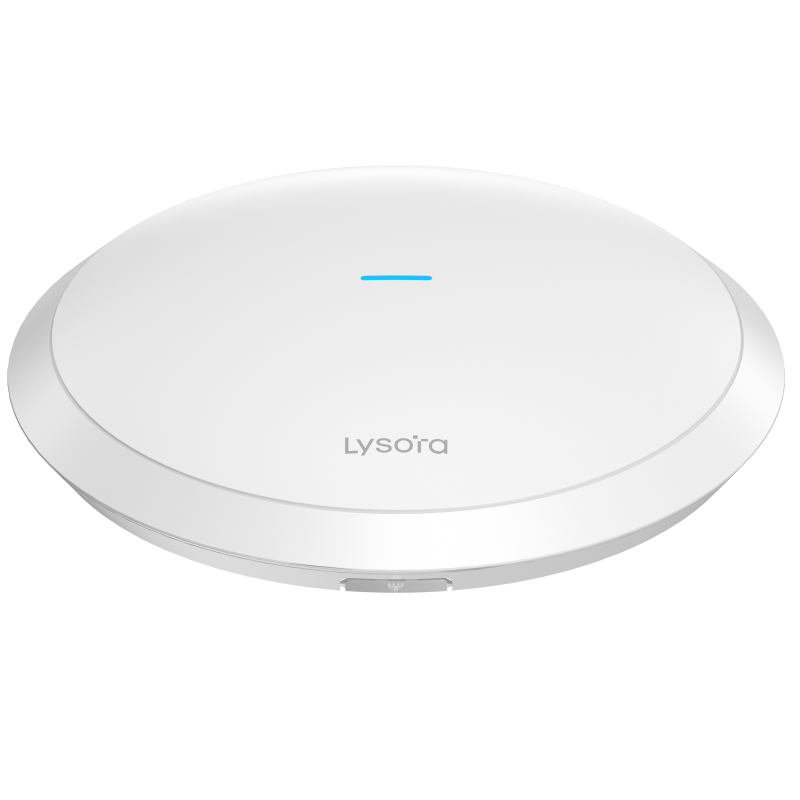

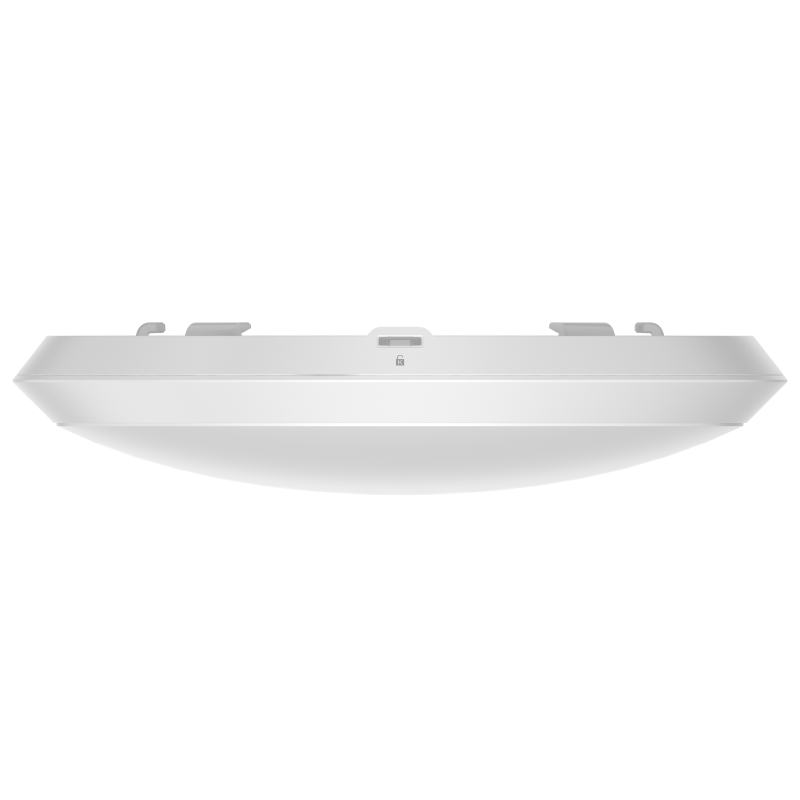

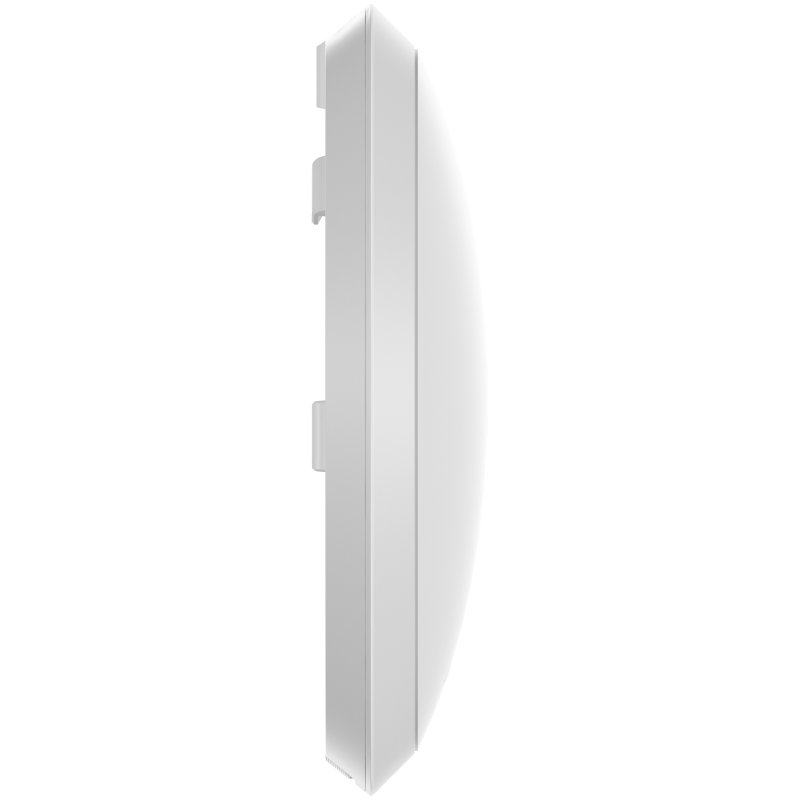

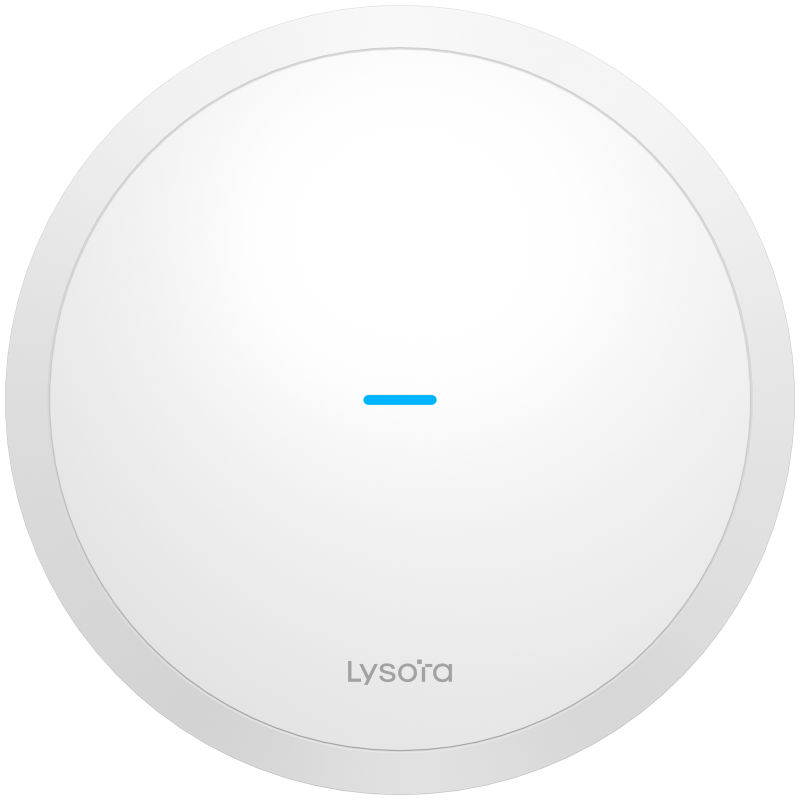

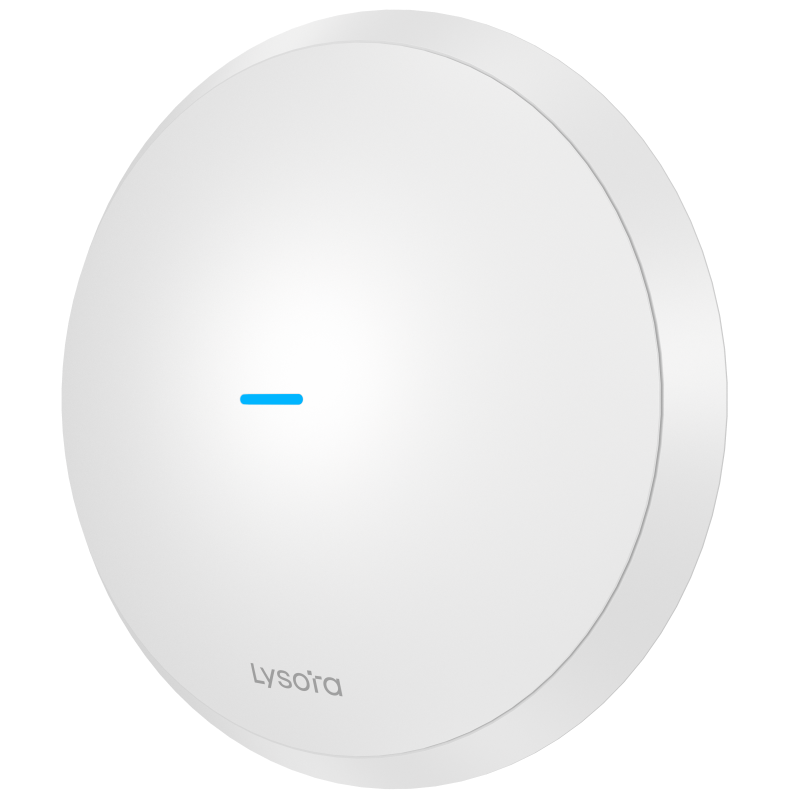

L6Lite Wi-Fi 6 AX1800 Dual-Band Ceiling Mount Access Point

SKU: L6Lite
  • Wi-Fi 6 AX1800 dual-band ceiling mount access point with built-in antennas
  • 1 x 1GE LAN port
  • dual-band 2.4 GHz/5 GHz
  • in compliance with 802.11ax and 802.11ac (Wave 1/Wave 2)
  • wireless data rate of up to 1774 Mbps
  • AP mode and routing mode
  • Layer 3 roaming
  • unified networking and management based on Lysora Cloud App
  • PoE In and local power supply (PoE injector and DC adapter purchased separately)
12 People watching this product now!

Fast Shipping

Carrier information

1k products

Payment methods

24/7 Support

Unlimited help desk

Description

Product Overview

The L6Lite is a high-performance Wi-Fi 6 AX1800 Dual-Band Ceiling Mount Access Point designed to deliver fast and reliable wireless connectivity for modern high-density environments. Supporting the latest 802.11ax standard, it provides a combined data rate of up to 1774 Mbps across the 2.4 GHz and 5 GHz bands. This versatile device supports both AP and Routing modes, features Layer 3 roaming for seamless transitions, and is managed via a unified cloud-based ecosystem. With its sleek, low-profile design and 125 ㎡ coverage area, the L6Lite is an ideal solution for businesses seeking scalable, secure, and easily managed wireless networking.

Key Features

  • High-Speed Wi-Fi 6 Performance: Utilizes AX1800 dual-band technology to deliver wireless speeds up to 1201 Mbps on 5 GHz and 573 Mbps on 2.4 GHz.
  • Efficient MU-MIMO & OFDMA: Features 2 x 2 MU-MIMO on both bands and advanced modulation (up to 1024-QAM) to support over 110 concurrent clients efficiently.
  • Seamless Roaming Technology: Fully supports 802.11k/v/r protocols and Layer 2/Layer 3 roaming, ensuring uninterrupted connectivity for mobile users.
  • Versatile Operating Modes: Supports both AP Mode and Router Mode with integrated NAT, DHCP server, and PPPoE client capabilities.
  • Unified Cloud Management: Easily configure and monitor up to 300 APs through a self-organizing network (SON) via the Lysora Cloud App or Web interface.
  • Advanced Wireless Security: Built-in protection with WPA3-SAE, 802.1X authentication, and captive portal support for secure guest access.
  • Flexible Power & Installation: Supports both PoE and 12V DC power methods with included ceiling and wall mounting hardware for easy deployment.

Download

Product Manual

No related firmware found.
Additional information
Wi-Fi Standards

IEEE 802.11 a/b/g/n/ac/ax

Spatial Streams

4

Networking Interface

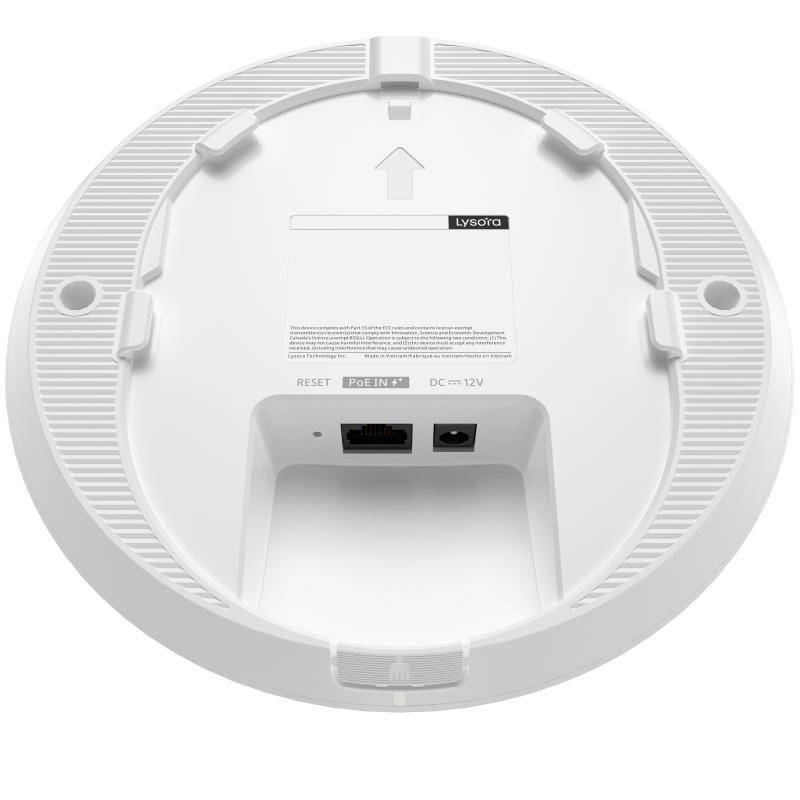

1 x 1 GE RJ45 port

Wi-Fi Protocols

2.4 GHz: IEEE 802.11 b/g/n/ax 5 GHz: IEEE 802.11 a/n/ac/ax

Max. Transmit Power

2.4 GHz: 25.7 dBm 5 GHz: 24 dBm

Power Consumption

≤ 12.95 W

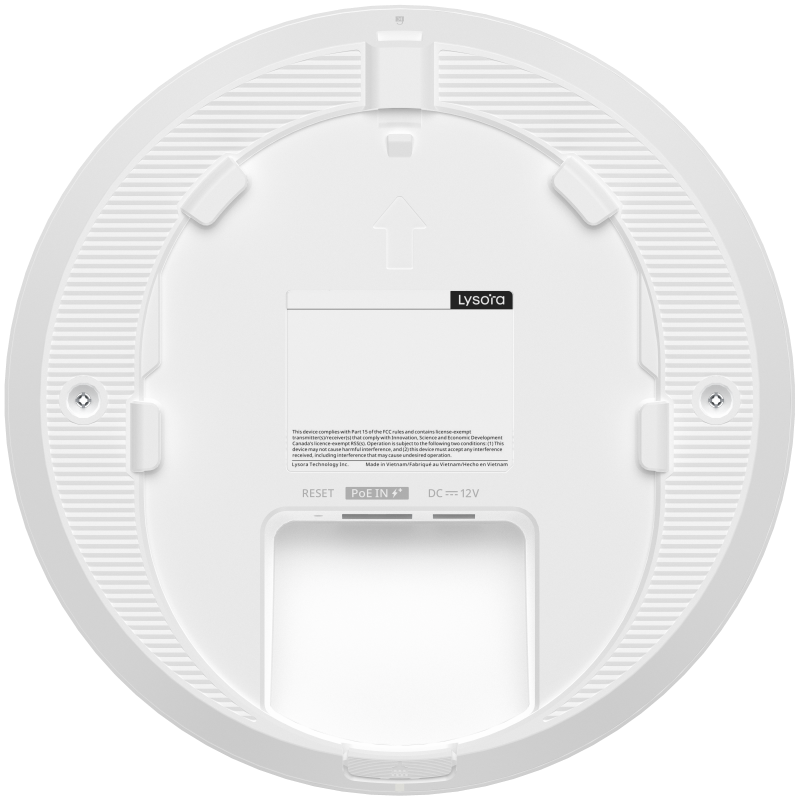

Power Method

PoE DC (12 V

,

1.5A)

,

DC Power Adapter Is Not Included

Weather Resistance

IP41 Surge Protection: ±2 kV

Working Mode

Router Mode; AP Mode

Coverage Level

Basic Coverage

NDAA Complain

Yes

Mounting

Ceiling Mount

,

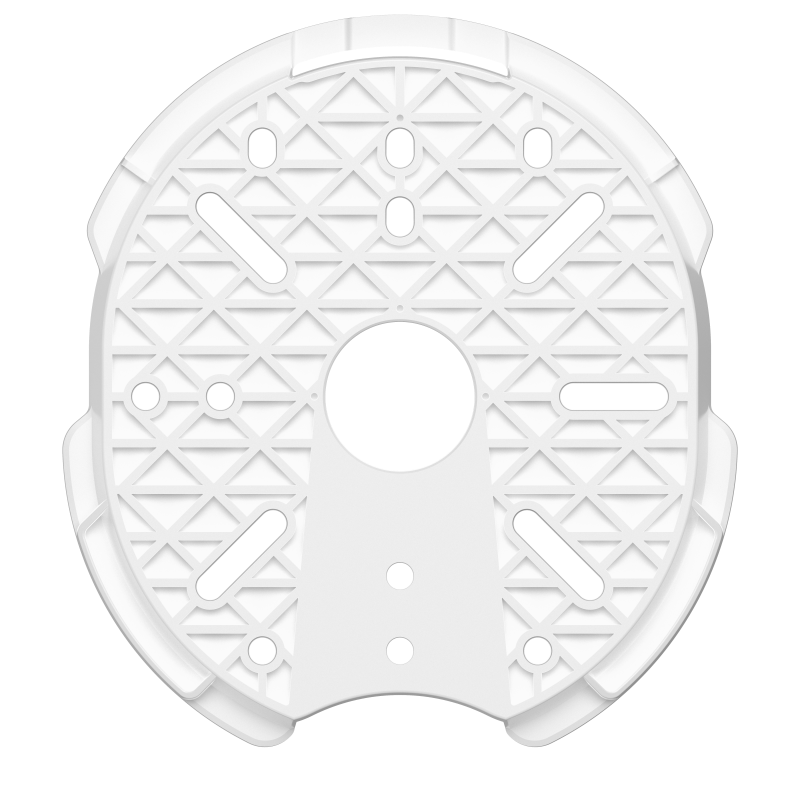

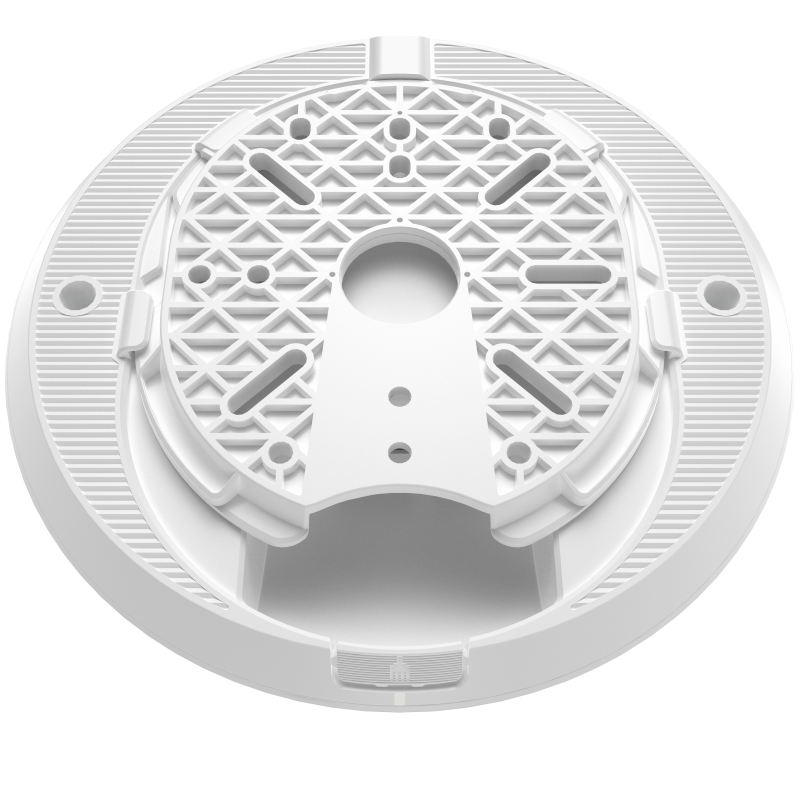

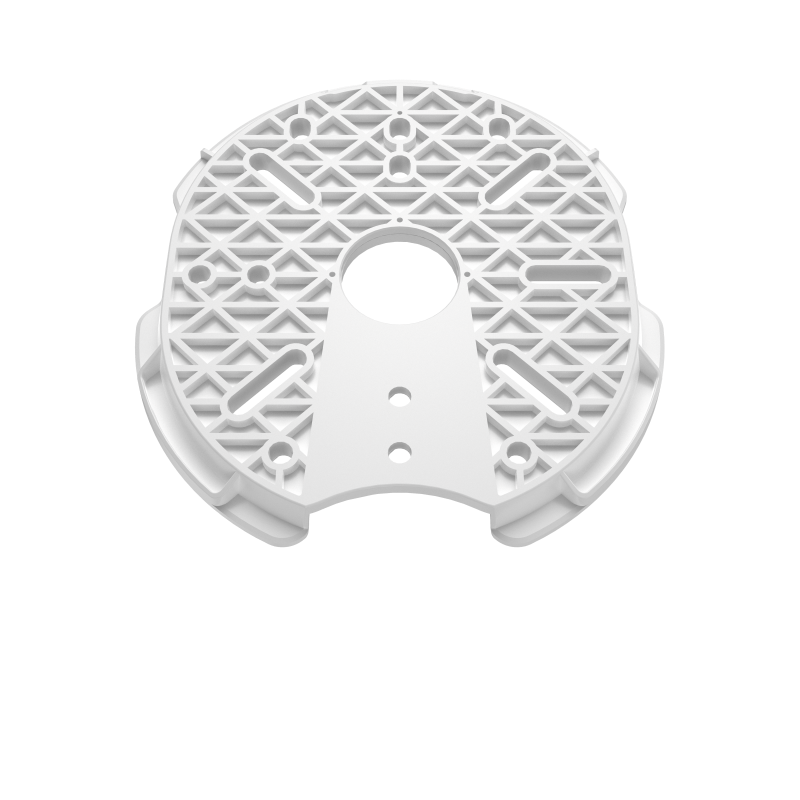

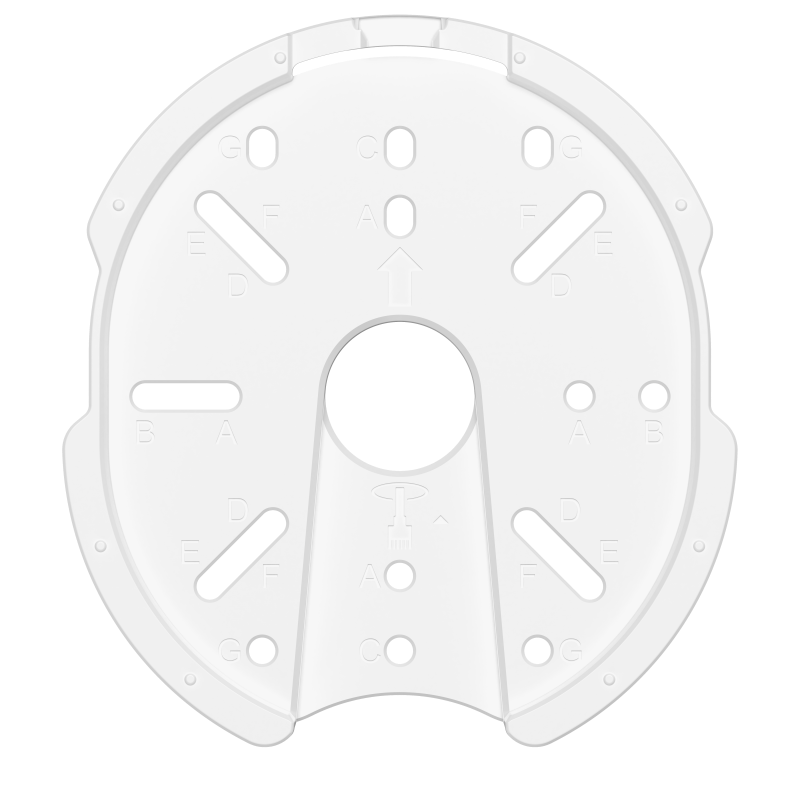

Wall-mounted (Mounts Included)

Dimensions

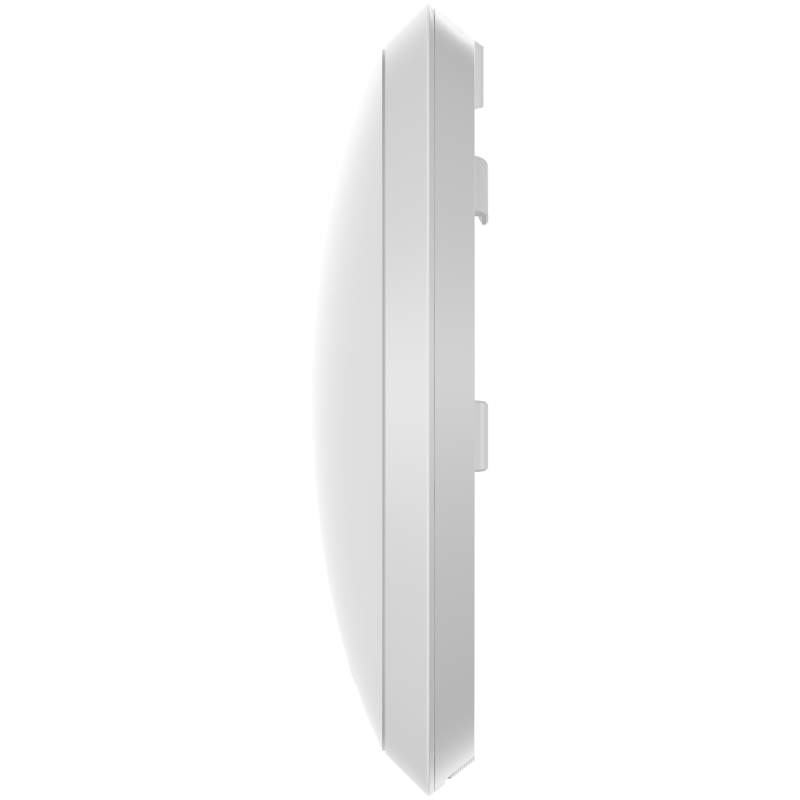

Ø175mm x 39mm (Ø6.89 in. x 1.54 in.)

Weight

≤ 0.4 kg (0.88 lbs)
