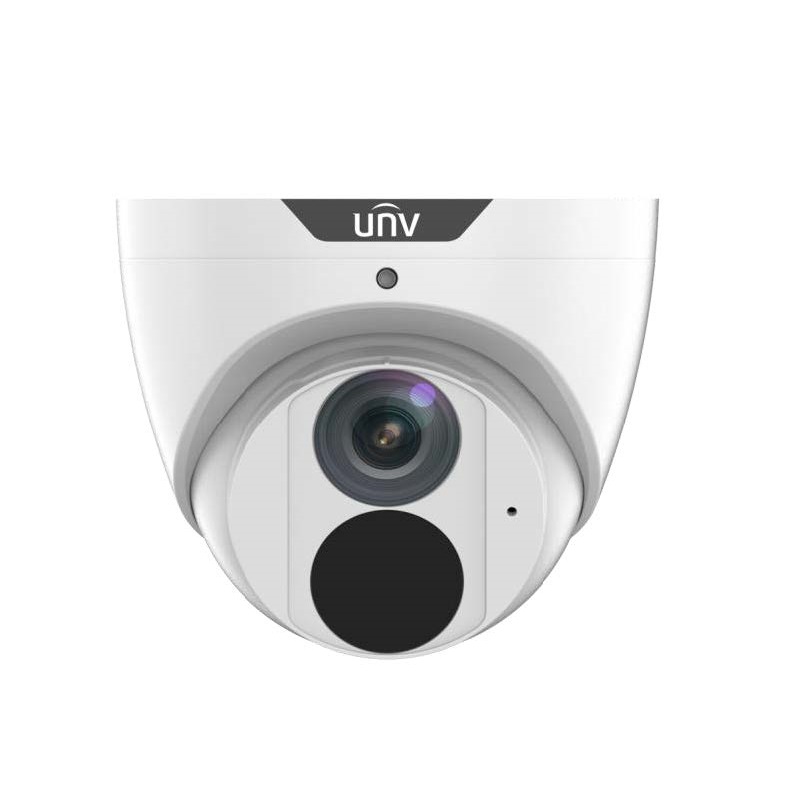

IPC3618SR3-ADF28(40)KM-G 4K HD IR Fixed Eyeball Network Camera

Name: IPC3618SR3-ADF28(40)KM-G 4K HD IR Fixed Eyeball Network Camera
Brand: UNV
SKU: IPC3618SR3-ADF28(40)KM-G

SKU: IPC3618SR3-ADF28(40)KM-G

4K HD IR Fixed Eyeball Network Camera

18 People watching this product now!

Carrier information

Payment methods

Unlimited help desk

High quality image with 8MP, 1/2.7″CMOS sensor
8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
Ultra 265, H.265, H.264, MJPEG
LightHunter technology ensures high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis

Product Manual

No related firmware found.

Additional information

Image Sensor	1/2.7" Progressive Scan CMOS
Minimum Illumination	Support LightHunter: Colour: 0.005Lux ( F1.6 , AGC ON) 0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter Speed	1s to 1/100000s
Adjustment angle	Pan: 0° to 360° , Tilt: 0° to 80° , Rotate: 0° to 360°
WDR	120 dB
Lens Size	2.8mm , 4mm
Lens Mount	M12
IR Range	Up to 30 m
Wavelength	850nm
Protection	IP67
Camera Style	Eyeball
Video Compression	Ultra 265, H.265, H.264, MJPEG
Audio	Built-in Mic
Lens Type	Fixed Lens
Camera Resolutions	8 MP
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD , Up to 256GB
Network Storage	ANR , NAS(NFS)
Network	1 * RJ45 10M/100M Base-TX Ethernet
Power	DC 12V±25% , PoE (IEEE 802.3af) Power consumption: Max 4.5W
Power Interface	Ø 5.5mm coaxial power plug
Dimensions	Φ118 x 95mm (Φ4.6” x 3.8”)
Weight	0.36kg (0.79lb)
Material	Metal
